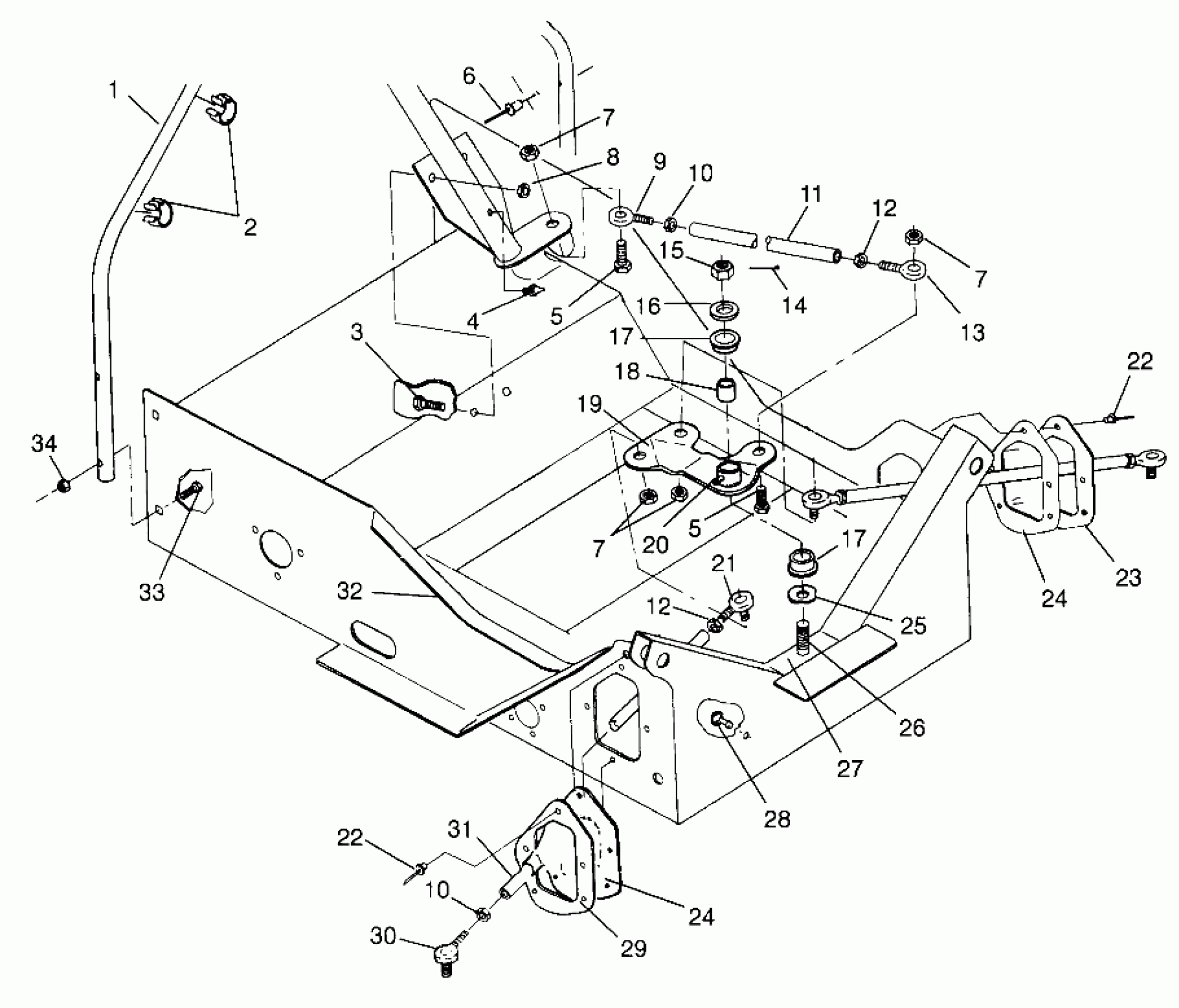

Polaris XLT SP - 0976676 STEERING XLT SP 0976676 (4937753775B005) Diagram
#
Description
Price
1
HOOP,STEERING
1012380-067
Unavailable
2
CLIP(10)
7080278
$2.63
3
BOLT(10) Substituted by 7512377
7512394
Unavailable
4
FITTING-LUBRICATION 1/4-28
7080424
$4.79
5
BOLT(10)
7512404
$3.99
5
BOLT(10)
7512404
$3.99
6
RIVET-3/16-.090-.290
7661637
$1.49
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
9
ROD END, LH.
7060164
$48.56
10
NUT
7542424
$1.49
10
NUT
7542424
$1.49
11
ROD-DRAG LINK
5332712
Unavailable
12
NUT HEX(10)
7542401
$2.39
12
NUT HEX(10)
7542401
$2.39
13
ROD END, RH.
7060165
$48.56
14
PIN COTTER(10)
7661203
$1.49
15
NUT FLEX,(10)
7542703
Unavailable
16
WASHER(10)
7555721
$1.49
17
BUSHING
3563907
$3.99
17
BUSHING
3563907
$3.99
18
BUSHING
5010340
Unavailable
19
STEERING ASM,CTR. (Incl. 17, 20)
1822266
$38.49
20
ZERK,FITTING,THREADED(10)
7080433
$1.49
21
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
22
RIVET(50)
7621340
$0.56
22
RIVET(50)
7621340
$0.56
23
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
24
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
24
BOOT,TIEROD,RH,XTRA
5411123
$20.22
24
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
24
BOOT,TIEROD,RH,XTRA
5411123
$20.22
25
WASHER,WAVE(10)
7555735
$3.99
26
BOLT(10)
7512682
Unavailable
27
BLOCK,STRG,(CAST)
5630563
$32.37
28
CLIP, PLASTIC(10)
4020139
$4.79
29
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
30
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
31
ROD,TIE,BLK.
5020859-067
Unavailable
32
TRIM,EDGE,6FT,BLACK [No Longer Available] (6 Ft.)
5521131
Unavailable
33
BOLT-CARRIAGE(10)
7512275
$3.99
34
NUT-LOCK(10)
7542122
$1.49
