REAR TORQUE ARM XLT SP 0976676 (4937753775B013)

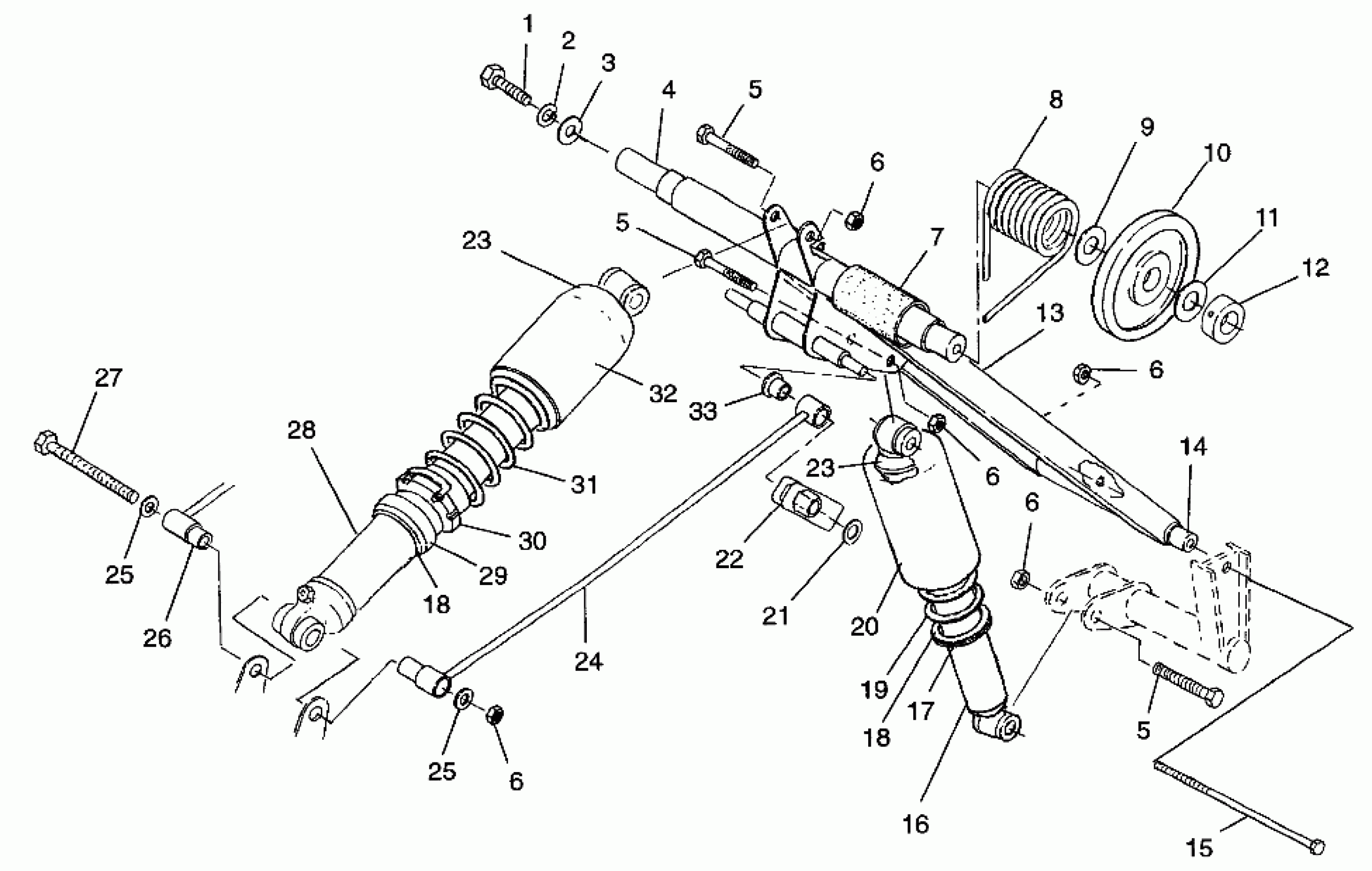

Polaris XLT SP - 0976676 REAR TORQUE ARM XLT SP 0976676 (4937753775B013) Diagram
#
1
BOLT(10)
7512589
$1.59
2
WASHER-LOCK, 7/16-B
7552614
$1.59
3
WASHER ,(10)
7555984
$2.39
4
SHAFT,RTA,UPPER
5020814
Unavailable
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
SLEEVE,TORSION SPRING
5431923
$6.39
8
SPRING,RH,TORSION,BLK. (.406) Dia.
7041395-067
Unavailable
8
SPRING,LH,TORS,.421,BLK. (.421) Dia. (Firm) (Optional)
7041406-067
$95.19
8
SPRING,RH,TORS,.421,BLK. (.421) Dia. (Firm) (Optional)
7041407-067
Unavailable
8
SPRING,LH,TORSION,BLK. (.406) Dia.
7041394-067
Unavailable
9
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
10
Wheel, Carrier
1543023
Unavailable
11
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
12
SCREW-SET(10)
7512257
$3.99
12
COLLAR-BRG. LOCK
5010155
Unavailable
13
ARM,RR TORQUE(XTRA 12),BLK
1541029-067
Unavailable
14
Shaft
5333536
Unavailable
15
Screw
7517232
$19.99
16
Fox Shock, Gas, Rear Track (See Pg., for Details)
-------
Unavailable
17
RING, RETAINING(10)
7710424
$0.63
18
RETAINER, SPRING BODY
5020617
Unavailable
18
RETAINER, SPRING BODY
5020617
Unavailable
19
SPRING,COMPRESSION,BLK.
7041561-067
$133.99
20
SHIELD-SPRING
5430671
$24.27
21
CLIP-PUSH ON
7080394
$2.39
22
ROLLER,SPRING,ADJ.
5431909
$5.75
23
RETAINER,SPRING,SLOTTED
5020618
$24.99
23
RETAINER,SPRING,SLOTTED
5020618
$24.99
24
ROD, SHOCK
1541014-067
$92.99
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333028
$1.59
27
BOLT(10)
7515514
$7.19
28
Fox Shock, Gas, Front Track (See Pg. for Details)
-------
Unavailable
29
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
30
RING,SPRING PRELOAD ADJ.
5431734
$52.60
31
SPRING,R.SUSP,BLK,LXC
7041351-067
Unavailable
32
SHIELD,SPRING
5410874
$20.22
33
BUSHING, NYLON
3573910
Unavailable
