ENGINE MOUNTING - 0976676 (4937753775C003)

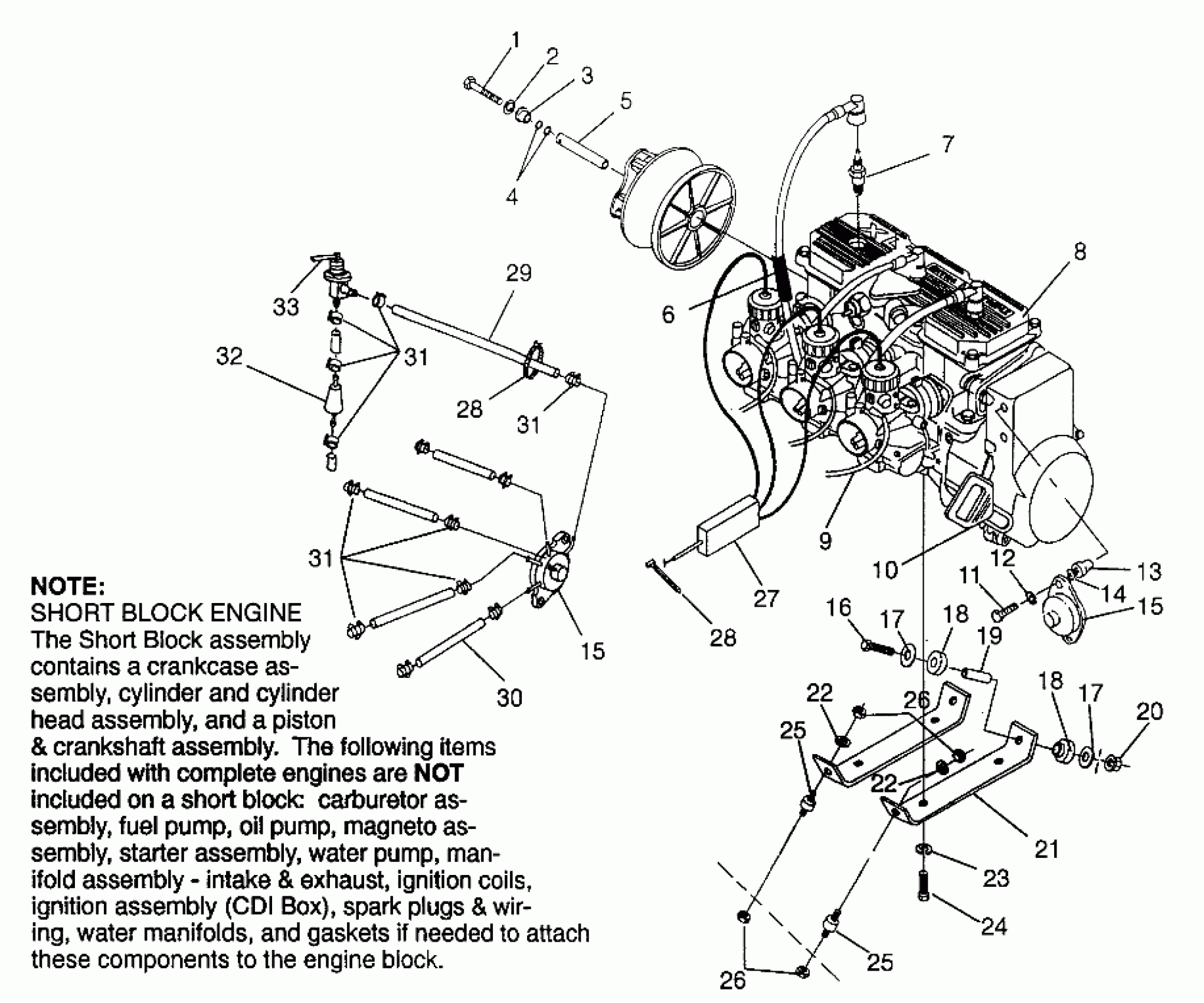

Polaris XLT SP - 0976676 ENGINE MOUNTING - 0976676 (4937753775C003) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
ENG.(S.B.)EC58PL-12 [Cannot Purchase as Assembly] (EC58PL12) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Pr
3085391
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
11
SCREW(10)
7512222
$2.39
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
NUT-WELL(10)
7541923
$5.59
14
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
15
Fuel Pump (See Pg. C14, Ref. 1)
-------
Unavailable
15
Fuel Pump (See Pg. C14, Ref. 1)
-------
Unavailable
16
SCREW(10)
7512530
$5.59
17
WASHER(10)
7555740
$1.59
17
WASHER(10)
7555740
$1.59
18
MOUNT, ENGINE
5410390
Unavailable
18
MOUNT, ENGINE
5410390
Unavailable
19
SPACER, (MTR.MT.)
5332778
Unavailable
20
NUT,FLANGE(10)
7542522
$5.59
21
PLATE,LH,MTR.MT.
5240801
Unavailable
21
PLATE,RH,MTR.MT.
5240802
$36.51
22
WASHER(10) Substituted by 7555806
7555720
$0.79
22
WASHER(10) Substituted by 7555806
7555720
$0.79
23
WASHER LOCK(10)
7553101
$3.99
24
BOLT(10)
7512575
Unavailable
25
MOUNT,ENGINE
3110062
Unavailable
25
MOUNT,ENGINE
3110062
Unavailable
26
NUT,FLEXLOCK,(10)
7547008
$6.39
26
NUT,FLEXLOCK,(10)
7547008
$6.39
27
CABLE,THROTTLE,W/OIL
7080565
Unavailable
28
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
29
FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250
8450046-1525
Unavailable
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
32
FILTER FUEL,(10)
2530008
$4.84
33
VALVE,FUEL SHUT-OFF
7052039
Unavailable
