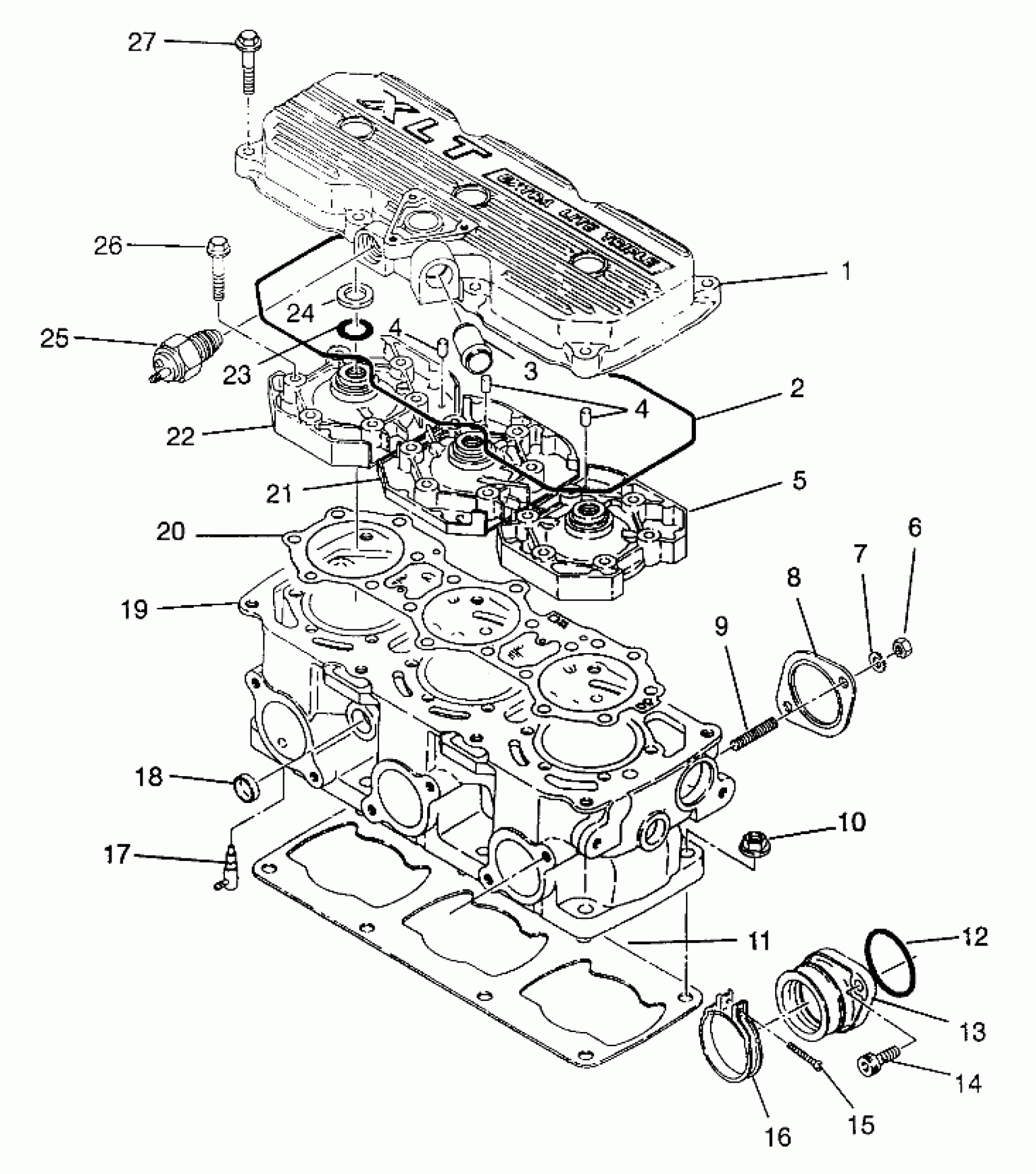

Polaris XLT SP - 0976676 CYLINDER - 0976676 (4937753775C010) Diagram
#
Description
Price
1
COVER,HEAD (Incl. 3)
3085415
Unavailable
2
O-RING, (HEADCOVER) (Head Cover)
3084434
Unavailable
3
Pipe, Water
3083452
Unavailable
4
PIN, DOWEL
3084721
$4.79
4
PIN, DOWEL
3084721
$4.79
5
HEAD,CYL.#1,MAG. (MAG)
3085417
Unavailable
6
NUT(10)
3080285
Unavailable
7
WASHER LOCK ,(10)
3080530
$3.19
8
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust), Non-Asbestos
3084439
Unavailable
9
STUD,(10)
3085326
Unavailable
10
NUT-FLANGE(10)
3082911
$1.99
11
GASKET, CYLINDER (Cylinder)
3084593
Unavailable
12
O-RING Substituted by 3085619
3084272
Unavailable
13
ADAPTER, CARB. (Incl. 12)
3084673
Unavailable
14
Bolt, Allen
3081330
$3.99
15
SCREW,(10)
3081497
$2.39
16
BAND ASM. (Incl. 15)
3083166
$19.84
17
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
18
PLUG
3084428
$3.51
19
CYLINDER (Incl. 9,18)
3085414
Unavailable
20
GASKET #1,HEAD Substituted by 3085613 (.4 mm) (Std.)
3085003
Unavailable
21
HEAD,CYL.#2,CTR. (Cen)
3085418
Unavailable
22
HEAD,CYL.#3,PTO (PTO)
3085419
$95.13
23
O RING
3085192
Unavailable
24
SPACER
3084722
Unavailable
25
SWITCH,THERMAL,IOS
3084284
Unavailable
26
BOLT, FLANGE ,(10)
3084435
Unavailable
27
Bolt, Flange
3084437
Unavailable
