Description

Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUIDE, RECOIL

5431385

$10.51

3

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

4

CONSOLE

5222756-067

Unavailable

5

KIT,CHOKE CONTROL

2200189

$20.22

6

CABLE, CHOKE

7080283

$109.99

7

SW,HEATER,HI-LOW

4110077

Unavailable

7

SW,HEATER,HI-LOW

4110077

Unavailable

8

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

9

HOUSING

4020133

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS,MAIN WIRE,(XLT)

2460430

$126.98

12

Housing

4020153

$1.49

13

NUT(10)

7541925

$1.49

14

REGULATOR,14 VAC.LR-9

4060122

Unavailable

15

SPACER,REGULATOR

5211573

Unavailable

16

BOLT(10)

7512031

$2.23

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

19

NUT, IGN.SWITCH(10)

7543101

Unavailable

20

KIT,IGN. SWITCH (Incl. 18)

2200357

Unavailable

21

Nut

7080229

$19.99

22

WASHER-LOCK(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code

7571610

$3.99

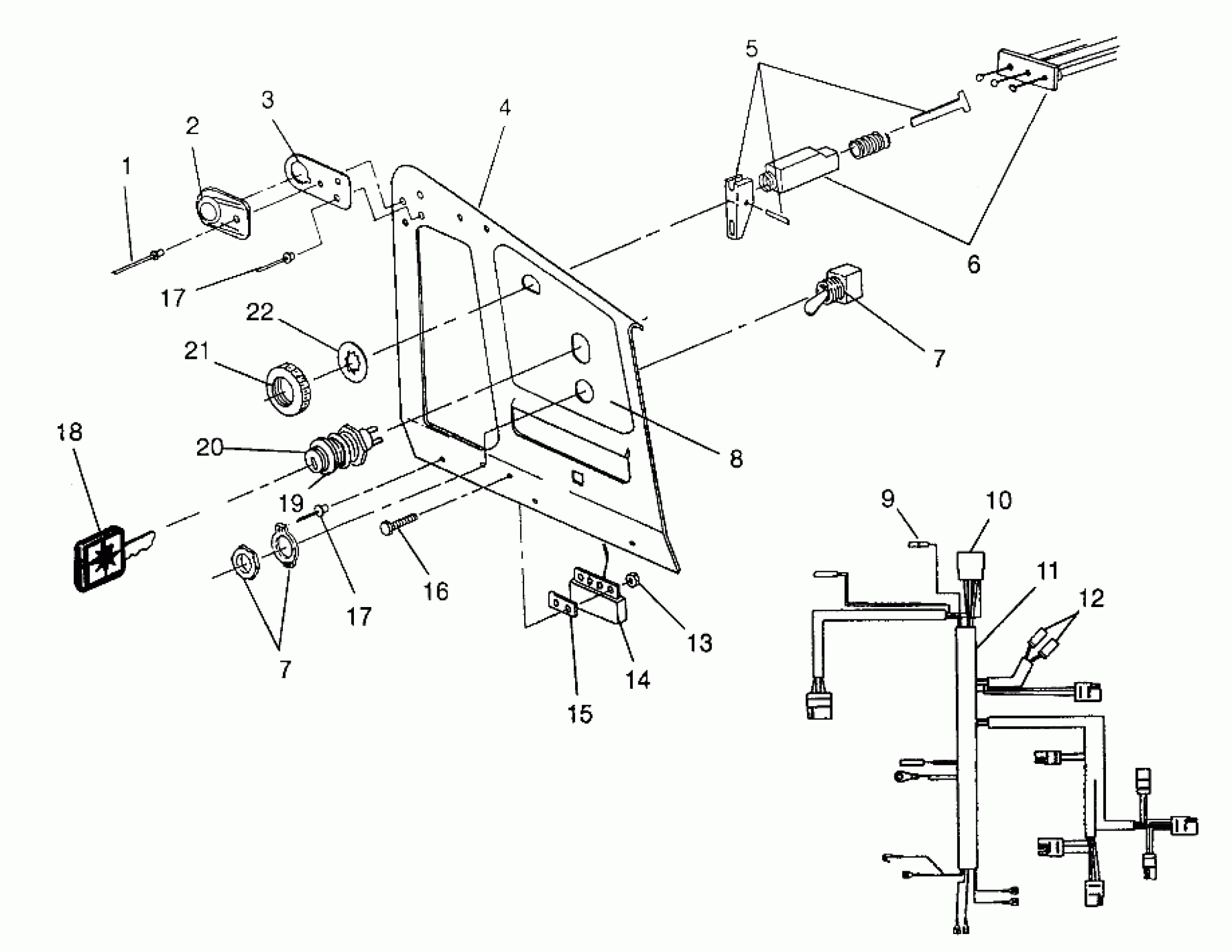

Polaris XLT SP - 0976676 CONSOLE XLT SP 0976676 (4937753775A014) Diagram

RIVET(50) Substituted by 7661130

GUIDE, RECOIL

BRKT,ROPE GUIDE,BLK.

CONSOLE

KIT,CHOKE CONTROL

CABLE, CHOKE

SW,HEATER,HI-LOW

SW,HEATER,HI-LOW

DECAL, CONSOLE [No Longer Available]

HOUSING

Housing w/Receptacle

HARNESS,MAIN WIRE,(XLT)

Housing

NUT(10)

REGULATOR,14 VAC.LR-9

SPACER,REGULATOR

BOLT(10)

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

NUT, IGN.SWITCH(10)

KIT,IGN. SWITCH (Incl. 18)

Nut

WASHER-LOCK(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code
