TUNNEL ASSEMBLY XLT SP 0956756, XLT SP (48" STANCE) 0956456, and EUROPEAN (4930763076A006)

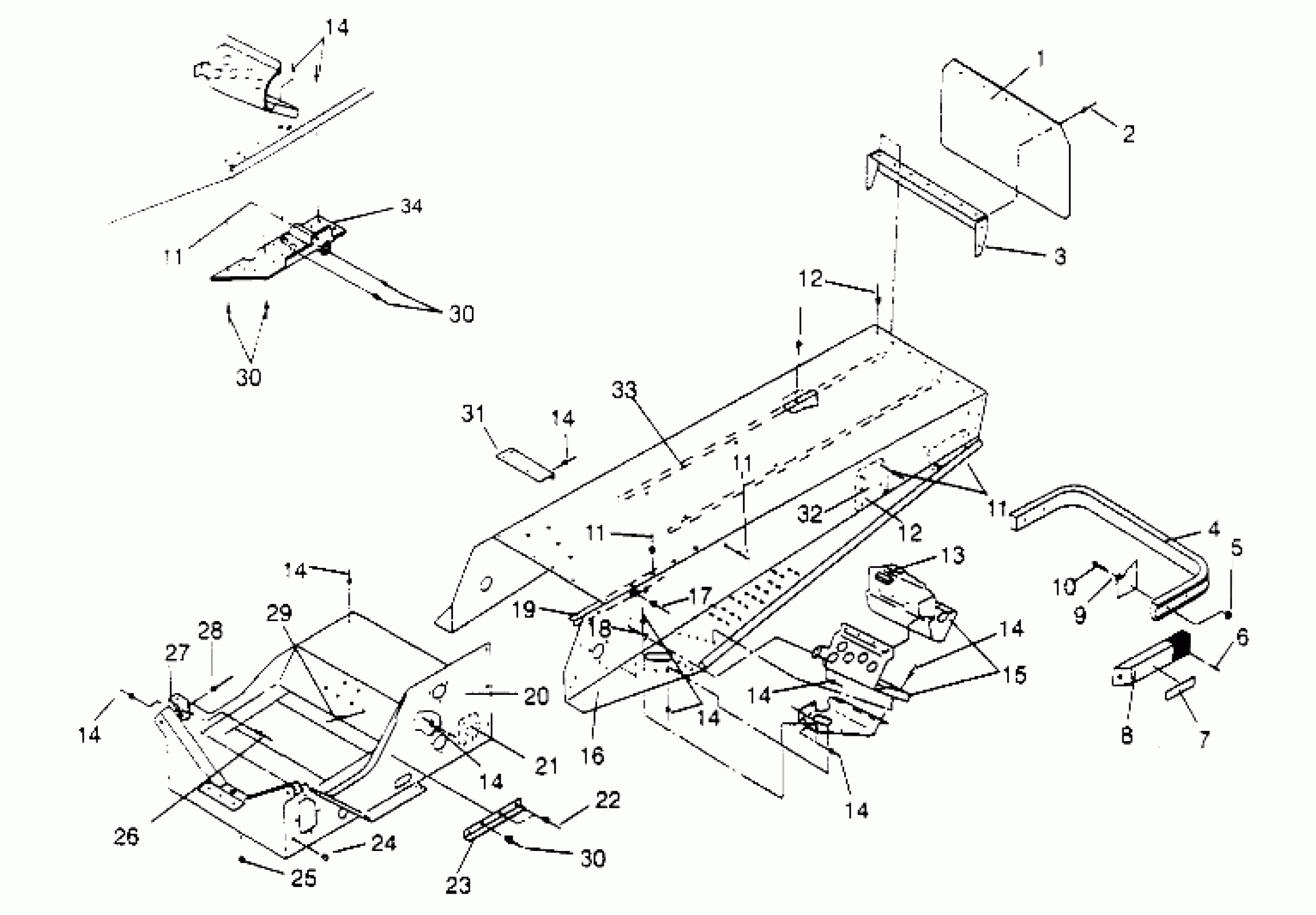

Polaris XLT SP - 0956156 TUNNEL ASSEMBLY XLT SP 0956756, XLT SP (48" STANCE) 0956456, and EUROPEAN (4930763076A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
4
BUMPER,REAR,BLK.
5224334-067
Unavailable
5
NUT-LOCK(10)
7542122
$1.49
6
SCREW(10)
7511863
$1.99
7
REFLECTOR RED
2670070
$9.91
8
CAP, BUMPER, BLK.
5430930-070
Unavailable
9
WASHER(10)
7558301
$1.49
10
BOLT(10)
7512240
$3.99
11
RIVET,(50)
7661825
$1.49
11
RIVET,(50)
7661825
$1.49
11
RIVET,(50)
7661825
$1.49
11
RIVET,(50)
7661825
$1.49
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
13
EXTRUSION,CLUTCHGUARD
5521238
$6.46
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
TUNNEL ASM,LIQ.BLK. Substituted by 1012383 (Incl. 3,19,32 & Cooling Ext.)
1012262
Unavailable
17
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
18
SNAP-MALE(10)
7080227
Unavailable
19
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
20
BULKHEAD ASM,BLK.
1012261-067
$524.99
21
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
21
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
22
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
23
GUARD,ADAPTER,DRIVE
5240441
Unavailable
24
PLUG, HOLE(10)
7080512
$2.63
25
PLUG-HOLE
7080398
$4.84
26
Rivet (See Pg. A30, Ref. 13)
-------
Unavailable
27
Weld., Muffler Support (See pg. A30, Ref. 14)
-------
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET(50)
7621470
$3.17
30
RIVET-3/16-.090-.290
7661637
$1.49
30
RIVET-3/16-.090-.290
7661637
$1.49
30
RIVET-3/16-.090-.290
7661637
$1.49
31
BRKT, TOOL BOX
5220973
Unavailable
32
MT,LH,REAR SUSP,BLK Substituted by 1012431-067
1012265-067
$18.89
32
MT,RH,REAR SUSP,BLK Substituted by 1012432-067
1012266-067
Unavailable
33
MOUNT,WEAR STRIP
5131009
Unavailable
34
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
34
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
