REAR TORQUE ARM ASSEMBLY - E956756 (4930763076B013)

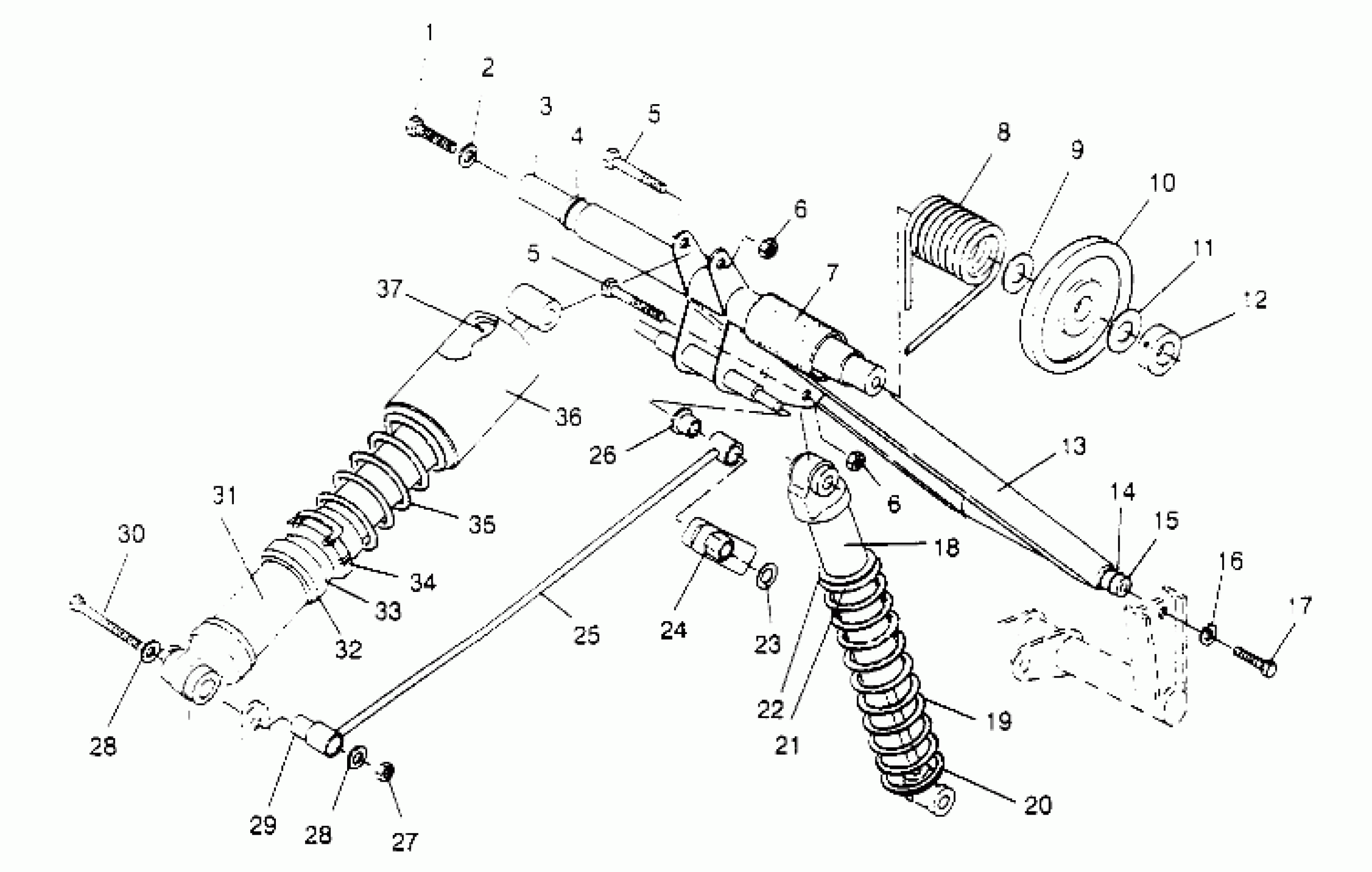

Polaris XLT SP - 0956156 REAR TORQUE ARM ASSEMBLY - E956756 (4930763076B013) Diagram
#
1
BOLT(10)
7512589
$1.59
2
WASHER-LOCK, 7/16-B
7552614
$1.59
3
SHAFT,UP,R.TORQUE ARM
5020782
$59.03
4
O-RING
5410952
Unavailable
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
SLEEVE,TORSION SPRING
5431923
$6.39
8
SPRING,RH,TORSION,BLK.
7041395-067
Unavailable
8
SPRING,LH,TORS,.421,BLK. (Firm)
7041406-067
$95.19
8
SPRING,RH,TORS,.421,BLK. (Firm)
7041407-067
Unavailable
8
SPRING,LH,TORSION,BLK.
7041394-067
Unavailable
9
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
10
Wheel, Carrier
1543023
Unavailable
11
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
12
SCREW-SET(10)
7512257
$3.99
12
COLLAR-BRG. LOCK
5010155
Unavailable
13
ARM,R.TORQUE,BLK. Substituted by 1541029-067
1540887-067
Unavailable
14
O-RING
5410953
Unavailable
15
SHAFT,R.TORQUE ARM,LOW.
5020784
$21.59
16
WASHER(10)
7552603
$1.49
17
BOLT(10)
7515526
$1.19
18
SHOCK,GAS,R.TRACK Substituted by 2200683 (See Pg. C7, for Details)
7041387
Unavailable
19
SPRING,BLACK,COMP.
7041253-067
$95.22
20
RETAINER,SPRING,SLOTTED
5020618
$24.99
21
RETAINER, SPRING BODY
5020617
Unavailable
22
RING, RETAINING(10)
7710424
$0.63
23
CLIP-PUSH ON
7080394
$2.39
24
ROLLER,SPRING,ADJ.
5431909
$5.75
25
ROD, SHOCK (See Footnote) NOTE: When ordering Shock Rods please measure rod diameter If rod measures 5/16 please order Kit #2200623. Kit Includes 2 shock rods 3/8" Dia., 2 Bushings, 2 Bolts, 2 Nut
1541014-067
$92.99
26
BUSHING, NYLON
3573910
Unavailable
27
NUT LOCK(10)
7542403
$3.99
28
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
28
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
29
BUSHING,PIVOT TUBE
5020561
$1.59
30
BOLT(10)
7515496
$9.59
31
SHOCK,GAS,FRT.TRACK (See Pg. C6 for Details)
7041386
Unavailable
32
RING, RETAINING(10)
7710424
$0.63
33
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
34
DESC NOT_AVAILABLE
5431374
Unavailable
35
SPRING,R.SUSP,BLK,LXC
7041351-067
Unavailable
36
SHIELD,SPRING
5410874
$20.22
37
RETAINER,SPRING,SLOTTED
5020618
$24.99
