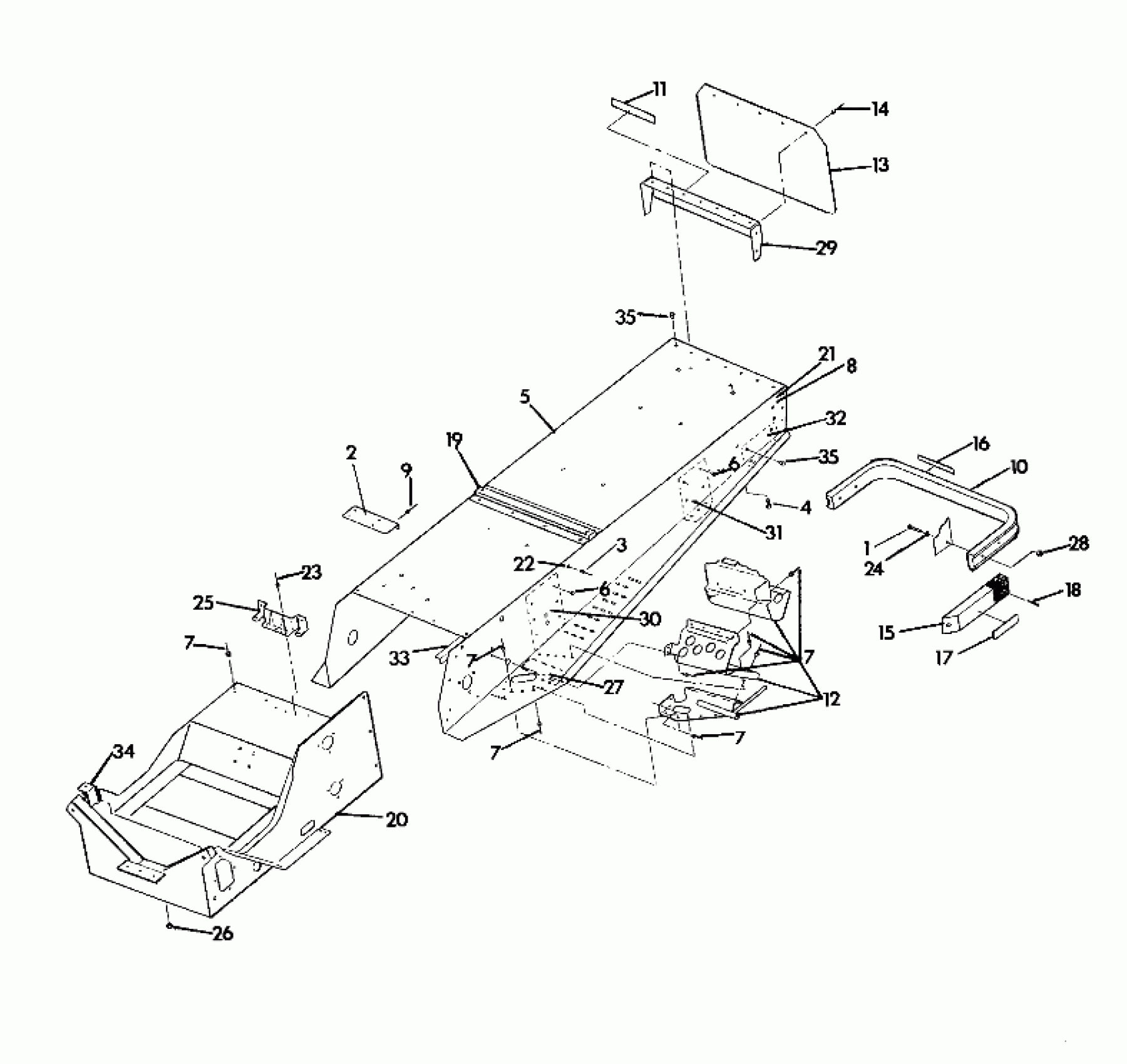

Polaris XLT SP - 0920767 TUNNEL ASSEMBLY 500 XLT (4921662166001A) Diagram
#
1
BOLT(10)
7512240
$3.99
2
BRKT, TOOL BOX
5220973
Unavailable
3
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
4
BOLT(10)
7512103
$3.19
5
TUNNEL ASM,(50 HP) [No Longer Available]
1011843
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
DECAL,LH TUNNEL'500SKS' [No Longer Available]
7073183
Unavailable
8
DECAL,RH TUNNEL'500SKS' [No Longer Available]
7073184
Unavailable
9
RIVET Substituted by 7661638
7661625
$1.19
10
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
11
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
12
FOOTREST ASM,LH
2200250
Unavailable
12
FOOTREST ASM,RH
2200254
Unavailable
13
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
14
DESC NOT_AVAILABLE
7621415
Unavailable
15
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
16
DECAL,(24'')R.BUMP'500/SKS' [No Longer Available]
7073236
Unavailable
17
REFLECTOR RED
2670070
$9.91
18
SCREW(10)
7511863
$1.99
19
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
20
BULKHEAD,(500 HD)
1011846-067
$436.51
21
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
22
SNAP-MALE(10)
7080227
Unavailable
23
RIVET(50)
7621301
$3.99
24
WASHER(10)
7558301
$1.49
25
BRACKET, GAS TANK, BLACK
1011733-067
$19.73
26
PLUG, HOLE(10)
7080416
$5.65
27
PLATE,TUNNEL,LH
5220634
Unavailable
27
PLATE,TUNNEL,RH
5220635
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
30
BRACKET, SUSPENSION, FRONT, BLACK
5211323-067
$29.99
31
BRACKET, SUSPENSION, REAR, LH, BLACK
1011749-067
Unavailable
31
BRACKET, SUSPENSION, REAR, RH, BLACK
1011750-067
Unavailable
32
WEARPLATE,TUNNEL
5222061
Unavailable
33
BRACE,TUNNEL REINF.
5222412
Unavailable
34
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
35
RIVET Substituted by 7661829
7661828
Unavailable
35
RIVET Substituted by 7661829
7661828
Unavailable
