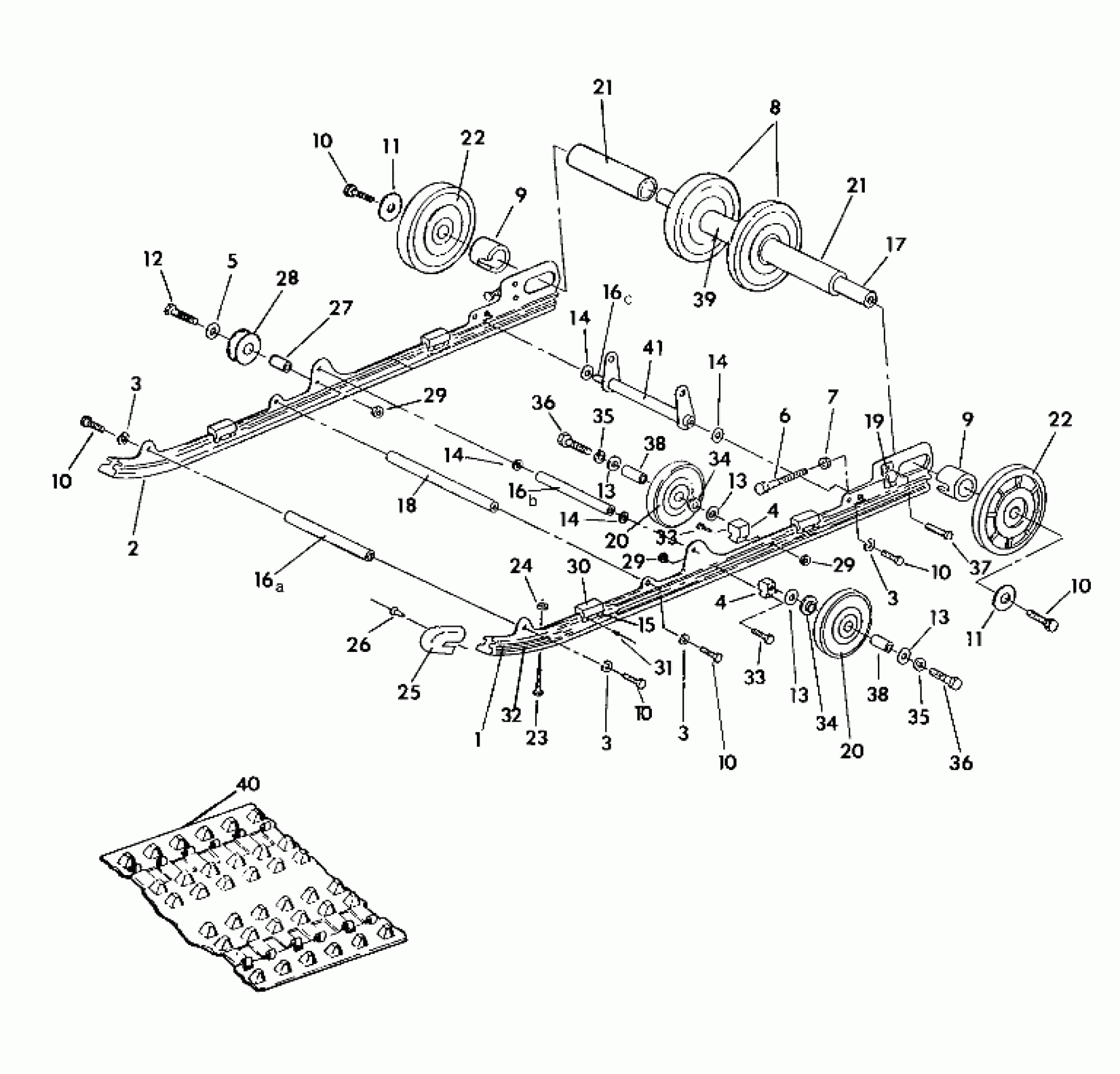

Polaris XLT SP - 0920767 SUSPENSION 500 XLT (4921662166023A) Diagram
#
1
RAIL ASM, LH
1540724
Unavailable
2
RAIL ASM, RH
1540725
$292.99
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BRACKET,BOGIE WHEEL
5130570
$48.56
4
BRACKET,BOGIE WHEEL
5130570
$48.56
5
WASHER(10)
7555743
Unavailable
6
BOLT, ADJUSTER(10)
7515455
$29.99
7
NUT(10)
7542440
Unavailable
8
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
12
BOLT Substituted by 7515491
7515433
$1.59
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
REINF., BUMPER
5222629
$13.75
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
17
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
19
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
21
SPACER INNER IDLER
5010169
Unavailable
21
SPACER INNER IDLER
5010169
Unavailable
22
WHEEL,IDLER,BLUE
1594038
Unavailable
22
WHEEL,IDLER,BLUE
1594038
Unavailable
23
SCREW(10)
7512227
$3.19
24
NUT-LOCK(10)
7542122
$1.49
25
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
26
RIVET(50)
7621435
$1.49
27
Spacer
5332787
Unavailable
28
ROLLER-SPRING
5430540
Unavailable
29
NUT-LOCK(10)
7542439
$1.49
29
NUT-LOCK(10)
7542439
$1.49
29
NUT-LOCK(10)
7542439
$1.49
30
BUMPER, RAIL
5810554
$7.27
31
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
32
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
33
BOLT(10)
7512404
$3.99
33
BOLT(10)
7512404
$3.99
34
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
34
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
35
LOCK WASHER(10)
7553201
$3.99
35
LOCK WASHER(10)
7553201
$3.99
36
BOLT(10)
7512659
$7.99
36
BOLT(10)
7512659
$7.99
37
RIVET,(50) Substituted by 7621467
7621401
Unavailable
38
SPACER
5332786
$7.99
38
SPACER
5332786
$7.99
39
SPACER CTR IDLER
5010168
Unavailable
40
TRACK, (650)
5410498
Unavailable
41
ARM, REAR PIVOT Substituted by 1540721-067
1540721
Unavailable
