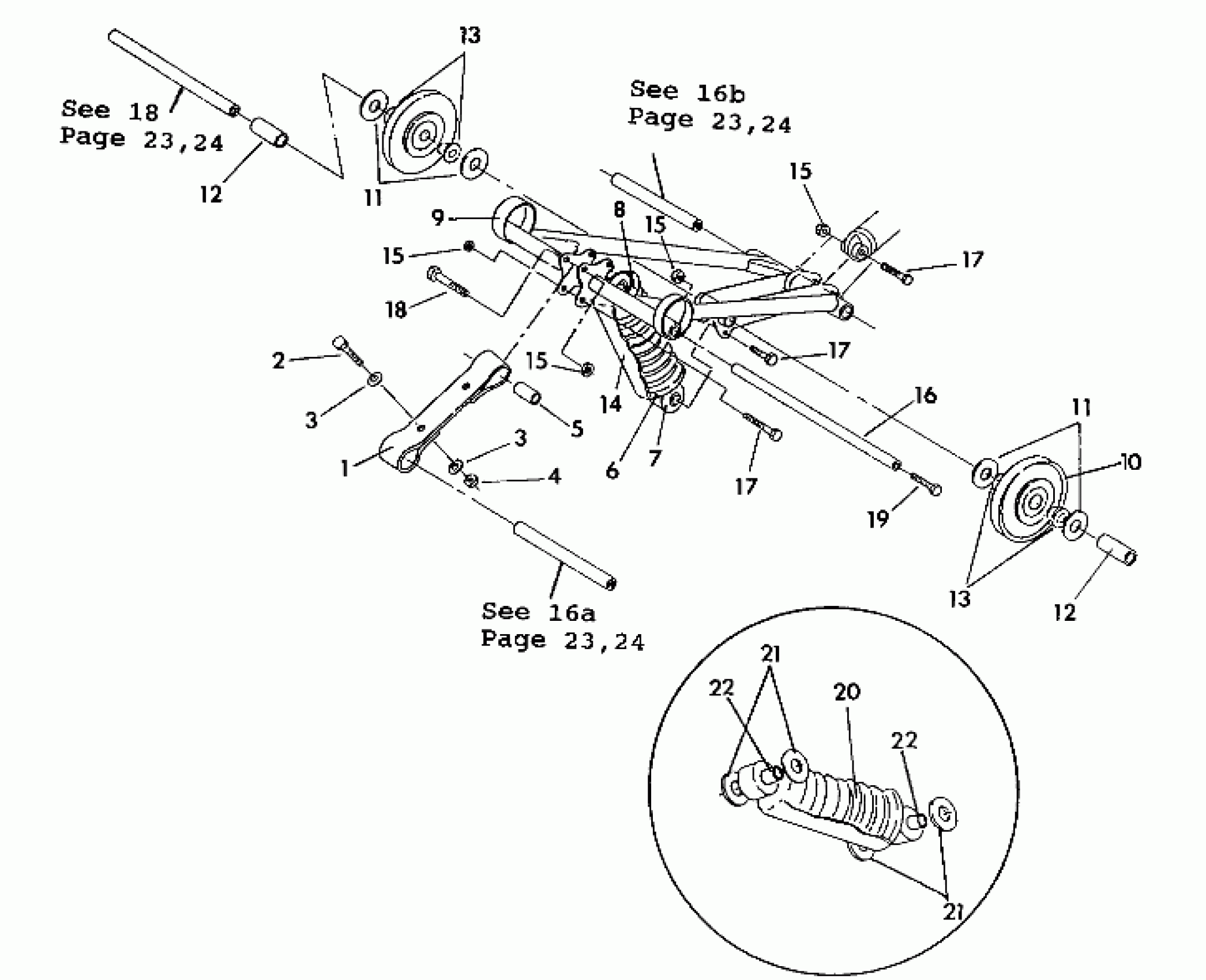

Polaris XLT SP - 0920767 FRONT TORQUE ARM 500 XLT (4921662166025A) Diagram
#
Description
Price
1
STRAP, LIMITER
5410397
Unavailable
2
BOLT(10)
7515307
$3.99
3
WASHER(10)
7555716
$1.59
3
WASHER(10)
7555716
$1.59
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
BUSHING,SUSPENSION
5010212
Unavailable
6
RETAINER, SPRING BODY
5020617
Unavailable
7
SHOCK,GAS,MIDDLE
7041254
Unavailable
8
RETAINER,SPRING,SLOTTED
5020618
$24.99
9
ARM,F.TORQUE,BLK.
1540722-067
Unavailable
10
WHEEL, IDLER
1543018
$56.65
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
13
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
13
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
14
SHIELD-SPRING
5430671
$24.27
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
16
SHAFT,MOUNTING
5010149
Unavailable
17
BOLT(10)
7515415
$1.49
17
BOLT(10)
7515415
$1.49
17
BOLT(10)
7515415
$1.49
18
BOLT(10)
7515438
$4.79
19
BOLT(10)
7515432
Unavailable
20
SPRING,BLACK,COMP.
7041253-067
$95.22
21
SPACER,SHOCK,(.190) (.190)
5020639
Unavailable
21
SPACER,SHOCK,(.190) (.190)
5020639
Unavailable
22
BUSHING, (1.24)
5020640
Unavailable
22
BUSHING, (1.24)
5020640
Unavailable
