FRONT SUSPENSION and SKI 500 XLT (4921662166013A)

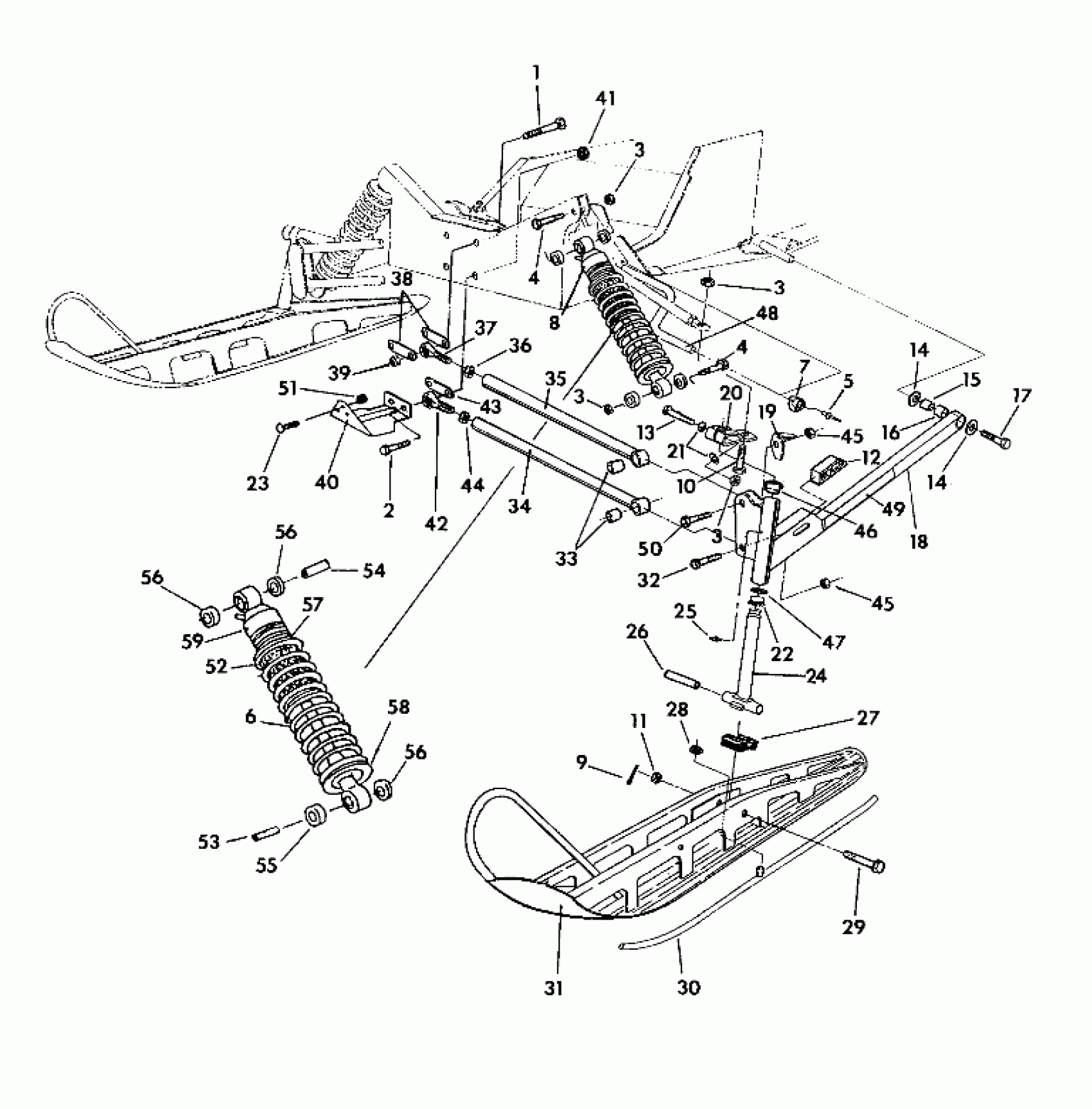

Polaris XLT SP - 0920767 FRONT SUSPENSION and SKI 500 XLT (4921662166013A) Diagram
#
1
SCREW(10)
7512522
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RIVET(50)
7621433
$1.49
6
SPRING,(BLK.),IFS COMP.
7041252-067
Unavailable
7
BUSHING,SWAYBAR
5410386
Unavailable
8
SHOCK ASM, FRONT Substituted by 2870977
1820315
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
SLIDE,(FR.SUSP.)
5410385
Unavailable
13
BOLT Substituted by 7515491
7515433
$1.59
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM,TRAILING,LH
1822091-067
Unavailable
18
ARM,TRAILING,RH
1822092-067
$185.99
19
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
19
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
20
Arm, Steering
5220326-067
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
BOLT(10)
7512039
Unavailable
24
SPINDLE,BLK. Substituted by 5130919-067
6230055-067
Unavailable
25
ZERK,FITTING,THREADED(10)
7080433
$1.49
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
BOLT(10)
7515462
$8.79
30
SKAG,PR.,CARBIDE
2870693
$69.99
31
SKI Substituted by 1820332-067
1820279
Unavailable
32
BOLT(10) Substituted by 7515492
7512410
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,RADIUS,(BLK.)LOW
1822055-067
Unavailable
35
ROD, RADIUS,(BLK.)
1822054-067
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END RH
7060126
Unavailable
38
STRAP-SPACER
5220178
$1.49
39
NUT, LOCK,(10)
7542503
$10.39
40
DESC NOT_AVAILABLE
5222746
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END
7060127
Unavailable
43
STRAP-SPACER BOTTOM
5220227
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10)
7542411
$3.19
45
NUT LOCK(10)
7542411
$3.19
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
BAR, SWAY, (BLK.)
5224240-067
$49.21
49
DECAL, IFS [No Longer Available]
7073182
Unavailable
51
NUT(10)
7541925
$1.49
52
RING, RETAINING(10)
7710424
$0.63
53
BUSHING, (1.34 IN.)
5020612
Unavailable
54
BUSHING, (1.16 IN.)
5020613
Unavailable
55
SPACER, SHOCK
5020615
Unavailable
56
SPACER, SHOCK,(.160)
5020616
Unavailable
56
SPACER, SHOCK,(.160)
5020616
Unavailable
56
SPACER, SHOCK,(.160)
5020616
Unavailable
57
RETAINER, SPRING BODY
5020617
Unavailable
58
RETAINER,SPRING,SLOTTED
5020618
$24.99
59
SHOCK, GAS
7041266
Unavailable
