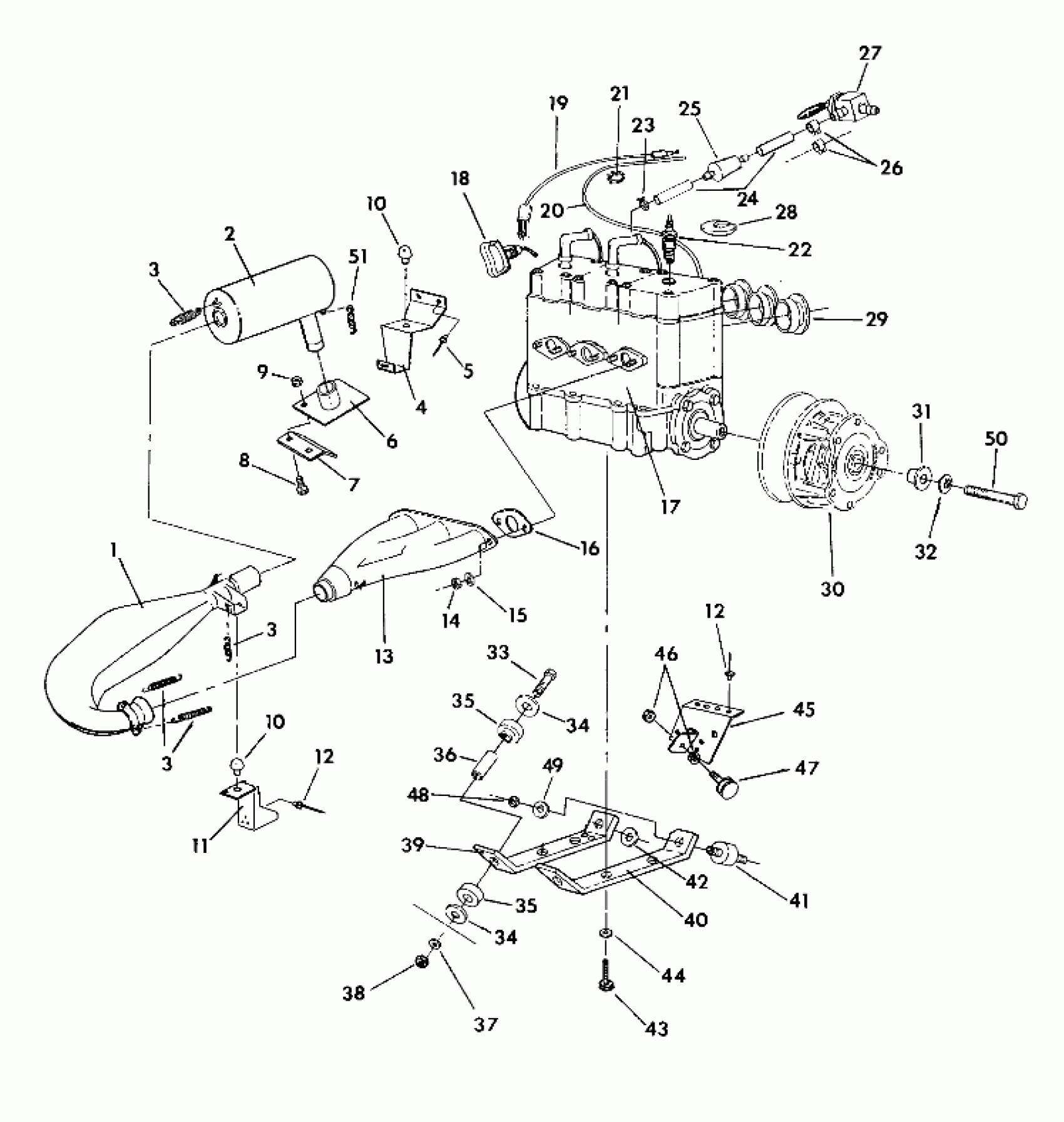

Polaris XLT SP - 0920767 ENGINE MOUNTING 500 XLT (4921662166029A) Diagram
#
1
MUFFLER, BLK.
1260589-029
Unavailable
2
RESONATOR,BLK.
1260583-029
Unavailable
3
SPRING, EXHAUST(10)
7042031
$5.65
3
SPRING, EXHAUST(10)
7042031
$5.65
3
SPRING, EXHAUST(10)
7042031
$5.65
4
BRKT,REAR MUFFLER Substituted by 5224701-067
5222153-067
Unavailable
5
POP RIVET(50)
7621402
$1.49
6
OUTLET,STINGER
1260593-067
Unavailable
7
DEFLECTOR-SNOW,EXH. Substituted by 5222615-067
5222615
Unavailable
8
BOLT(10)
7515103
Unavailable
9
NUT, LOCK(10)
7542103
$5.59
10
DAMPNER, VIB.
5410467
$8.79
10
DAMPNER, VIB.
5410467
$8.79
11
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
13
MANIFOLD WELD, BLK.
1260582-029
Unavailable
14
NUT(10)
3080285
Unavailable
15
WASHER LOCK ,(10)
3080530
$3.19
16
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
17
ENG.EC58PL-01 [No Longer Available]
1211517
Unavailable
18
HANDLE-RECOIL
5430520
Unavailable
19
CABLE,THROTTLE,W/OIL
7080458
$157.84
20
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
21
CLIP(10)
7080278
$2.63
22
SPARK PLUG-NGK BR9ES
3070163
$3.99
23
CLAMP-HOSE(10)
7080134
Unavailable
24
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
25
FILTER FUEL,(10)
2530008
$4.84
26
CLAMP-HOSE,(10)
7080236
$1.59
27
VALVE,FUEL SHUT-OFF
7052039
Unavailable
28
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
29
BOOT
5410403
$12.99
30
CLUTCH, DRIVE Substituted by 1321577
1321556
Unavailable
31
WASHER,CLUTCH RETAINER
5010278
Unavailable
32
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
33
SCREW(10)
7512530
$5.59
34
WASHER(10)
7555740
$1.59
34
WASHER(10)
7555740
$1.59
35
MOUNT, ENGINE
5410390
Unavailable
35
MOUNT, ENGINE
5410390
Unavailable
36
SPACER, (MTR.MT.)
5332778
Unavailable
37
WASHER(10)
7555801
$3.99
38
NUT FLANGED LOC,(10)
7542508
Unavailable
39
PLATE,RH MTR.MT.
5222762
$61.90
40
PLATE,LH MTR.MT.
5222761
Unavailable
41
MOUNT
3110022
Unavailable
42
WASHER(10)
7555721
$1.49
43
BOLT(10)
7512539
$3.99
44
WASHER LOCK(10)
7553101
$3.99
45
LIMITER
1011503-067
Unavailable
46
NUT, JAM(10)
7542432
$3.99
47
MOUNT,TORQUESTOP,RUBBER
3110034
Unavailable
48
NUT-LOCK(10)
7542439
$1.49
49
WASHER(10) Substituted by 7555806
7555720
$0.79
50
BOLT(10)
7512565
$19.99
51
SPRING-EXHAUST(10)
7042029
$4.84
