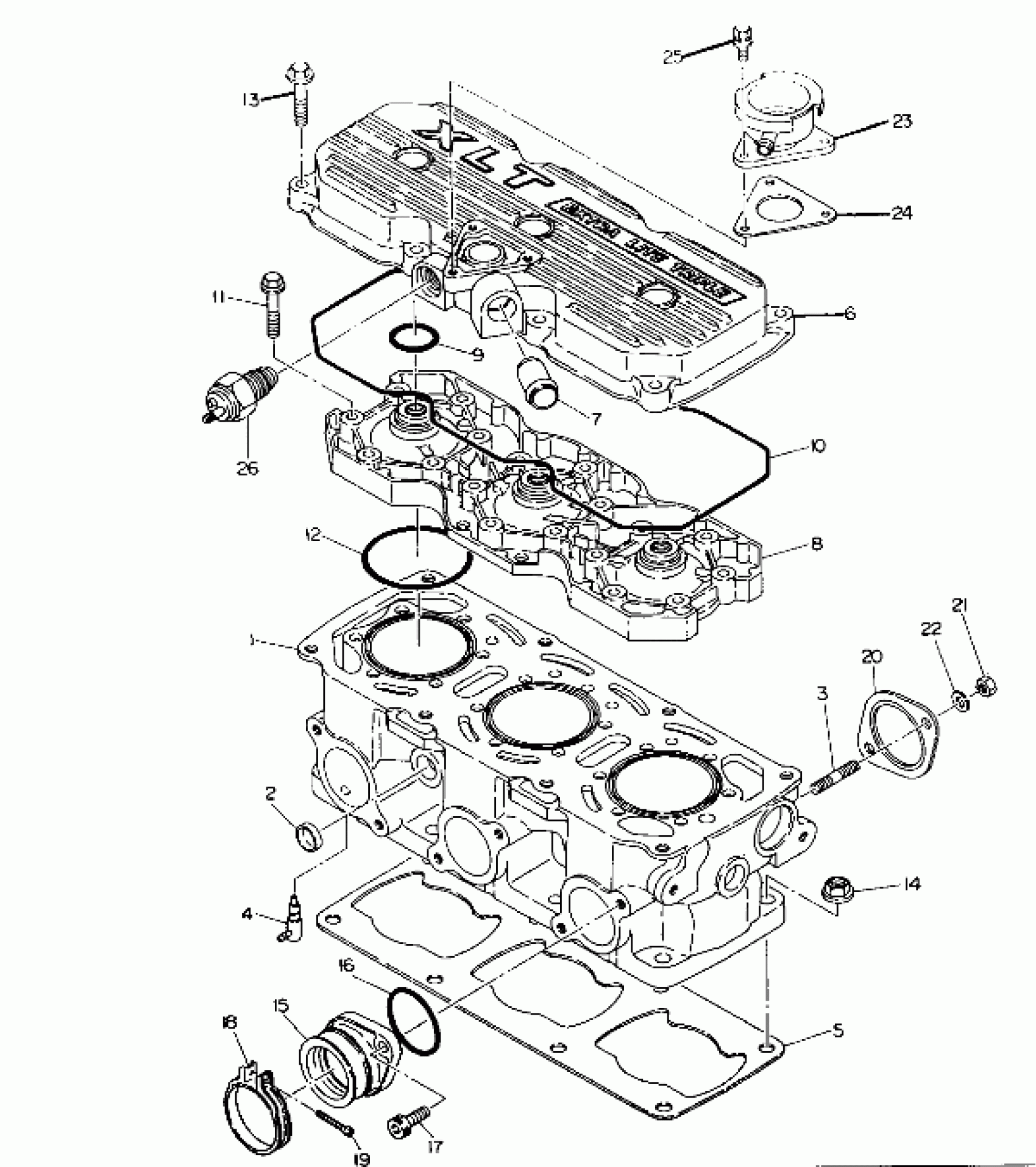

Polaris XLT SP - 0920767 CYLINDER 500 XLT (4921662166034A) Diagram
#
Description
Price
1
CYLINDER, CPL.
3084427
$714.99
2
PLUG
3084428
$3.51
3
STUD Substituted by 3085326
3084270
Unavailable
4
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
5
GASKET, CYLINDER Substituted by 3084593 (Cylinder)
3084429
Unavailable
6
COVER, HEAD, CPL.
3084430
$142.84
7
PIPE, WATER, CPL. (Water)
3084431
Unavailable
8
HEAD, CYLINDER
3084432
$195.99
9
O-RING, HEAD Substituted by 3085192 (Head)
3084433
Unavailable
10
O-RING, (HEADCOVER) (Head Cover)
3084434
Unavailable
11
BOLT, FLANGE ,(10)
3084435
Unavailable
12
O-RING, CYLINDER Substituted by 3084595 (Cylinder)
3084436
Unavailable
13
Bolt, Flange
3084437
Unavailable
14
NUT-FLANGE(10)
3082911
$1.99
15
ADAPTER
3084438
Unavailable
16
O-RING Substituted by 3085619
3084272
Unavailable
17
BOLT, ALLEN (Socket Head)
3081330
$3.99
18
BAND-CARB MTG. (Adapter)
3082257
Unavailable
19
SCREW,(10) (Pan Head)
3081497
$2.39
20
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Unavailable
21
NUT(10)
3080285
Unavailable
22
WASHER LOCK ,(10)
3080530
$3.19
23
NECK, FILLER
3083398
Unavailable
24
GASKET, FILLER NECK (Filler Neck)
3083340
Unavailable
25
BOLT&WASHER ASM.
3083361
Unavailable
26
SWITCH,THERMAL,IOS
3084284
Unavailable
