CRANKSHAFT and PISTON 500 XLT (4921662166035A)

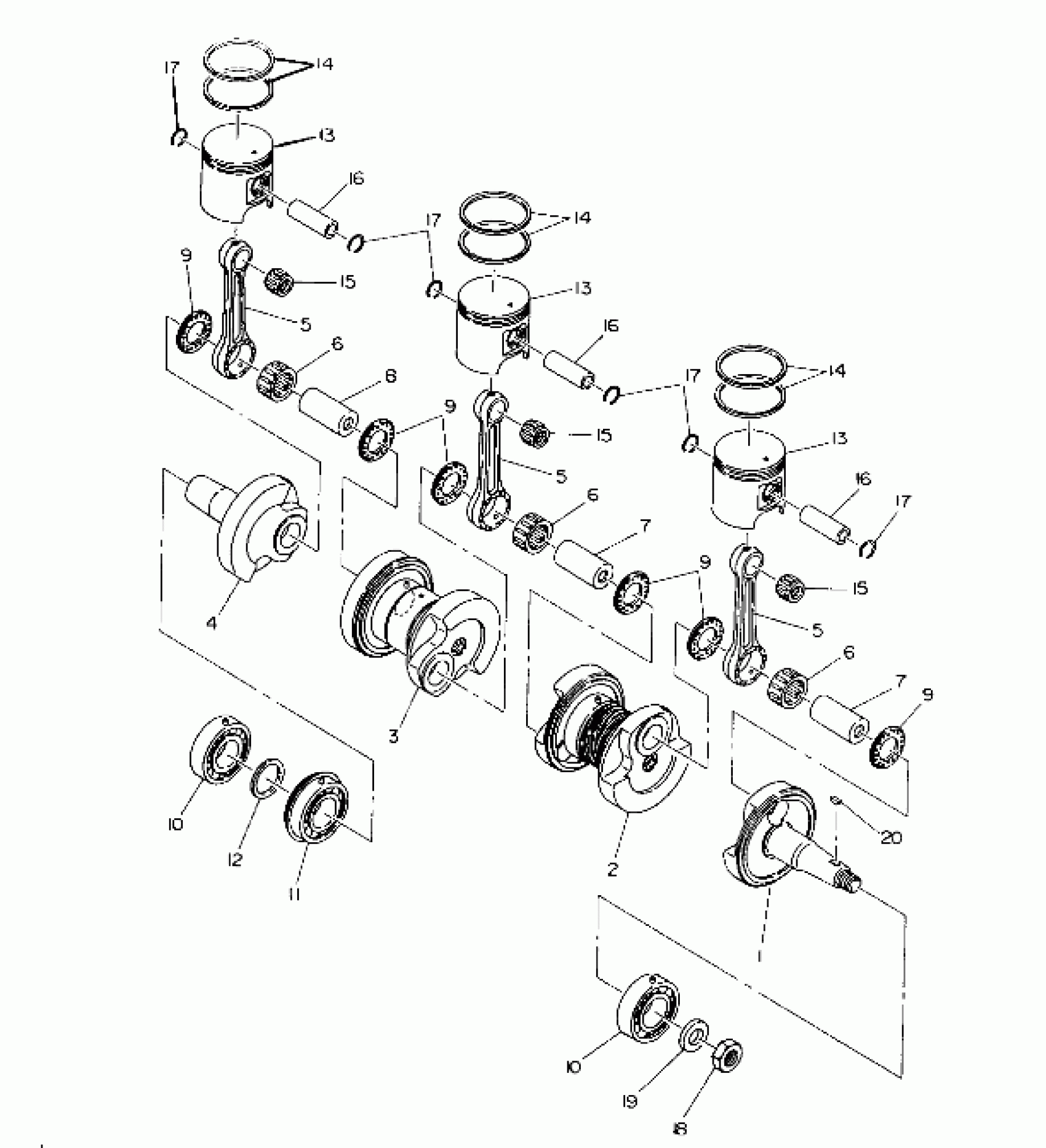

Polaris XLT SP - 0920767 CRANKSHAFT and PISTON 500 XLT (4921662166035A) Diagram
#
1
CRANKSHAFT ASM. Substituted by 3084596
3084440
$1,219.99
1
CRANKSHAFT 1 Substituted by 3084597
3084441
$226.99
2
CRANKSHAFT,CENTER Substituted by 3085421 (Center)
3084442
$999.99
2
CRANKSHAFT,MAG SIDE (Mag Side)
3084443
Unavailable
3
CRANKSHAFT,PTO SIDE (PTO Side)
3084444
$549.99
4
CRANKSHAFT 3
3084445
Unavailable
5
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
5
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
5
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
6
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
6
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
7
PIN, CRANK, #1
3084447
$32.15
7
PIN, CRANK, #1
3084447
$32.15
8
PIN, CRANK, #2 Substituted by 3083254
3084448
Unavailable
9
SPACER(CRANKPIN) (Crank Pin)
3083277
$15.99
9
SPACER(CRANKPIN) (Crank Pin)
3083277
$15.99
9
SPACER(CRANKPIN) (Crank Pin)
3083277
$15.99
9
SPACER(CRANKPIN) (Crank Pin)
3083277
$15.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BALL BEARING, C-4 Substituted by 3084599
3083708
Unavailable
12
SPACER,CRANKSHAFT
3080447
Unavailable
13
PISTON, (.020 O/S) (0.20 O/S)
3084451
$94.99
13
PISTON, (.010 O/S) (0.10 O/S)
3084450
Unavailable
13
PISTON, (STD.) (Std)
3084449
$142.84
13
PISTON, (.020 O/S) (0.20 O/S)
3084451
$94.99
13
PISTON, (.010 O/S) (0.10 O/S)
3084450
Unavailable
13
PISTON, (STD.) (Std)
3084449
$142.84
13
PISTON, (.020 O/S) (0.20 O/S)
3084451
$94.99
13
PISTON, (.010 O/S) (0.10 O/S)
3084450
Unavailable
13
PISTON, (STD.) (Std)
3084449
$142.84
14
RING,PISTON(.010 O/S) (0.10 O/S)
3084453
Unavailable
14
RING,PISTON(.020 O/S) (0.20 O/S)
3084454
Unavailable
14
RING,PISTON,(STD.) (Std)
3084452
$49.59
14
RING,PISTON(.010 O/S) (0.10 O/S)
3084453
Unavailable
14
RING,PISTON(.020 O/S) (0.20 O/S)
3084454
Unavailable
14
RING,PISTON,(STD.) (Std)
3084452
$49.59
14
RING,PISTON(.010 O/S) (0.10 O/S)
3084453
Unavailable
14
RING,PISTON(.020 O/S) (0.20 O/S)
3084454
Unavailable
14
RING,PISTON,(STD.) (Std)
3084452
$49.59
15
BEARING,SMALL END
3080998
Unavailable
15
BEARING,SMALL END
3080998
Unavailable
15
BEARING,SMALL END
3080998
Unavailable
16
PIN, PISTON Substituted by 3085021
3084455
Unavailable
16
PIN, PISTON Substituted by 3085021
3084455
Unavailable
16
PIN, PISTON Substituted by 3085021
3084455
Unavailable
17
CLIP,PISTON PIN,(10) (Piston Pin)
3084456
Unavailable
17
CLIP,PISTON PIN,(10) (Piston Pin)
3084456
Unavailable
17
CLIP,PISTON PIN,(10) (Piston Pin)
3084456
Unavailable
17
CLIP,PISTON PIN,(10) (Piston Pin)
3084456
Unavailable
18
NUT
3083093
$19.99
19
Washer
3084457
Unavailable
20
KEY WOODRUFF
3081543
$12.94
