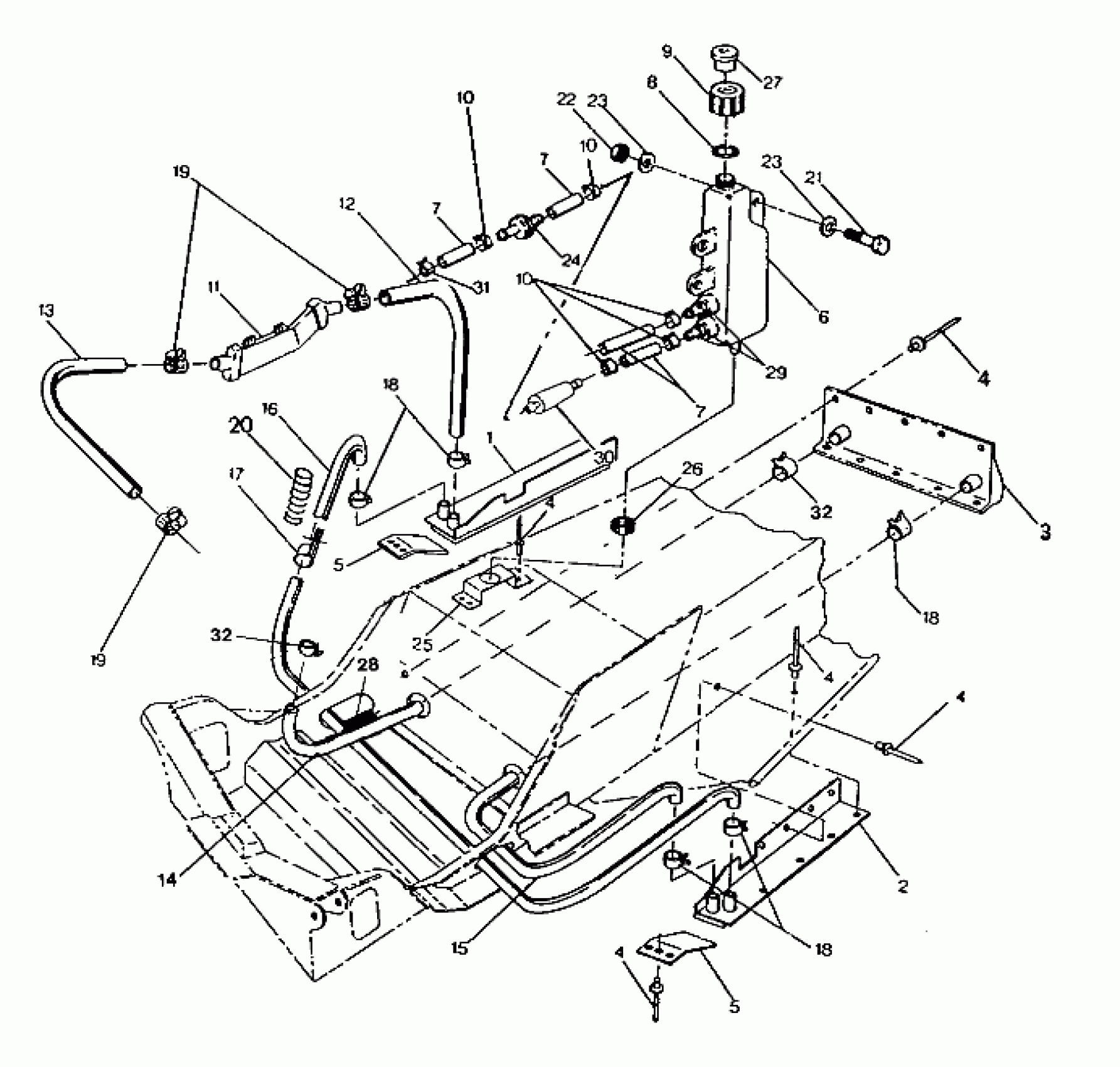

Polaris XLT SP - 0920767 COOLING SYSTEM 500 XLT (4921662166012A) Diagram
#
1
DESC NOT_AVAILABLE
2511205
Unavailable
2
DESC NOT_AVAILABLE
2511206
Unavailable
3
EXT.,CTR.COOLING
2511207
Unavailable
4
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
5
GUARD,COOLING EXT
5240101
Unavailable
5
GUARD,COOLING EXT
5240101
Unavailable
6
BOTTLE, OVERFLOW Substituted by 5431733
5431054
$36.41
7
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
7
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
7
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
8
GASKET-OVERFLOW CAP
5810279
$2.41
9
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
10
CLAMP-HOSE(10)
7080134
Unavailable
10
CLAMP-HOSE(10)
7080134
Unavailable
10
CLAMP-HOSE(10)
7080134
Unavailable
11
COOLER-BRAKE
2511154
$53.59
12
HOSE-PUMP INLET
5410348
Unavailable
13
HOSE,ENG.OUTLET Substituted by 5410739
5410674
Unavailable
14
HOSE, CENTER
5410673
Unavailable
15
HOSE-CROSSOVER
5410350
Unavailable
16
HOSE-CROSSOVER
5410324
Unavailable
17
CLIP
7080277
$1.24
18
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
18
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
18
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
19
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
19
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
20
SPRING,HOSE RETAINER
7041079
$4.95
21
BOLT(10)
7512240
$3.99
22
NUT-LOCK(10)
7542122
$1.49
23
WASHER,WROUGHT(10)
7558302
$1.59
23
WASHER,WROUGHT(10)
7558302
$1.59
24
VALVE, CHECK
7052038
$10.51
25
BRACKET
5223985
Unavailable
26
GROMMET RUBBER
5410021
Unavailable
27
PLUG, OVERFLOW,(10)
5431096
$2.02
28
EDGE TRIM - BLACK Substituted by 5521131
8360012
Unavailable
29
FITTING, OUTLET
7052042
$8.99
30
FILTER, COOLANT
2530013
Unavailable
32
CLAMP, HOSE
7080472
Unavailable
32
CLAMP, HOSE
7080472
Unavailable
