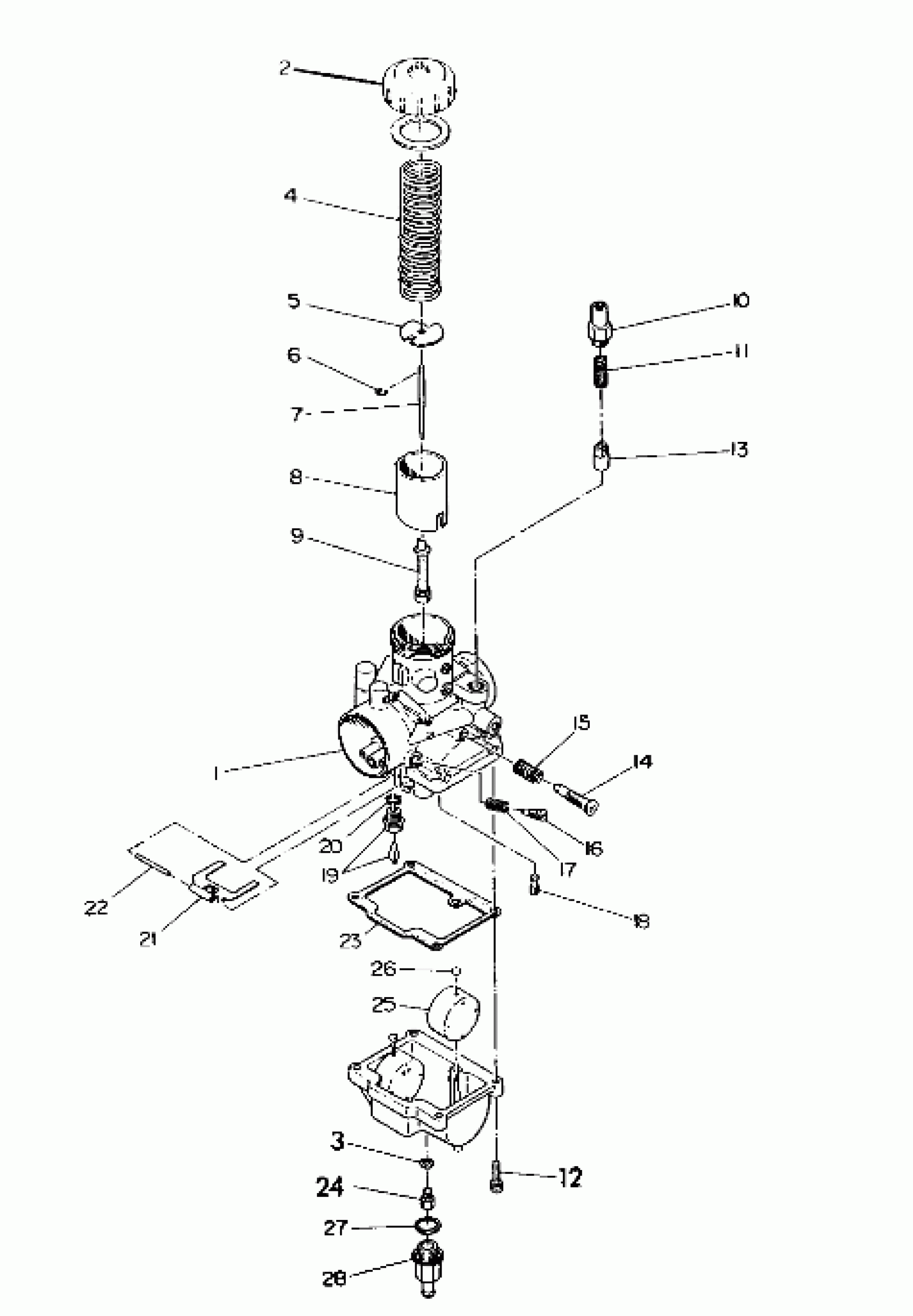

Polaris XLT SP - 0920767 CARBURETOR 500 XLT (4921662166037A) Diagram
#
Description
Price
1
CARBURETOR
3130463
$347.60
2
TOP ASM
3130184
$32.37
3
WASHER (10)
3130014
$1.59
4
SPRING,THROTTLE (Throttle)
3130439
$13.59
5
PLATE (Throttle)
3130027
$9.70
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET, NEEDLE (6DP17-3)
3130374
Unavailable
8
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
9
JET NEEDLE (Q-2)
3130160
$36.41
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
SCREW & WASHER(10)
3130025
$3.19
13
PLUNGER ASM. Substituted by 3130328
3130440
Unavailable
14
SCREW,THROTTLE STOP
3130009
$19.99
15
SPRING,THROTTLE ADJ. (Throttle Adjuster)
3130010
$8.89
16
SCREW,AIR
3130011
$19.99
17
SPRING,AIR ADJUST (Air Adjuster)
3130012
$8.89
18
JET,PILOT,#35(10) (#35)
3130066
$8.89
19
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
20
PACKING(10) (Needle Valve)
3130017
$4.03
21
ARM,FLOAT
3130018
$24.27
22
PIN, FLOAT Substituted by 3130235
3130240
$8.89
23
PACKING,FLOAT CHAMBER (Float Chamber)
3130020
$16.17
24
DESC NOT_AVAILABLE (#185)
3130465
Unavailable
25
FLOAT ASM.
3130430
$43.56
26
CAP,(10)
3130237
$4.03
27
O RING
3130239
Unavailable
28
NIPPLE Substituted by 5020476
3130387
$10.56
