OIL TANK/AIR BOX XLT LTD SP 0973776 (4940074007C003)

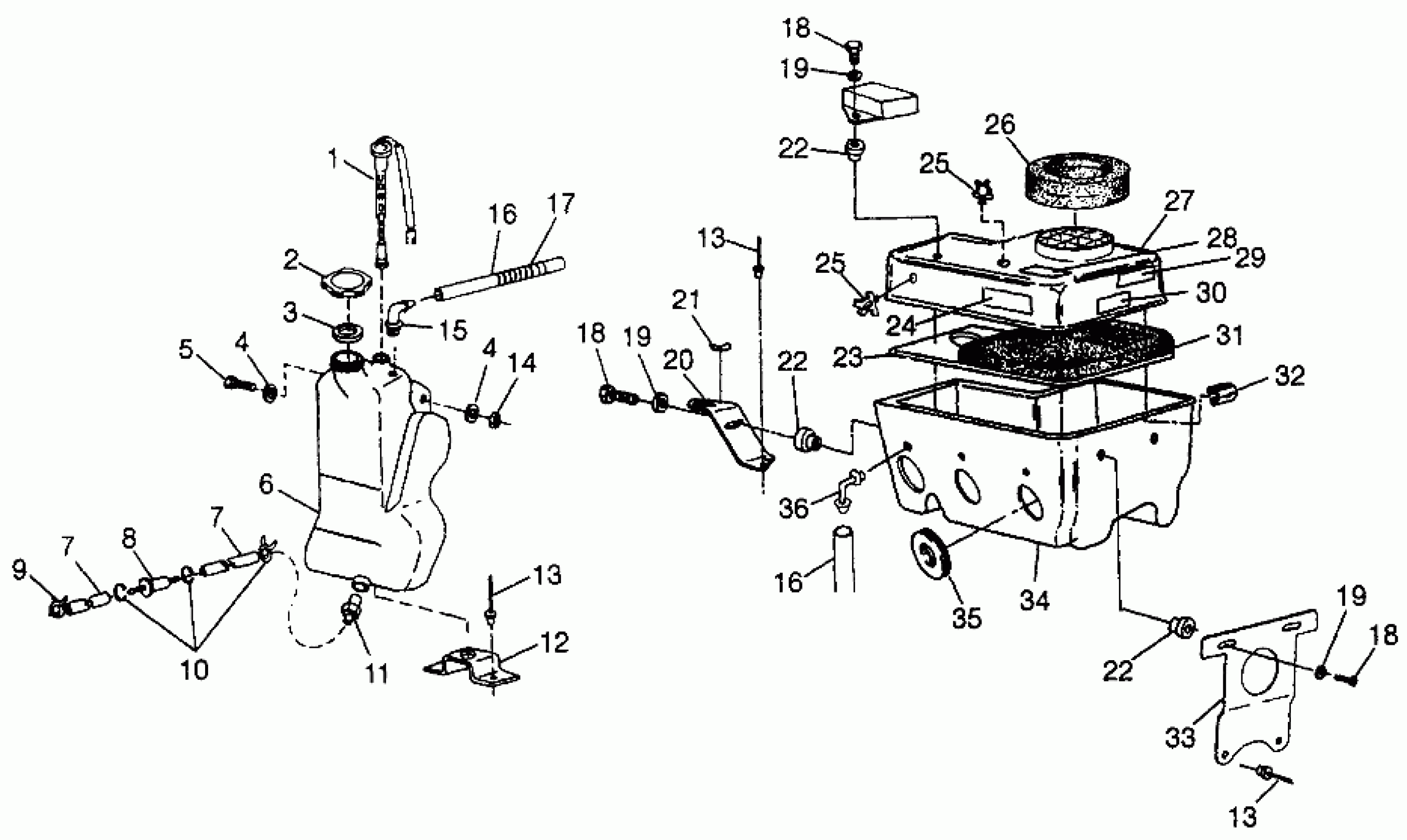

Polaris XLT LTD SP - 0973776 OIL TANK/AIR BOX XLT LTD SP 0973776 (4940074007C003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
Tank, Oil
5431437
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
8
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
9
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
10
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
BRKT,OILTANK,COINED
5241334
$9.70
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
16
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
17
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
18
SCREW(10)
7512222
$2.39
18
SCREW(10)
7512222
$2.39
18
SCREW(10)
7512222
$2.39
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
21
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
NUT-WELL(10)
7541923
$5.59
22
NUT-WELL(10)
7541923
$5.59
22
NUT-WELL(10)
7541923
$5.59
23
PLATE, AIR SILENCER
5850102
Unavailable
24
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
25
CLIP, PLASTIC(10)
4020139
$4.79
25
CLIP, PLASTIC(10)
4020139
$4.79
26
DUCT ASM,AIR
2620057
$40.46
27
SILENCER.UP.AIR,DRILLED
5431879
Unavailable
28
DECAL,CAUTION,AIRBOX
7075351
Unavailable
29
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
30
DECAL, GREASING [No Longer Available]
7073426
$7.27
31
BAFFLE ASM.
1253124
Unavailable
32
CLIP, AIR BOX,(10)
7670055
$7.99
33
BRKT,AIR BOX
5241080-067
Unavailable
34
SILENCER,INTAKE,DRILLED Substituted by 5432806
5432556
Unavailable
35
Boot
5410271
Unavailable
36
FITTING,(10)
7052077
$6.39
