HOOD/HEADLIGHT XLT LTD SP 0973776 (4940074007A010)

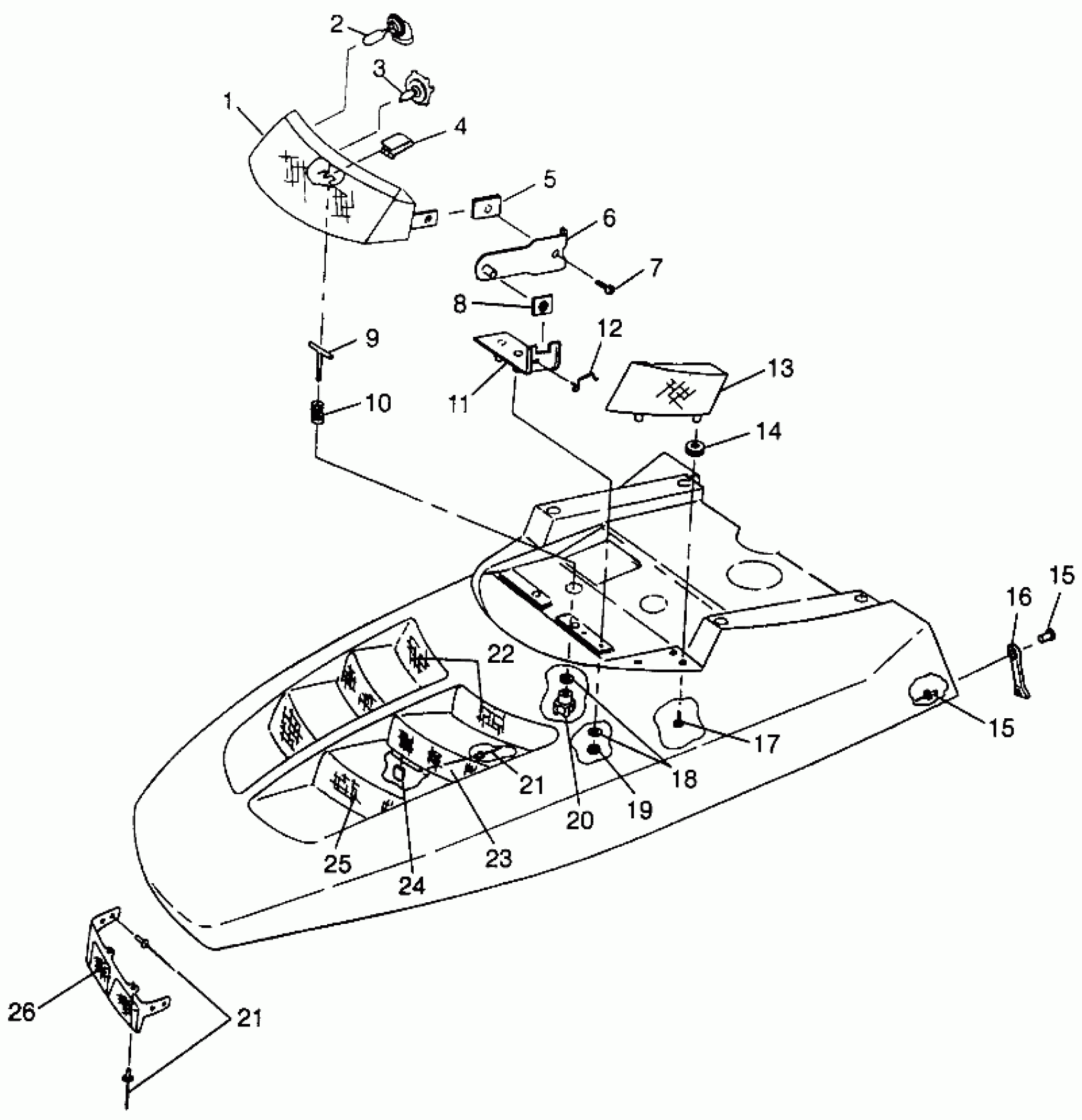

Polaris XLT LTD SP - 0973776 HOOD/HEADLIGHT XLT LTD SP 0973776 (4940074007A010) Diagram
#
Description
Price
1
H/L ASM,3-BULB (Incl. 2, 3)
2431008
$111.99
2
BULB,HI-BEAM
4030048
$29.03
3
BULB,QUARTZ.H/L,INDY
2870448
$24.99
4
FASTENER-U TYPE CLIP
7670040
$3.99
5
NUT, SPEED(10)
7670057
$1.49
6
MOUNT,WELD,H/L
1011944-067
$24.27
7
BOLT(10)
7515107
Unavailable
8
PIVOT,HEADLIGHT
5431549
Unavailable
9
BOLT,TEE ADJUSTER Substituted by 7517746
7515135
$24.99
10
SPRING,H/L.ADJ.
7041308
$3.19
11
BRKT,LH,H/L MT.,BLK.
1011984-067
Unavailable
11
BRKT,RH,H/L MT.,BLK.
1011985-067
Unavailable
12
RETAINER,LH,WIRE
5224493
$2.22
12
RETAINER,RH,WIRE
5224501
Unavailable
13
LENS,LH,CLR.REFLECTOR
5431855
Unavailable
13
LENS,RH,CLR.REFLECTOR
5431856
Unavailable
14
BUSHING
5411110
Unavailable
15
RIVET,(50)
7621601
Unavailable
15
RIVET,(50)
7621601
Unavailable
16
STRAP,HOODLATCH
5431501
Unavailable
17
SCREW(10) Substituted by 7512048
7511953
Unavailable
18
WASHER(10)
7558301
$1.49
19
NUT-LOCK(10)
7542122
$1.49
20
KNOB,H/L.ADJUST
7080501
Unavailable
21
RIVET(50)
7621339
$1.49
21
RIVET(50)
7621339
$1.49
22
SCREEN,UP.HD,BLK.
5222908-067
Unavailable
23
SCREEN,CTR.HD,BLK.
5222907-067
Unavailable
24
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
25
SCREEN,LOW.HD,BLK
5241350-067
$17.43
26
SCREEN,FR.,BLK.
1012031-067
Unavailable
