CHAINCASE XLT LTD SP 0973776 (4940074007B006)

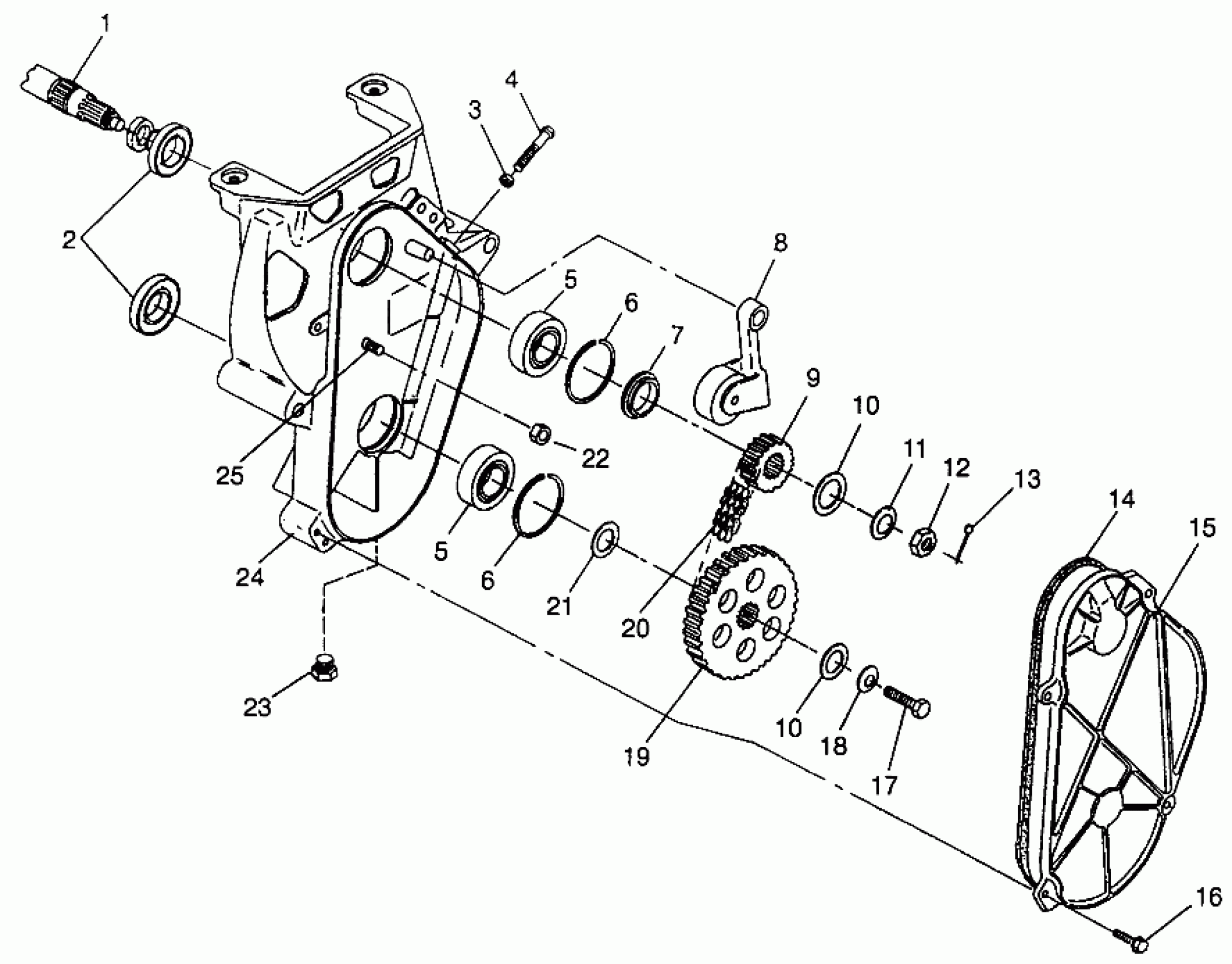

Polaris XLT LTD SP - 0973776 CHAINCASE XLT LTD SP 0973776 (4940074007B006) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. A23, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
NUT(10)
7542404
$1.59
4
SCREW(10)
7515511
$3.99
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER,SPROCKET
5010359
Unavailable
8
PIN,CHAIN TIGHTENER
7662210
Unavailable
8
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
8
BEARING
3553002
$11.99
8
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
8
WHEEL,C/C IDLER
5630123
Unavailable
8
WASHER THRUST(10)
7558702
$1.59
9
SPKT,21T,15W,15T SPLINE (15W)
3222077
$18.79
10
WASHER WROUGHT(10)
7558403
$4.79
10
WASHER WROUGHT(10)
7558403
$4.79
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT
7542811
Unavailable
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7515350
$3.97
18
WASHER(10)
7571618
$6.39
19
SPKT,39T,15W (15W)
3222075
Unavailable
20
CHAIN,SILENT,66P,15W (15W)
3224058
Unavailable
21
BUSHING(10)
7555864
$2.39
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
23
PLUG(10)
7052115
$5.65
24
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
25
BOLT(10)
7515477
$34.99
