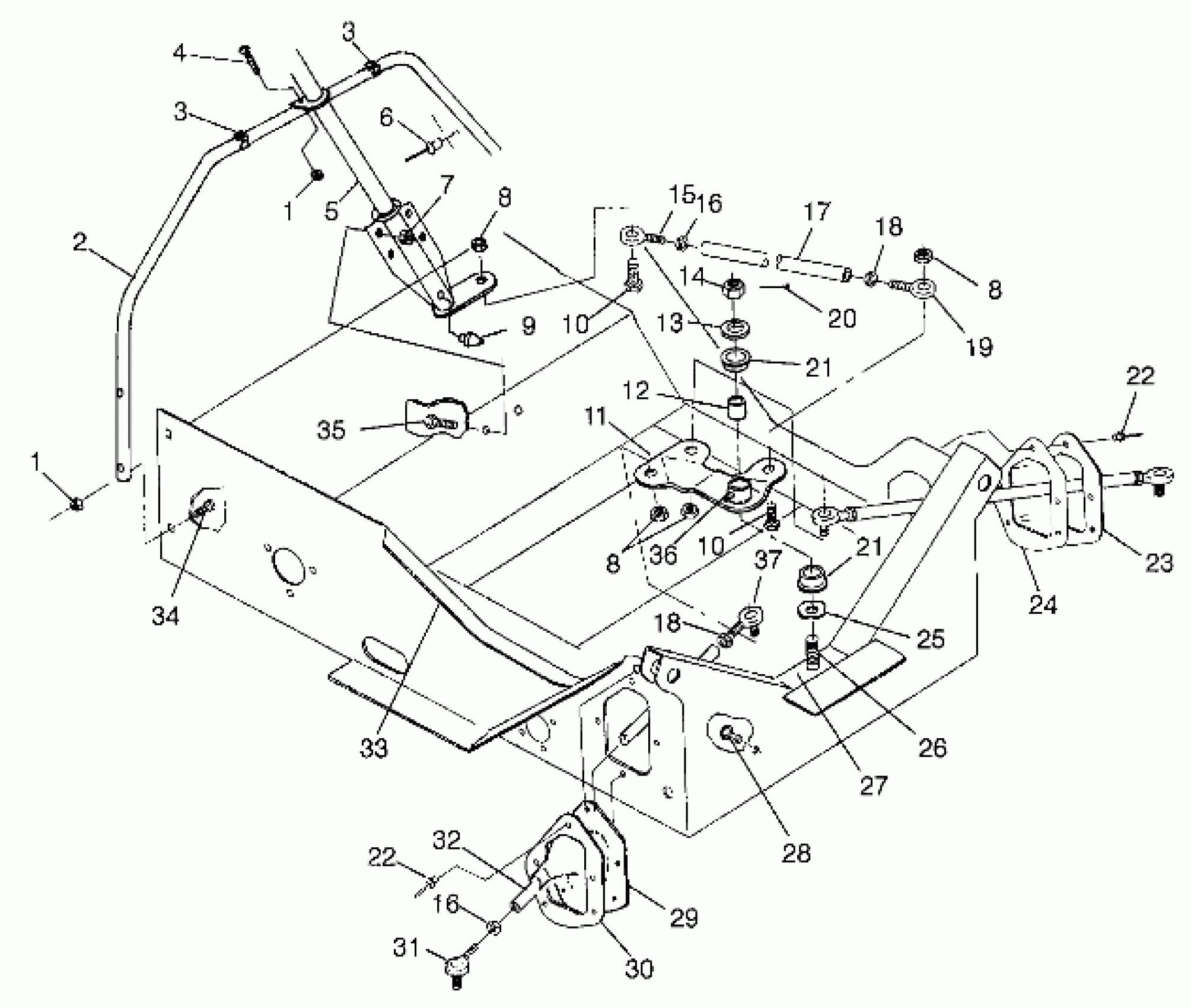

Polaris XLT LTD - 0983756 STEERING - 0983756 (4943034303b002) Diagram
#
Description
Price
1
NUT, LOCK(10)
7542103
$5.59
1
NUT, LOCK(10)
7542103
$5.59
2
HOOP,STEERING
1012335-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
SCREW
7517377
$4.79
5
POST,STRG,BLK.
1822299-067
Unavailable
6
RIVET,INTERLOCK,B(50)
7661638
$1.49
7
NUT FLEX-LOC(10)
7542303
$6.39
8
NUT LOCK(10)
7542403
$3.99
8
NUT LOCK(10)
7542403
$3.99
8
NUT LOCK(10)
7542403
$3.99
9
FITTING,LUB/VEN(10)
7080561
$4.79
10
BOLT(10)
7512404
$3.99
10
BOLT(10)
7512404
$3.99
11
STEERING ASM,CTR. (Incl. 21,36)
1822266
$38.49
12
BUSHING
5010340
Unavailable
13
WASHER(10)
7555721
$1.49
14
NUT FLEX,(10)
7542703
Unavailable
15
ROD END, LH.
7060164
$48.56
16
NUT
7542424
$1.49
16
NUT
7542424
$1.49
17
ROD-DRAG LINK
5332712
Unavailable
18
NUT HEX(10)
7542401
$2.39
18
NUT HEX(10)
7542401
$2.39
19
ROD END, RH.
7060165
$48.56
20
PIN COTTER(10)
7661203
$1.49
21
BUSHING
3563907
$3.99
21
BUSHING
3563907
$3.99
22
RIVET(50)
7621340
$0.56
22
RIVET(50)
7621340
$0.56
23
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
24
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
25
WASHER,WAVE(10)
7555735
$3.99
26
BOLT(10)
7512682
Unavailable
27
BLOCK,STRG,(CAST)
5630563
$32.37
28
CLIP, PLASTIC(10)
4020139
$4.79
29
BOOT,TIEROD,RH,XTRA
5411123
$20.22
30
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
31
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
32
ROD,TIE,BLK.
5020859-067
Unavailable
33
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
34
BOLT-CARRIAGE(10)
7512275
$3.99
35
BOLT,(10)
7517428
$2.39
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
