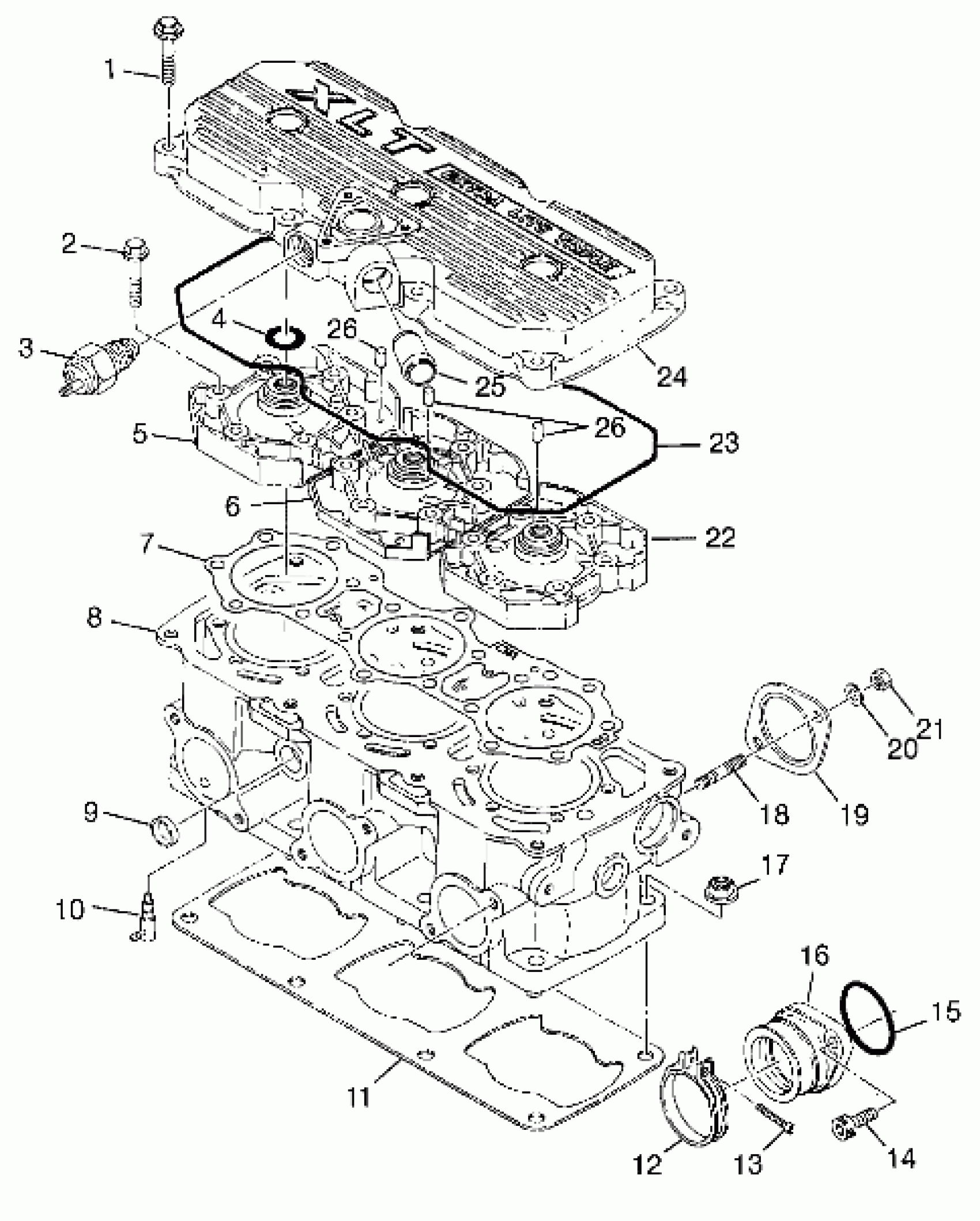

Polaris XLT LTD - 0983756 CYLINDER - 0983756 (4943034303c006) Diagram
#
Description
Price
1
Bolt, Flange
3084437
Unavailable
2
BOLT, FLANGE ,(10)
3084435
Unavailable
3
SWITCH,THERMAL,IOS (1055 C)
3084284
Unavailable
4
O RING
3085192
Unavailable
5
HEAD,CYL.#3,(PTO) (PTO)
3085425
Unavailable
6
HEAD,CYL.#2,(CTR) (Center)
3085424
Unavailable
7
GASKET,HEAD Substituted by 3085005
3085587
Unavailable
8
CYLINDER (Incl. 9,18)
3085017
$834.99
9
PLUG
3084428
$3.51
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
11
GASKET, CYLINDER
3084593
Unavailable
12
BAND-CARB MTG. (Incl. 13)
3082257
Unavailable
13
SCREW,(10)
3081497
$2.39
14
Bolt, Allen
3081330
$3.99
15
O-RING Substituted by 3085619
3084272
Unavailable
16
ADAPTER (Incl. 15)
3084438
Unavailable
17
NUT-FLANGE(10)
3082911
$1.99
18
STUD,(10)
3085326
Unavailable
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
21
NUT(10)
3080285
Unavailable
22
HEAD,CYL,#1,(MAG) (MAG)
3085423
Unavailable
23
O-RING, (HEADCOVER)
3084434
Unavailable
24
COVER,HEAD (Incl. 25)
3085415
Unavailable
25
Pipe, Water
3083452
Unavailable
26
PIN, DOWEL
3084721
$4.79
26
PIN, DOWEL
3084721
$4.79
