NOSEPAN XLT LTD 0973756 and EUROPEAN XLT LTD E973756 (4937793779A008)

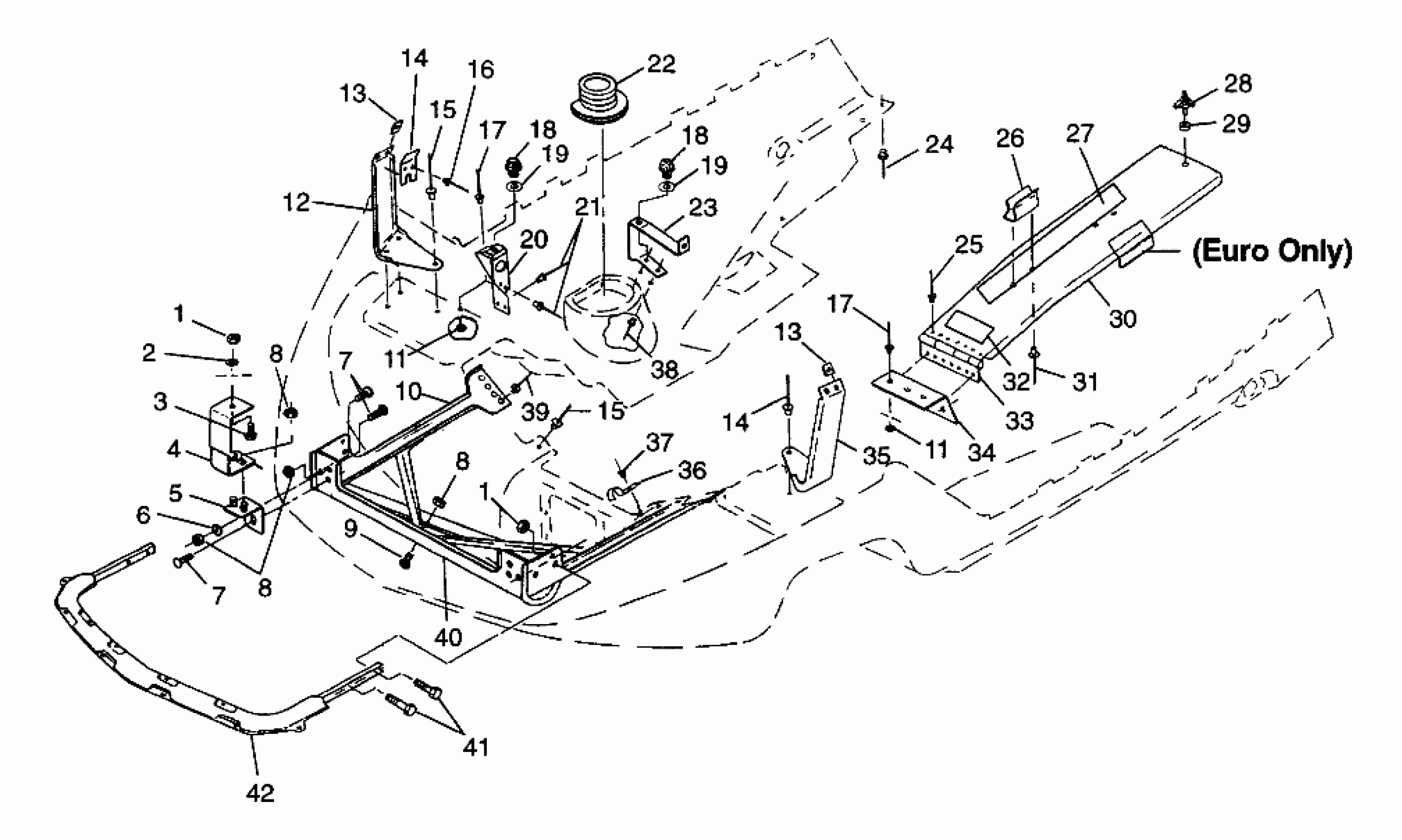

Polaris XLT LTD - 0973756 NOSEPAN XLT LTD 0973756 and EUROPEAN XLT LTD E973756 (4937793779A008) Diagram
#
1
NUT FLEX-LOC(10)
7542303
$6.39
1
NUT FLEX-LOC(10)
7542303
$6.39
2
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
3
SCREW(10)
7512310
$2.39
4
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
5
MOUNT,HINGE,BLK.
1011982-067
$45.99
6
WASHER,WROUGHT(10)
7558302
$1.59
7
BOLT(10)
7512193
$2.39
7
BOLT(10)
7512193
$2.39
8
NUT(10)
7542153
$1.59
8
NUT(10)
7542153
$1.59
8
NUT(10)
7542153
$1.59
9
BOLT(10)
7512298
$3.99
10
SUPPORT,LH,BUMPER
1012327-067
$63.49
10
SUPPORT,RH,BUMPER
1012328-067
$133.29
11
BURR,RIVET(50)
7555904
$1.49
11
BURR,RIVET(50)
7555904
$1.49
12
BRKT,RH,SIDEPANEL
5240995
Unavailable
13
NUT, RETAINER(10)
7542146
Unavailable
13
NUT, RETAINER(10)
7542146
Unavailable
14
SHIELD,FASTENER
5240769
$0.90
14
SHIELD,FASTENER
5240769
$0.90
15
RIVET(50)
7621485
$1.49
15
RIVET(50)
7621485
$1.49
16
RIVET(50)
7621318
$1.49
17
RIVET(50)
7621433
$1.49
17
RIVET(50)
7621433
$1.49
18
DAMPNER, VIB.
5410467
$8.79
18
DAMPNER, VIB.
5410467
$8.79
19
WASHER, THRUST(10)
7555788
$4.99
19
WASHER, THRUST(10)
7555788
$4.99
20
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
21
RIVET-3/16-.090-.290
7661637
$1.49
22
BOOT,EXH.OUTLET
5410919
Unavailable
23
BRKT,R.MUFFLER
1012298-067
Unavailable
24
RIVET, BLIND(50)
7621467
$1.49
25
RIVET, POP(50)
7621330
$1.49
26
CLIP,BELT RETAINER
5222769
$8.79
27
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
28
KNOB,CLUTCH GUARD(10) (Incl. 29)
7080523
$4.03
29
BUMPER,CLUTCHGUARD
5431928
$2.39
30
GUARD,CLUTCH (US)
5240999
Unavailable
30
GUARD ASM,CLUTCH,EV,(EURO) (Euro)
1012430
Unavailable
31
RIVET(50)
7621429
$1.49
32
DECAL,SUSP,X-12
7076275
Unavailable
33
HINGE
5210728
Unavailable
34
MT,FR.CLUTCHGUARD
5222904
Unavailable
35
BRKT,LH,SIDEPANEL
5240994-067
Unavailable
36
CLIP, HALF(10)
7080393
$3.19
37
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
38
RIVET(50)
7621472
$1.49
39
RIVET,INTERLOCK,B(50)
7661638
$1.49
40
BRACE,HD.SUPPORT,BLK.
5241003-067
$49.21
41
SCREW(10)
7512307
$3.99
42
BUMPER,FRONT
2670146-067
Unavailable
