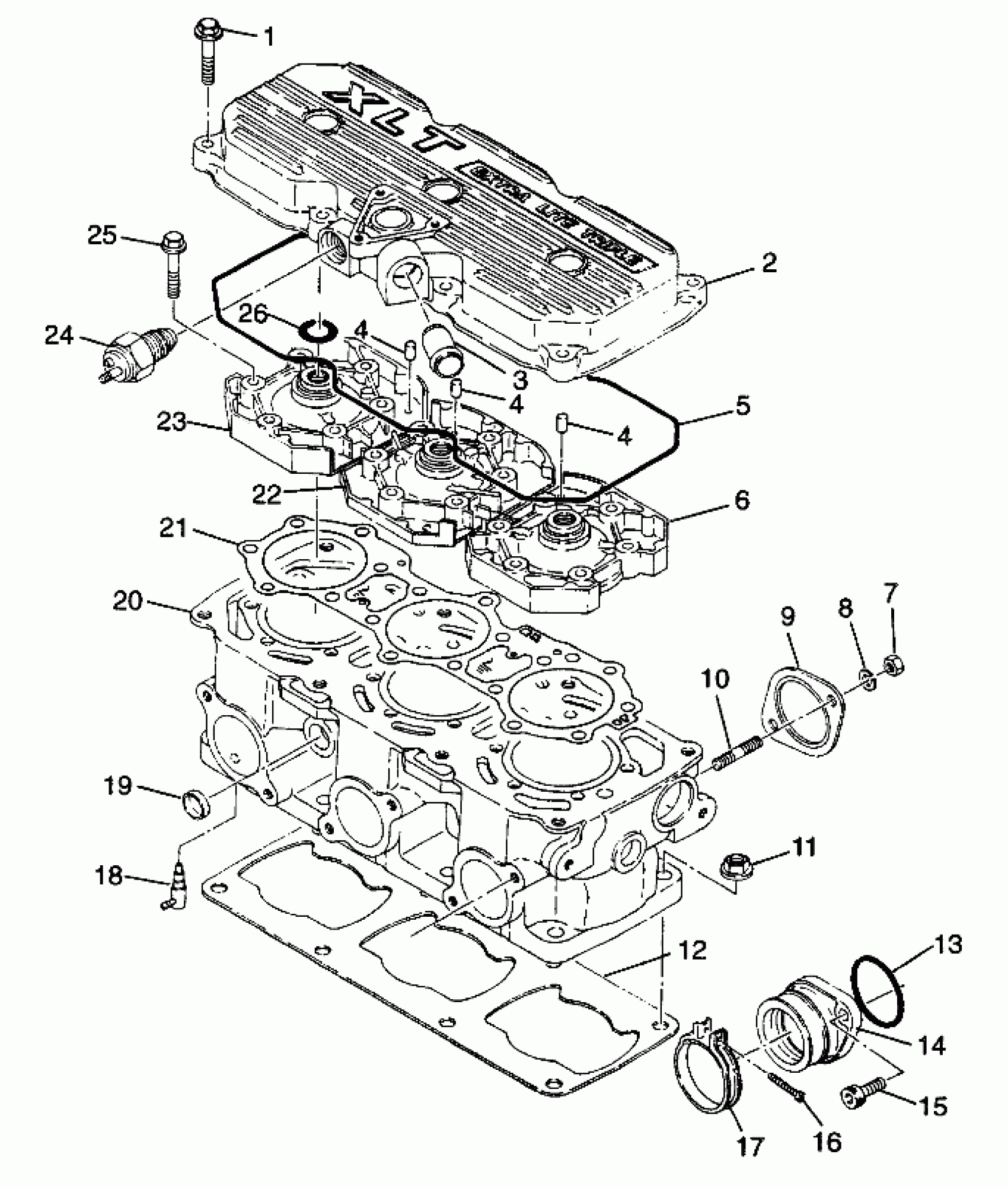

Polaris XLT LTD - 0973756 CYLINDER XLT LTD 0973756 and EUROPEAN XLT LTD E973756 (4937793779C005) Diagram

#

Description
Price

1

Bolt, Flange

3084437

Unavailable

2

COVER,HEAD,(3 CYL) (Incl. 3)

3085190

Unavailable

3

Pipe, Water

3083452

Unavailable

4

PIN, DOWEL

3084721

$4.79

4

PIN, DOWEL

3084721

$4.79

4

PIN, DOWEL

3084721

$4.79

5

O-RING, (HEADCOVER) (Head Cover)

3084434

Unavailable

6

HEAD,CYL,#1,(MAG) (MAG)

3085423

Unavailable

7

NUT(10)

3080285

Unavailable

8

WASHER LOCK ,(10)

3080530

$3.19

9

GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos

3084439

Unavailable

10

STUD,(10)

3085326

Unavailable

11

NUT-FLANGE(10)

3082911

$1.99

12

GASKET, CYLINDER (Cylinder)

3084593

Unavailable

13

O-RING Substituted by 3085619

3084272

Unavailable

14

ADAPTER (Incl. 13)

3084438

Unavailable

15

Bolt, Allen

3081330

$3.99

16

SCREW,(10)

3081497

$2.39

17

BAND-CARB MTG. (Incl. 16)

3082257

Unavailable

18

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

19

PLUG

3084428

$3.51

20

CYLINDER (Incl. 10, 19)

3085017

$834.99

21

GASKET,HEAD

3085005

Unavailable

22

HEAD,CYL.#2,(CTR) (Center)

3085424

Unavailable

23

HEAD,CYL.#3,(PTO) (PTO)

3085425

Unavailable

24

SWITCH,THERMAL,IOS (105

3084284

Unavailable

25

BOLT, FLANGE ,(10)

3084435

Unavailable

26

O RING

3085192

Unavailable
