CARBURETOR XLT LTD 0973756 and EUROPEAN XLT LTD E973756 (4937793779C008)

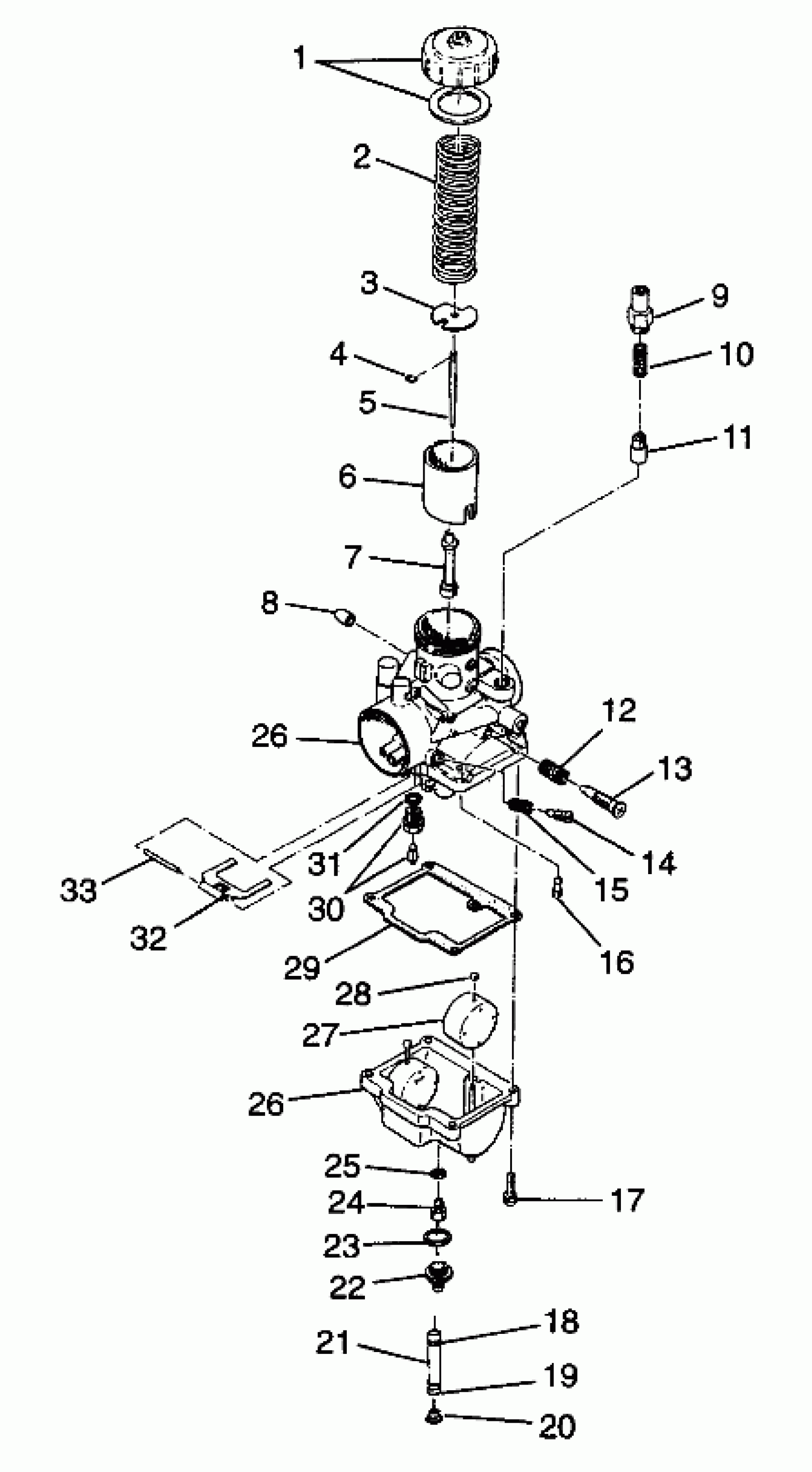

Polaris XLT LTD - 0973756 CARBURETOR XLT LTD 0973756 and EUROPEAN XLT LTD E973756 (4937793779C008) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING,THROTTLE
3130439
$13.59
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET, NEEDLE (6DP17-3)
3130374
Unavailable
6
VALVE, THROTTLE (2.5)
3130466
Unavailable
7
NEEDLE JET Substituted by 3130376 (166)
3130166
Unavailable
8
CAP
3130479
$14.56
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SCREW,AIR
3130011
$19.99
15
SPRING,AIR ADJUST
3130012
$8.89
16
JET,PILOT,#35(10) (#35)
3130066
$8.89
17
SCREW & WASHER(10)
3130025
$3.19
18
CLAMP,SPRING,(10)
7080534
$1.59
19
CLAMP,HOSE(10)
7080544
Unavailable
20
PLUG,TRAP
5431893
$12.94
21
FUEL LINE, 5 FT.
8450045-153
$99.99
22
NIPPLE
3130573
$32.37
23
O RING
3130239
Unavailable
24
JET,MAIN,HX.HD#260(10) (#260)
3130129
$7.27
25
WASHER (10)
3130014
$1.59
26
CARBURETOR Substituted by 3130946 (Incl. 1-17, 22-33)
3130699
Unavailable
26
CARBURETOR Substituted by 3130946 (Incl. 1-17, 22-33)
3130699
Unavailable
27
FLOAT ASM.
3130430
$43.56
28
CAP,(10)
3130237
$4.03
29
PACKING,FLOAT CHAMBER
3130020
$16.17
30
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
31
PACKING(10)
3130017
$4.03
32
ARM,FLOAT
3130018
$24.27
33
PIN, FLOAT
3130361
$8.89
