NOSEPAN XLT CLASSIC 0983857 (4942264226A009)

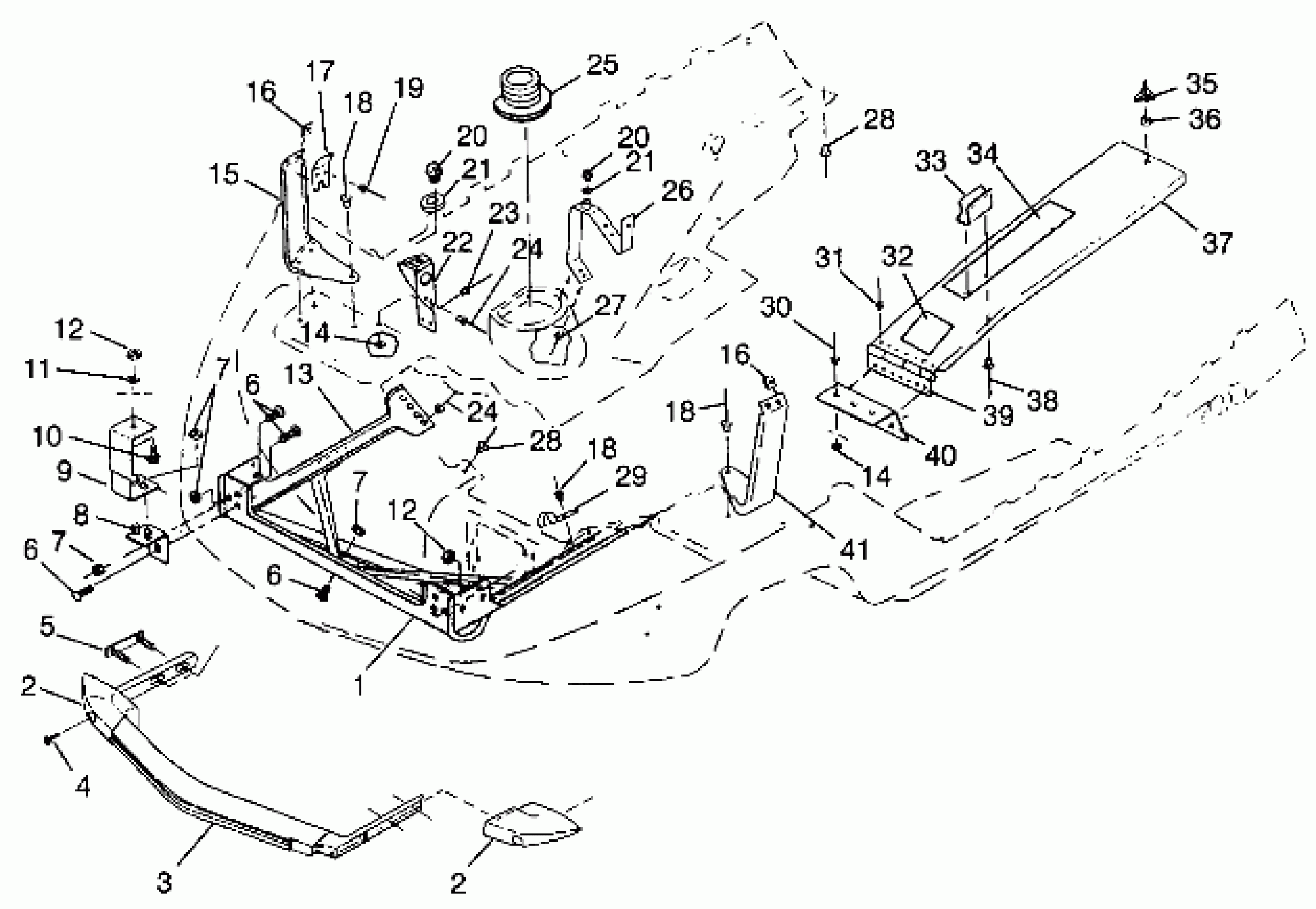

Polaris XLT CLASSIC - 0983857 NOSEPAN XLT CLASSIC 0983857 (4942264226A009) Diagram
#
1
BRACE,HD.SUPPORT,BLK.
5241003-067
$49.21
2
CAP,BUMPER,BLK.MET.
5432429-177
Unavailable
2
CAP,BUMPER,BLK.MET.
5432429-177
Unavailable
3
BUMPER ASM,FRT,EVOLVED,BLK
2670184-067
Unavailable
4
SCREW,(10)
7512024
$4.79
5
STUDPLATE ASM,BUMP.SUPP.
1012648
Unavailable
6
BOLT,(10)
7515203
$3.99
6
BOLT,(10)
7515203
$3.99
6
BOLT,(10)
7515203
$3.99
7
NUT(10)
7542153
$1.59
7
NUT(10)
7542153
$1.59
7
NUT(10)
7542153
$1.59
8
MOUNT,HINGE,BLK.
1011982-067
$45.99
9
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
10
SCREW(10)
7512310
$2.39
11
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
12
NUT FLEX-LOC(10)
7542303
$6.39
12
NUT FLEX-LOC(10)
7542303
$6.39
13
SUPPORT,LH,BUMPER
1012327-067
$63.49
13
SUPPORT,RH,BUMPER
1012328-067
$133.29
14
BURR,RIVET(50)
7555904
$1.49
14
BURR,RIVET(50)
7555904
$1.49
15
BRKT,RH,SIDEPANEL
5240995
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
17
SHIELD,FASTENER
5240769
$0.90
18
RIVET(50)
7621485
$1.49
18
RIVET(50)
7621485
$1.49
18
RIVET(50)
7621485
$1.49
19
RIVET(50)
7621318
$1.49
20
DAMPNER, VIB.
5410467
$8.79
20
DAMPNER, VIB.
5410467
$8.79
21
WASHER, THRUST(10)
7555788
Unavailable
21
WASHER, THRUST(10)
7555788
Unavailable
22
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
23
RIVET(50) Substituted by 7661130
7661643
Unavailable
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
25
BOOT,EXH.OUTLET
5410919
Unavailable
26
BRKT,R.MUFFLER
1012298-067
Unavailable
27
RIVET(50)
7621472
$1.49
28
RIVET, BLIND(50)
7621467
$1.49
28
RIVET, BLIND(50)
7621467
$1.49
29
CLIP, HALF(10)
7080393
$3.19
30
RIVET(50)
7621433
$1.49
31
RIVET, POP(50)
7621330
$1.49
32
DECAL,SUSP.SETUP,X-12
7077194
Unavailable
33
CLIP,BELT RETAINER
5222769
$8.79
34
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
35
KNOB,CLUTCH GUARD(10)
7080523
$4.03
36
BUMPER,CLUTCHGUARD
5431928
$2.39
37
GUARD,CLUTCH
5240999
Unavailable
38
RIVET(50)
7621429
$1.49
39
HINGE
5210728
Unavailable
40
MT,FR.CLUTCHGUARD
5222904
Unavailable
41
BRKT,LH,SIDEPANEL
5240994-067
Unavailable
