HOOD XLT CLASSIC 0983857 (4942264226A010)

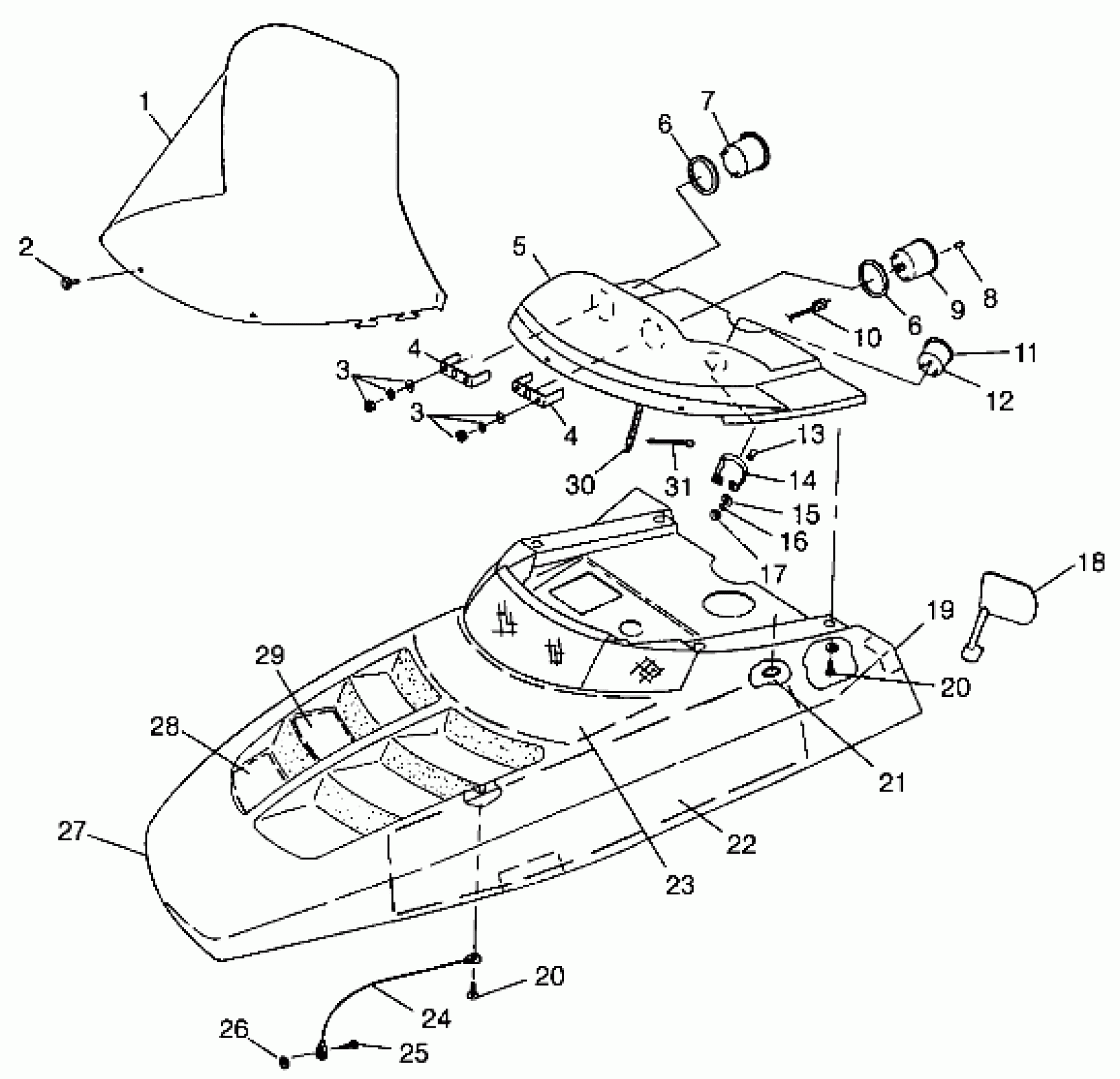

Polaris XLT CLASSIC - 0983857 HOOD XLT CLASSIC 0983857 (4942264226A010) Diagram
#
1
WNDSHLD,STD,SMOKE,EV.
5431930
Unavailable
2
RIVET,PLASTI-LOC.(50)
7621509
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
5
HOUSING ASM,INST. (Incl. Warning Decals)
2652148
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
7
TACH ASM,6 PULSE,5 IN. (Incl. 3, 4, 6)
3280250
$196.17
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDO,BACKLIT (Incl. 3, 4, 6, 8)
3280204
Unavailable
10
CABLE,SPEEDO.
3280094
$60.70
11
CUSHION,FUELGAUGE,(2"),RUBBER
3280230
$3.41
12
FUELGAUGE,BACKLIT,2"
3280226
$96.97
13
SPACER,BRKT,(FUELGAUGE)
3280228
$2.81
14
BRACKET,FUELGAUGE,(2")
3280229
Unavailable
15
Washer
3280231
$0.24
16
WASHER,SPLITLOCK
3280233
Unavailable
17
Nut
3280232
$1.49
18
NUT, WELL(10)
7541901
$6.39
18
SCREW(10)
7512040
Unavailable
18
MIRRORS,DELUXE,PR
2871531
$69.99
19
FOIL,TAPE,1.5X6
5810949
$3.19
20
SCREW(10)
7512070
Unavailable
20
SCREW(10)
7512070
Unavailable
21
RETAINER,WINDSHIELD,(10)
5410970
$1.49
22
FOAM,LH,HOOD
5810876
Unavailable
22
FOAM,RH,HOOD
5810877
Unavailable
22
FOIL,RH,HOOD
5810905
Unavailable
23
FOAM,HOOD,CTR.
5810875
Unavailable
24
CABLE,HOOD RETAINER
7080521
$24.27
25
SCREW(10)
7511930
$2.39
26
NUT FLEX LOC(10)
7541906
$3.19
27
HOOD,FOAM/FOIL,LIQ,B SPRC (Incl. Foam & Foil)
2631591-228
Unavailable
28
FOIL,HOOD,FRONT
5810874
Unavailable
29
FOIL,HOOD,CTR.
5810873
Unavailable
30
HARNESS, H/L
2460528
Unavailable
30
FUSE,(.2 AMP) Substituted by 4060139
4060134
Unavailable
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
