FRONT SUSPENSION and SKI XLT CLASSIC 0983857 (4942264226A013)

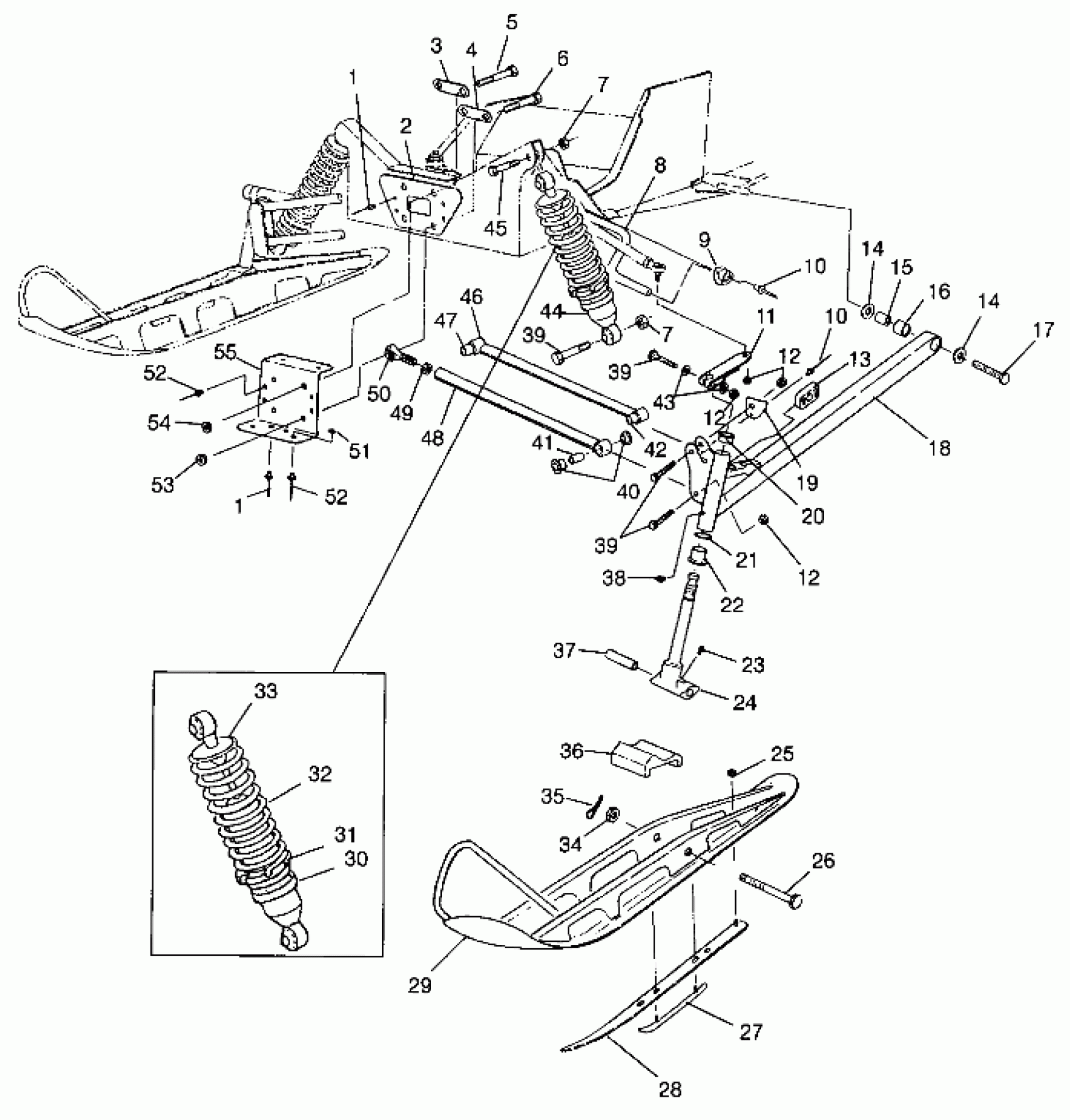

Polaris XLT CLASSIC - 0983857 FRONT SUSPENSION and SKI XLT CLASSIC 0983857 (4942264226A013) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER TOP
5211344
$7.27
4
STRAP,SPACER BOTTOM
5211345
$12.99
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
9
BUSHING,SWAYBAR,5/8 Substituted by 5432038
5432885
$19.84
10
RIVET,(50)
7621477
$1.19
10
RIVET,(50)
7621477
$1.19
11
ARM,STRG,BLK
5241560-067
Unavailable
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
SLIDE,SWAYBAR,5/8
5432331
$28.32
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH (Incl. 15, 16)
1822384
Unavailable
18
ARM,TRLG,RH (Incl. 15, 16)
1822386
Unavailable
19
STOP,LH,STRG,BLK.
5241569-067
$7.27
19
STOP,RH,STRG,BLK.
5241570-067
$7.27
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
24
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
25
NUT-5/16-18 NYLOK-Y
7542324
$1.49
26
BOLT(10)
7515462
$8.79
27
SKAG, BLK.
1820318-067
$49.99
28
Plate, Skag
1011829-067
$54.99
29
SKI WELD
1820430-067
Unavailable
30
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
31
RING,SPRING PRELOAD ADJ.
5431734
$52.60
32
SPRING,COMP,BLK.
7041398-067
Unavailable
33
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
34
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
35
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
36
Stop, Rubber
5411083
$12.94
37
BUSHING,PIVOT,(10)
5010158
$19.99
38
ZERK,FITTING,THREADED(10)
7080433
$1.49
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
40
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
43
WASHER(10) Substituted by 7555832
7555851
Unavailable
44
SHOCK,GAS,IFS,SELECT
7041503
Unavailable
45
BOLT(10) Substituted by 7515415
7515515
Unavailable
46
ROD,RAD,UPPER,FIXED
1822510
$38.89
47
BUSHING,PIVOT,7/16
5411095
$15.99
48
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
49
NUT-JAM(10)
7542711
$2.39
50
ROD END Substituted by 7061027
7060162
$48.56
51
BURR,RIVET(50)
7555904
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
53
NUT FLEX,(10)
7542703
Unavailable
54
NUT, LOCK,(10)
7542503
$10.39
55
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
