ENGINE MOUNTING - 0983857 (4942264226c001)

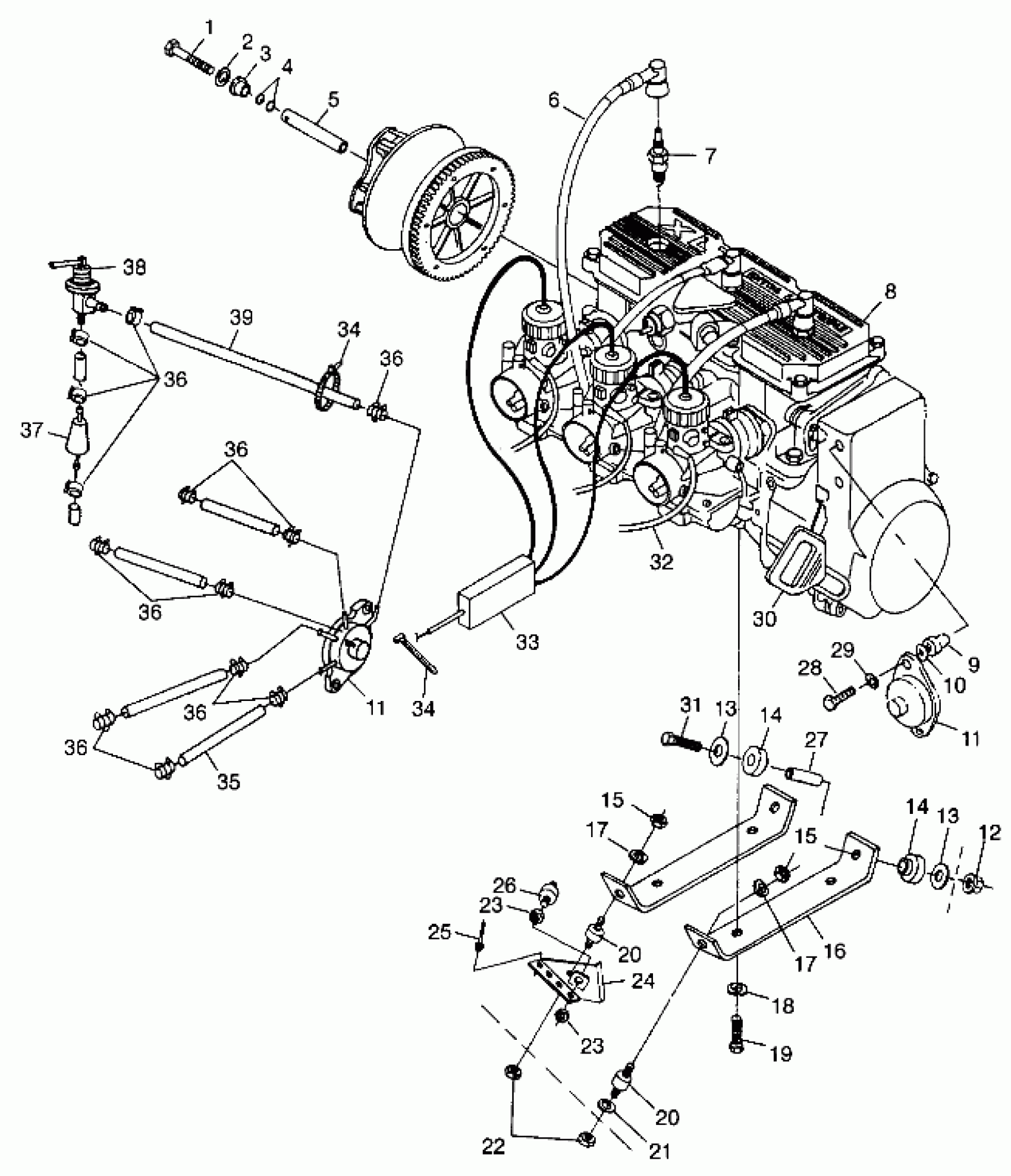

Polaris XLT CLASSIC - 0983857 ENGINE MOUNTING - 0983857 (4942264226c001) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
7
SPARKPLUG(8)
3070165
$3.99
8
ENG.(S.B.)EC58PL-08 [No Longer Available]
3085354
Unavailable
9
NUT-WELL(10)
7541923
$5.59
10
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
11
Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C10, Ref. 2)
-------
Unavailable
11
Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C10, Ref. 2)
-------
Unavailable
12
NUT,FLANGE(10)
7542522
$5.59
13
WASHER(10)
7555740
$1.59
13
WASHER(10)
7555740
$1.59
14
MOUNT, ENGINE
5410390
Unavailable
14
MOUNT, ENGINE
5410390
Unavailable
15
NUT FLEX LOC,(10)
7542402
$6.39
15
NUT FLEX LOC,(10)
7542402
$6.39
16
PLATE,ENGINE,LH
5242507
Unavailable
16
PLATE,ENGINE,RH
5242508
Unavailable
17
WASHER(10) Substituted by 7555806
7555720
$0.79
17
WASHER(10) Substituted by 7555806
7555720
$0.79
18
WASHER LOCK(10)
7553101
$3.99
19
BOLT(10)
7512575
Unavailable
20
MOUNT,ENG.
3110061
$84.99
20
MOUNT,ENG.
3110061
$84.99
21
WASHER,FLAT(10)
7555915
$3.19
22
NUT,FLEXLOCK,(10)
7547008
$6.39
23
NUT,HEX(10)
7542414
$4.79
23
NUT,HEX(10)
7542414
$4.79
24
LIMITER
1011503-067
Unavailable
25
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
STOP,TORQUE,COARSE
3110056
Unavailable
27
SPACER, (MTR.MT.)
5332778
Unavailable
28
SCREW(10)
7512222
$2.39
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
30
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
31
SCREW(10)
7512530
$5.59
32
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
33
CABLE,THROTTLE,W/OIL
7080565
Unavailable
34
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
35
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
37
FILTER FUEL,(10)
2530008
$4.84
38
VALVE,FUEL SHUT-OFF
7052060
Unavailable
39
FUELLINE,MARINE/SNO,1525CM
8450079-1525
Unavailable
