COOLING SYSTEM - 0983857 (4942264226b008)

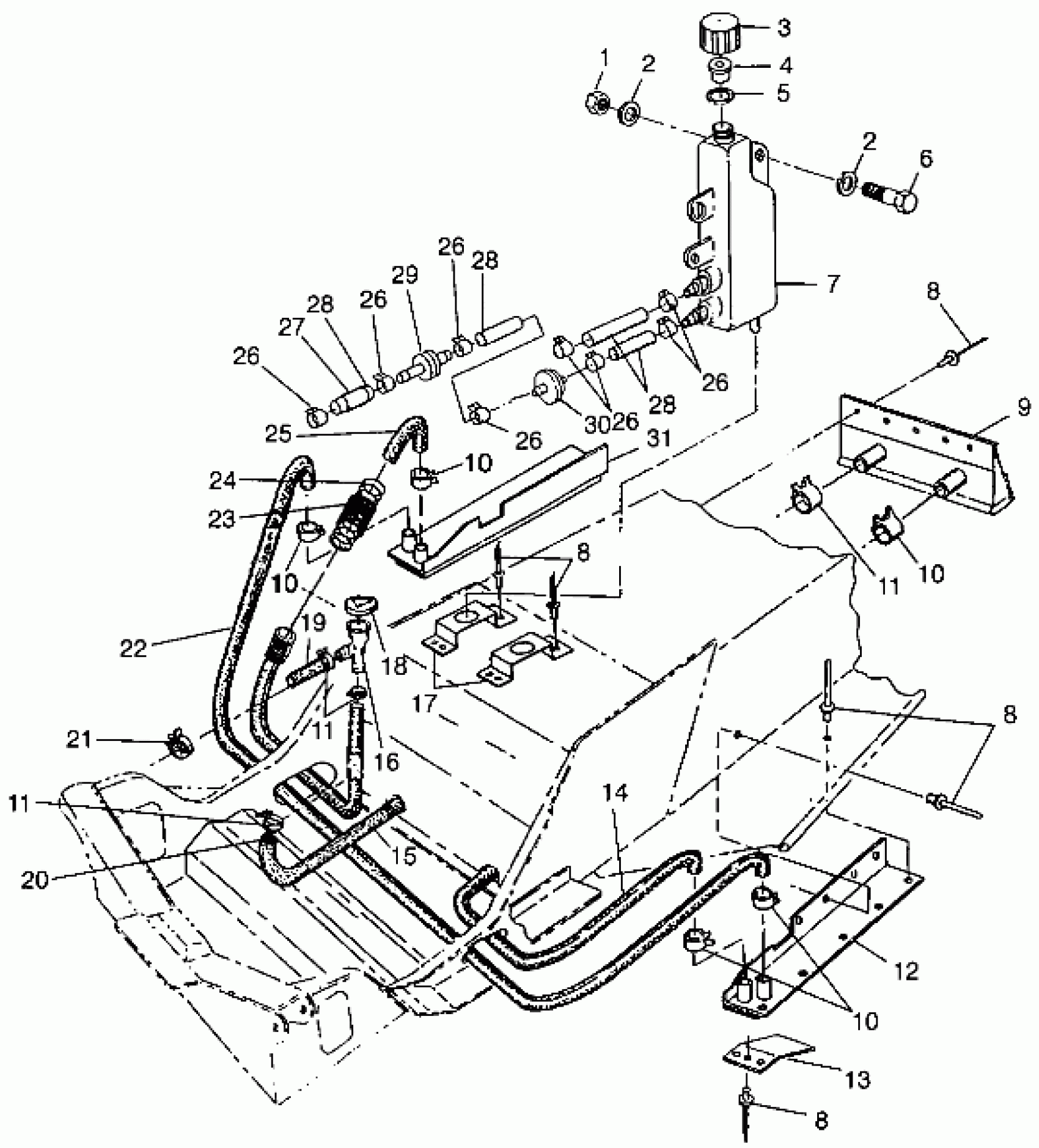

Polaris XLT CLASSIC - 0983857 COOLING SYSTEM - 0983857 (4942264226b008) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
12
COOLING WELD,LH,SIDE,LT
2511250
Unavailable
13
GUARD, COOL.EXT.
5222863
$32.99
14
HOSE,LH,SIDE/CTR.
5411114
$17.43
15
HOSE, CENTER
5410673
Unavailable
16
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
17
BRKT,OILTANK,COINED
5241334
$9.70
18
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
19
HOSE,ENG.OUT/FILLER
5411010
$24.27
20
SPRING,HOSE RETAINER
7042041
Unavailable
21
CLAMP,HOSE,(10)
7080614
$7.19
22
HOSE,CROSSOVER
5410557
Unavailable
23
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
24
SPRING,HOSE RETAINER
7041079
$4.95
25
HOSE,RH,FILLER OUT,EXTRUSION
5411011
Unavailable
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
29
VALVE, CHECK
7052038
$10.51
30
FILTER,COOLANT,LGE.
2530024
Unavailable
31
COOLING WELD,RH,SIDE,LT
2511251
$205.99
