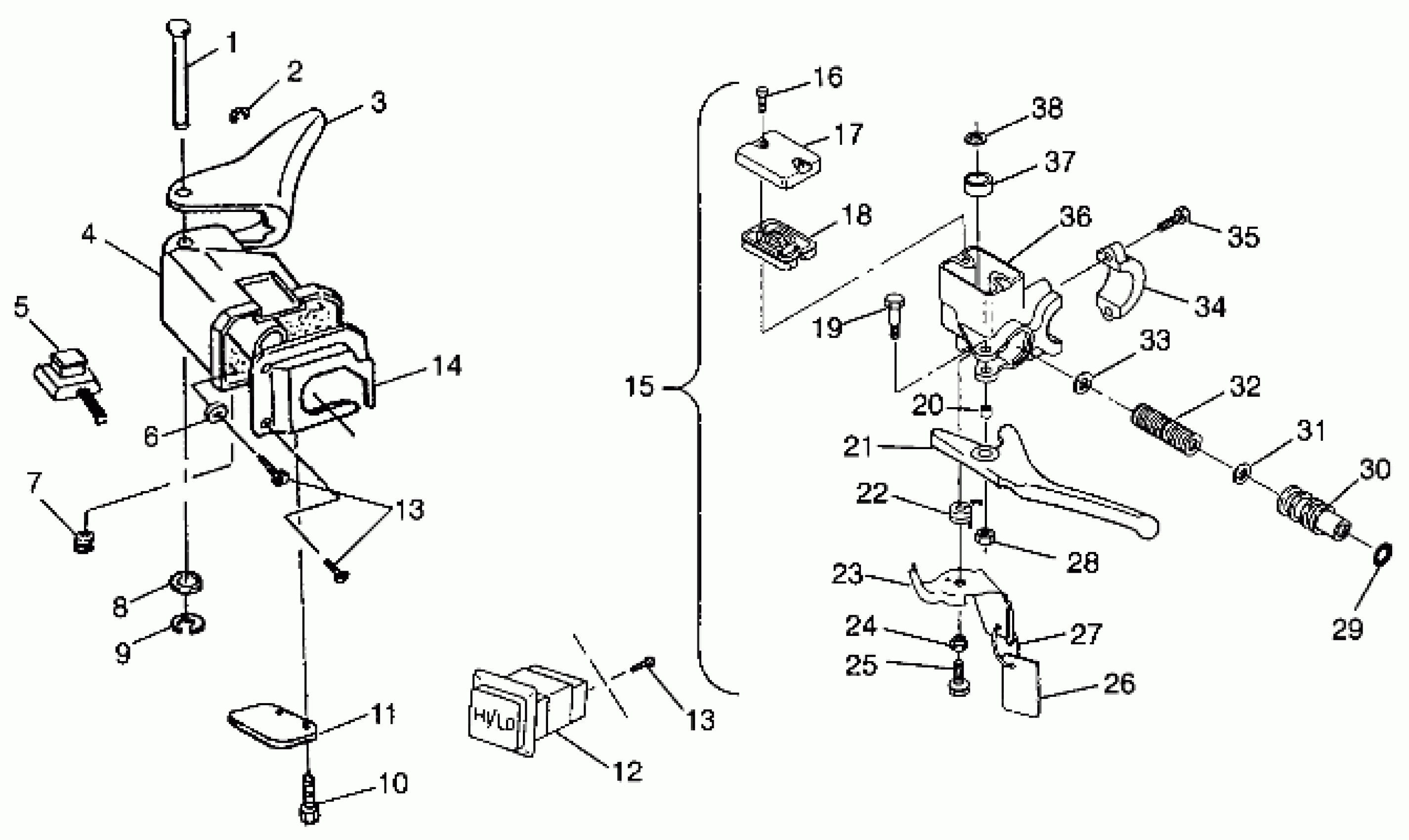

Polaris XLT CLASSIC - 0983857 CONTROLS - 0983857 (4942264226b003) Diagram
#
Description
Price
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER-THROTTLE
5430638
Unavailable
3
LEVER ASM,W/WARMER
2010094
Unavailable
4
BLOCK,THROTTLE/BRAKE
5431592
$49.99
5
SWITCH,AUX.SHUT-OFF
4110106
$94.99
6
RIVET BURR(50)
7555727
$1.49
7
SCREW(10)
7512465
$3.99
8
WASHER(10)
7555730
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
10
SCREW(10)
7511858
$3.99
11
HOLDER-WIRE
5432261
$24.27
12
SWITCH, DIMMER
4110136
Unavailable
13
SCREW-SEMS(10)
7511848
$3.99
13
SCREW-SEMS(10)
7511848
$3.99
14
BLOCK-ADAPTER
5430604
$13.75
15
MASTER CYL.ASM,3/4" (Incl. 16-21,28-38)
2050070
Unavailable
16
SCREW,W/WASHER(10)
7512050
$3.99
17
COVER,MASTER CYL.
5630338
Unavailable
18
GASKET,MASTER CYL.
5410527
$8.99
19
BOLT,BRAKE LEVER(10)
7512287
Unavailable
20
BUSHING,BRAKE LEVER
5332931
Unavailable
21
LEVER, BRAKE
5630409
Unavailable
22
SPRING,PK.BRAKE
7041229
$32.37
23
LEVER,PARK.BRAKE
5240809
Unavailable
24
BUSHING,PK.BRAKE LEVER
5020670
Unavailable
25
SCREW(10)
7511866
$4.79
26
TAG,PARK.BRAKE
5431389
Unavailable
27
STRAP,PARK.BRAKE TAG
7080447
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
O RING
5410163
$1.60
30
PISTON,MASTER CYL.
5020679
Unavailable
31
U PACKING SEAL
5410164
Unavailable
32
SPRING, MASTERCYL.
7041311
Unavailable
33
WASHER(10)
7555708
$3.99
34
CLAMP, MASTER CYL.
5630342
Unavailable
35
BOLT,SOCKET HEAD(10)
7512290
$4.79
36
HOUSING,MASTERCYL.
5130955
$293.65
37
BAFFLE,MASTER CYL.
1930673
Unavailable
38
WASHER, BAFFLE(10)
1930662
Unavailable
