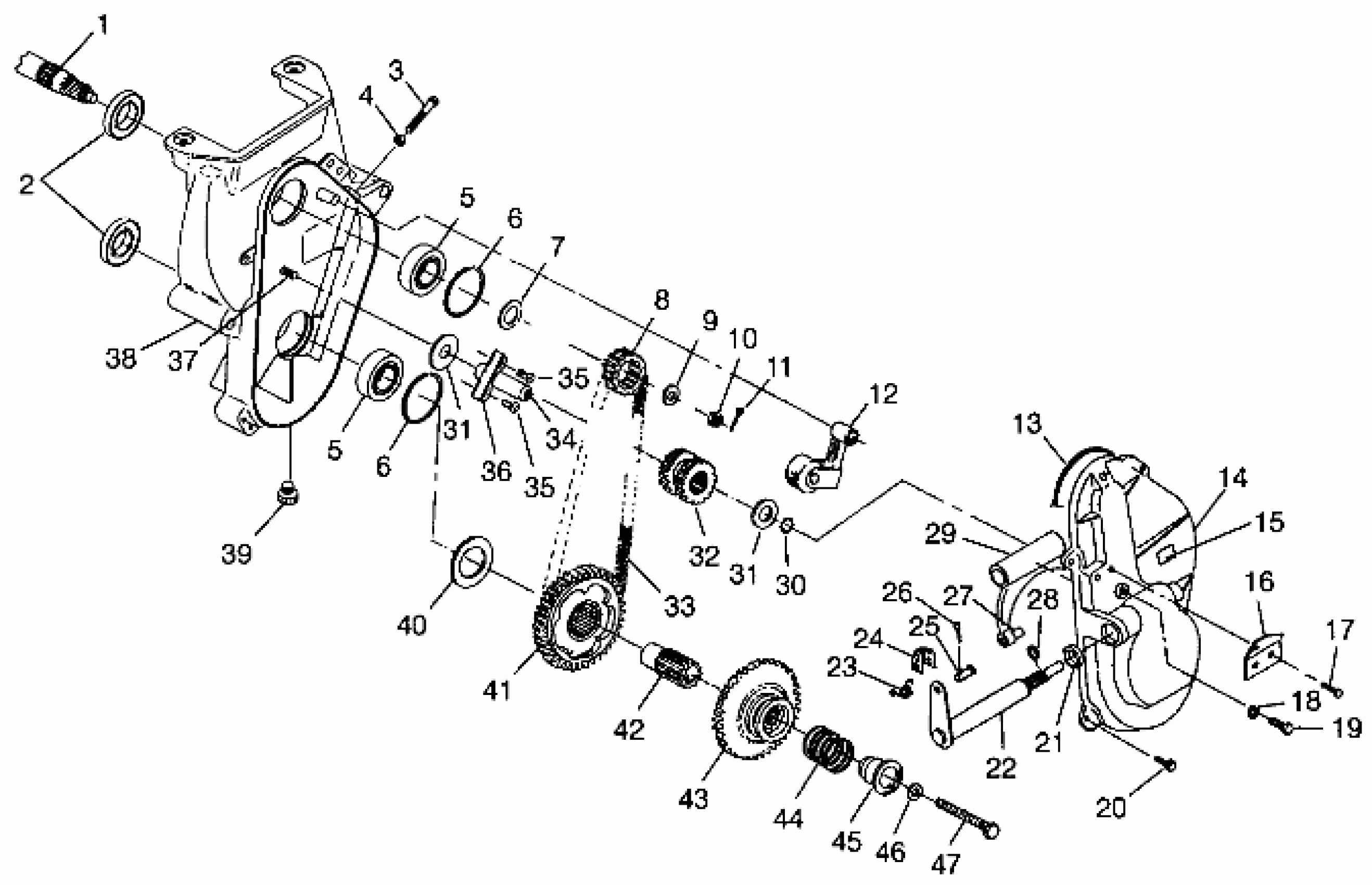

Polaris XLT CLASSIC - 0983857 CHAINCASE - 0983857 (4942264226b006) Diagram
#
1
Asm., Jackshaft (See Footnote) (See Drive Train Pg. B7, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515551
$6.39
4
NUT(10)
7542404
$1.59
5
BEARING,BALL
3514309
$15.87
5
BEARING,BALL
3514309
$15.87
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER(10)
7555917
$2.39
8
SPKT,22T,3/4W,15T SPLINE Substituted by 2900006 (3/4W)
3221089
Unavailable
9
WASHER, SLOTTED(10)
7571620
$7.19
10
NUT
7542811
Unavailable
11
COTTER PIN(10)
7661401
$1.49
12
PIN,CHAIN TIGHTENER
7662210
Unavailable
12
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
12
BEARING
3553002
$11.99
12
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
12
WHEEL,C/C IDLER
5630123
Unavailable
12
WASHER THRUST(10)
7558702
$1.59
13
GASKET-CHAINCASE
5410277
$24.99
14
COVER,CHAINCASE,REV.
5131753
Unavailable
15
DECAL,CAUT.SPKT/CHAIN
7076764
Unavailable
16
BRKT,CABLE MOUNT
5222502-067
Unavailable
17
SCREW,(10)
7517386
$1.49
18
WASHER WROUGHT(10)
7558403
$4.79
19
SCREW(10)
7512492
$1.49
20
SCREW(10)
7512242
$2.39
21
Seal, Oil
3610029
$8.89
22
SHAFT, SHIFT
1341093-067
$29.37
23
SPRING,REV.CABLE TENSION
7042044
Unavailable
24
CLEVIS
5222606
Unavailable
25
PIN, CLEVIS(10)
7661830
$3.99
26
PIN-COTTER(10)
7661205
$1.49
27
PIN, SHIFT FORK(10)
7661826
$5.65
28
RING, RETAINER(10)
7710415
$3.99
29
KIT,SHIFT FORK/SHAFT (Incl. 22,27) Fork, Shift
2200363
Unavailable
29
Fork, Shift
5130805
Unavailable
30
O RING
5410589
$4.99
31
WASHER,THRUST(10)
7555877
$3.99
31
WASHER,THRUST(10)
7555877
$3.99
32
GEAR/SPKT ASM,REV PINION Substituted by 2201574 (Rev. Pinion)
1341251
Unavailable
33
CHAIN,68P,3/4W,HYVO Substituted by 3221112 (3/4W)
3224070
Unavailable
34
SHAFT,PINION,W/WRENCH FLATS
5131770
Unavailable
35
SCREW(10)
7512019
$3.99
35
SCREW(10)
7512019
$3.99
36
BRKT,CHAIN RETENTION
5222298
Unavailable
37
BOLT(10)
7515477
$34.99
38
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
39
PLUG(10)
7052115
$5.65
40
WASHER, REVERSE(10)
7555871
$5.59
41
Bearing, Needle
3555104
Unavailable
41
SPKT.ASM,41T,REV,3/4W,PM (3/4W) w/Bearing
1341228
Unavailable
42
Coupler, Drive
5130720
Unavailable
43
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
44
SPRING,COMPRESSION
7041225
$1.49
45
RETAINER,DRIVE COUPLER
5130727
Unavailable
46
LOCK WASHER(10)
7552901
$1.49
47
SCREW, NYLOK(10)
7515348
$4.79
