TUNNEL XLT SKS 0970556 and XLT RMK 0970956 (4937693769A006)

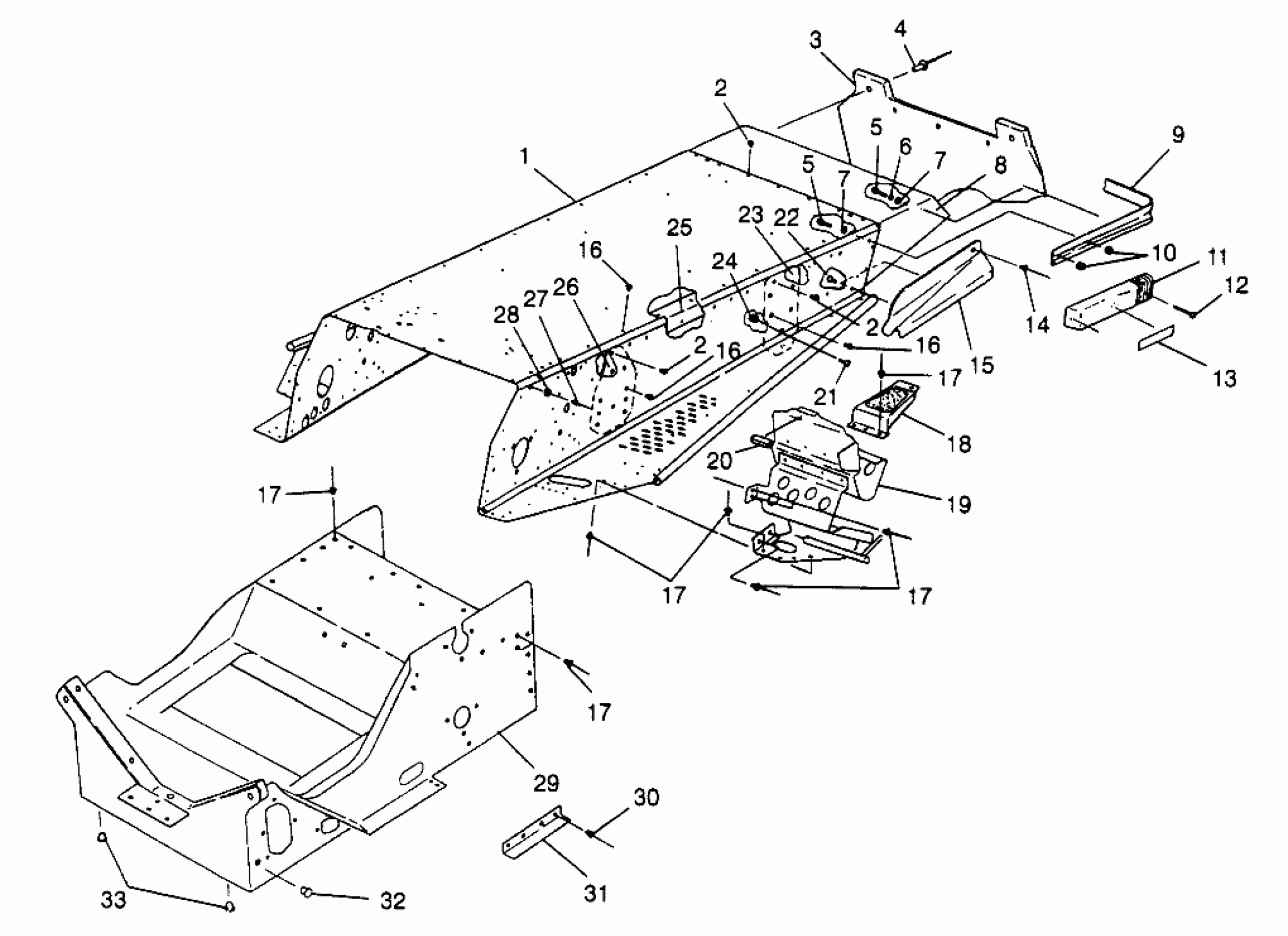

Polaris XLT - 0970756 TUNNEL XLT SKS 0970556 and XLT RMK 0970956 (4937693769A006) Diagram
#
1
TUNNEL ASM,X-10,133 (RMK) (Incl. 8, 23, 26, 25)
1012519
$420.41
1
TUNNEL,X-10,133 (SKS) (Incl. 8, 23, 26, 25)
1012561
$462.68
2
RIVET,SEMI-TUBE,(50)
7661841
$1.49
2
RIVET,SEMI-TUBE,(50)
7661841
$1.49
2
RIVET,SEMI-TUBE,(50)
7661841
$1.49
3
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106 (SKS)
5432149
Unavailable
3
FLAP,SNOW (RMK)
5432033
Unavailable
4
POP RIVET(50)
7621418
$1.49
5
BOLT(10)
7512240
$3.99
5
BOLT(10)
7512240
$3.99
6
LOCK WASHER(10)
7552801
$1.59
7
WASHER(10)
7558301
$1.49
7
WASHER(10)
7558301
$1.49
8
PANEL ASM,TUNNELBACK
1012360-067
Unavailable
9
BUMPER, REAR
2670170
Unavailable
10
NUT-LOCK(10)
7542122
$1.49
11
CAP, BUMPER, BLK.
5430930-070
Unavailable
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
14
RIVET,(50)
7621342
$1.49
15
SKIRT,SNOW,LH
5432049-070
$33.91
15
SKIRT,SNOW,RH
5432050-070
$30.16
16
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
17
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
PAD,LH FOOT SAFETY
5830007
$7.89
18
PAD,RH FOOT SAFETY
5830008
$4.92
18
FOOTREST,LH R,BLK.
5220893-067
Unavailable
18
FOOTREST,RH R,BLK.
5220894-067
$32.15
19
FOOTREST ASM, LH
1011861
Unavailable
19
FOOTREST ASM,RH,BLK.
1011892
Unavailable
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
BOLT, BLACK (RMK)
7515494
$3.03
22
SCREW(10)
7512091
$3.99
23
BRKT,LH,R.SUSP,BLK.
1012563-067
Unavailable
23
BRKT,RH,R.SUSP,BLK.
1012564-067
Unavailable
24
NUT(10) (RMK)
7542423
$3.99
25
BRACE,TUNNEL,REINF.CORNER Substituted by 5244452
5241852
Unavailable
26
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
26
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
27
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
28
SNAP-MALE(10)
7080227
Unavailable
29
BULKHEAD,BLK (SKS)
1012469-067
$573.29
29
BULKHEAD,BLK (RMK)
1012466-067
Unavailable
30
RIVET(50)
7621452
$1.49
31
GUARD,ADAPTER GUIDE
5222857
$12.94
32
PLUG, HOLE(10)
7080416
$5.65
33
PLUG-HOLE
7080398
$4.84
