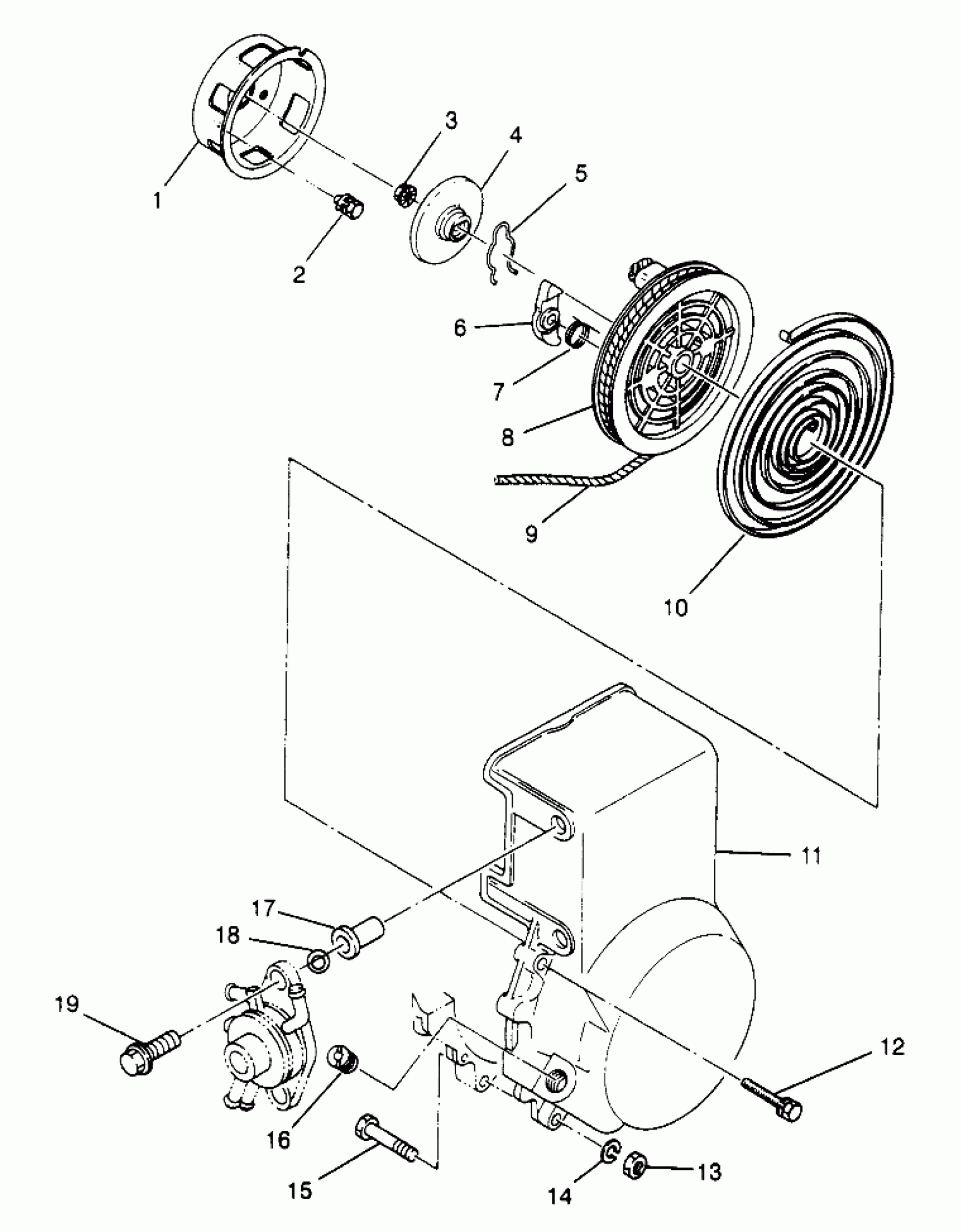

Polaris XLT - 0970756 RECOIL STARTER XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769D007) Diagram

#

Description
Price

1

Pulley, Starting

3083312

$36.41

2

BOLT&WASHER ASM.

3084224

Unavailable

3

NUT, FLANGE ,(10)

3083381

$2.99

4

Plate, Friction

3083464

$28.32

5

Spring, Friction

3083379

$24.27

6

Ratchet

3083378

$20.22

7

Spring, Return

3083463

$4.03

8

REEL, REWIND

3083377

$56.65

9

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

10

Spring, Spiral

3083376

$179.11

11

STARTER, RECOIL, CPL. (Incl. 3-11, 16)

3084470

Unavailable

11

CASE, STARTER

3084471

$205.99

12

BOLT&WASHER

3083078

Unavailable

13

NUT(10)

3080119

$2.39

14

WASHER LOCK ,(10)

3080530

$3.19

15

BOLT(10)

3084773

$1.49

16

GUIDE-ROPE

3083107

Unavailable

17

NUT-RUBBER

3083240

Unavailable

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

19

SCREW&WASHER,(10)

3083784

$2.39
