REAR TORQUE ARM (XLT/RMK) XLT 0970756 and XLT RMK 0970956 (4937693769C003)

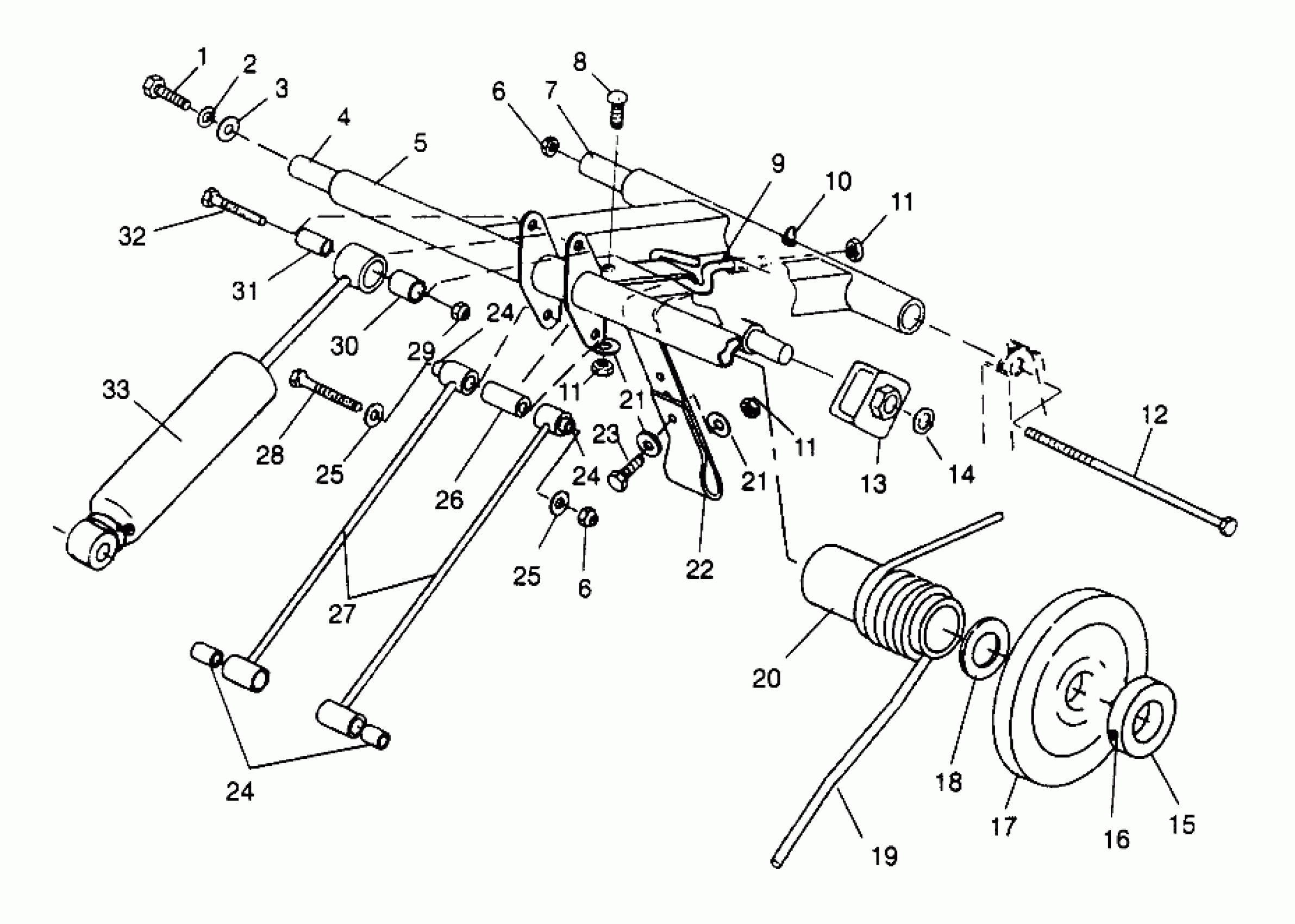

Polaris XLT - 0970756 REAR TORQUE ARM (XLT/RMK) XLT 0970756 and XLT RMK 0970956 (4937693769C003) Diagram
#
1
BOLT(10)
7515526
$1.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
SHAFT,R.TORQUE,UPPER
5020845
$63.99
5
KIT,R.TORQUE ARM
2200914
Unavailable
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
Shaft
5333536
Unavailable
8
BOLT(10)
7512377
$4.79
9
BOLT,EYE
7010050
Unavailable
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
Screw
7517232
$19.99
13
ROLLER, SPRING ADJ.
5431168
Unavailable
14
CLIP-PUSH ON
7080394
$2.39
15
COLLAR,BRG LOCK
5010404
Unavailable
16
SCREW-SET(10)
7512257
$3.99
17
Wheel, Carrier
1543023
Unavailable
18
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
19
SPRING,LH,TORS(.421DIA) (.421) Std.
7041461-067
Unavailable
19
SPRING,RH,TORS(.437/77) (.437) Opt.
7041466-067
$107.99
19
SPRING,LH,TORS(.437/77) (.437) Opt.
7041465-067
Unavailable
19
SPRING,RH,TORS(.406DIA) (.406) Opt.
7041464-067
Unavailable
19
SPRING,RH,TORS(.421DIA) (.421) Std.
7041462-067
$113.32
19
SPRING,LH,TORS(.406DIA) (.406) Opt.
7041463-067
Unavailable
20
SLEEVE,TORSION SPRING
5431923
$6.39
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
STRAP,LIMITER (RR, QA)
5411061
Unavailable
23
BOLT(10)
7515307
$3.99
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333420
$11.99
27
ROD,SHOCK,(XTRA 10)133 (RMK)
1541021-067
Unavailable
27
ROD,SHOCK (XLT, SKS)
1541015-067
Unavailable
28
BOLT(10)
7515472
$2.39
29
NUT FLEX-LOC(10)
7542303
$6.39
30
BUSHING
5430537
$3.99
31
BUSHING,R.SHOCK
5333030
Unavailable
32
BOLT(10)
7512329
$3.99
33
SHOCK,GAS,X10 RR TRK,ADJ Substituted by 7041441 (XLT/SKS)
7041567
Unavailable
33
SHOCK,RR TRK,ADJ,X-10 (RMK)
7041577
Unavailable
