REAR TORQUE ARM (SKS) XLT SKS 0970556 (4937693769C004)

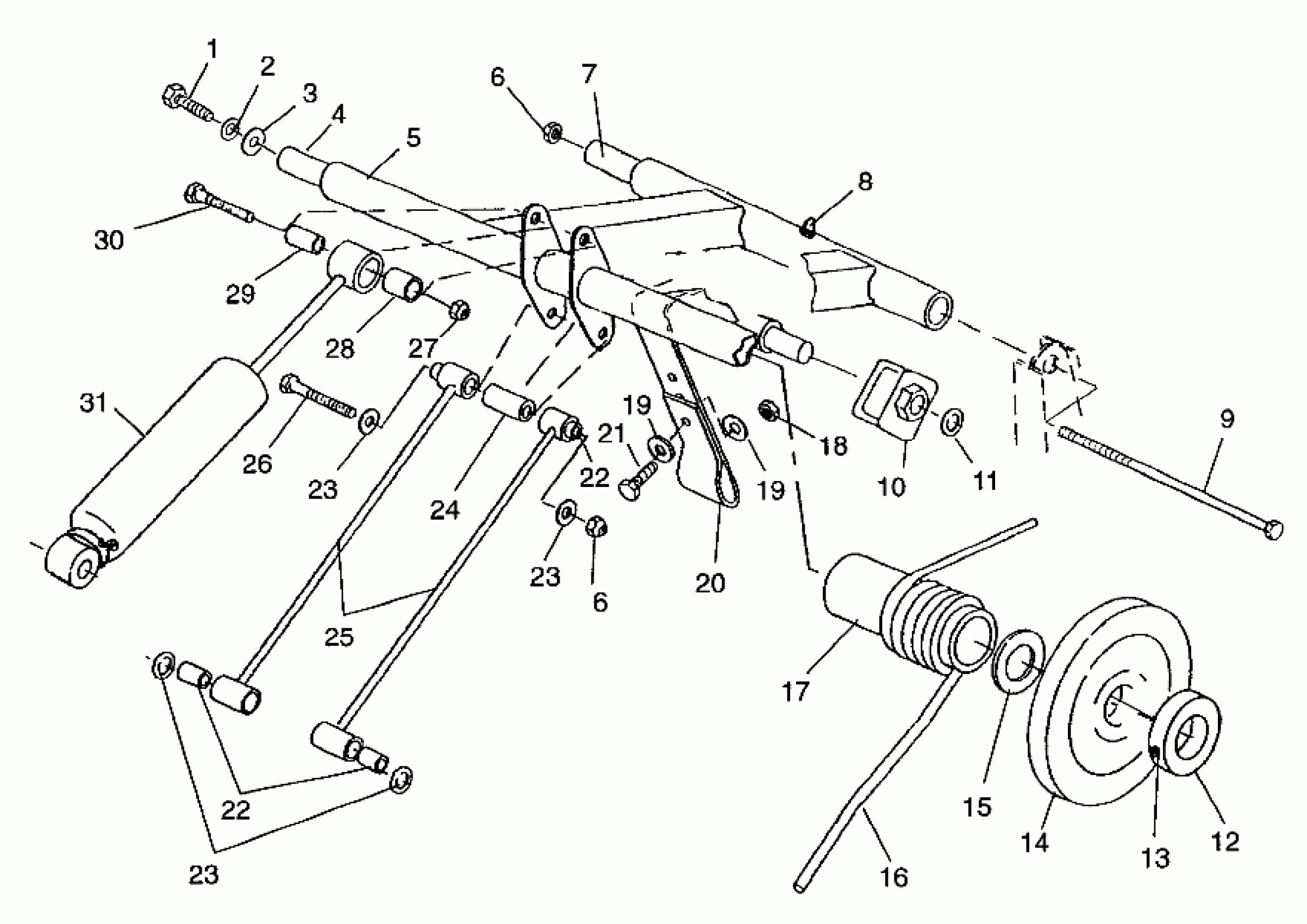

Polaris XLT - 0970756 REAR TORQUE ARM (SKS) XLT SKS 0970556 (4937693769C004) Diagram
#
Description
Price
1
BOLT(10)
7515526
$1.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
SHAFT,R.TORQUE,UPPER
5020845
$63.99
5
KIT,R.TORQUE ARM
2200914
Unavailable
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
Shaft
5333536
Unavailable
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
Screw
7517232
$19.99
10
ROLLER, SPRING ADJ.
5431168
Unavailable
11
CLIP-PUSH ON
7080394
$2.39
12
COLLAR,BRG LOCK
5010404
Unavailable
13
SCREW-SET(10)
7512257
$3.99
14
Wheel, Carrier
1543023
Unavailable
15
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
16
SPRING,LH,TORS(.421DIA) (.421 Dia.) Opt.
7041461-067
Unavailable
16
SPRING,RH,TORS(.437/77) (.437 Dia.) Opt.
7041466-067
$107.99
16
SPRING,LH,TORS(.437/77) (.437 Dia.) Opt.
7041465-067
Unavailable
16
SPRING,RH,TORS(.406DIA) (Std.)
7041464-067
Unavailable
16
SPRING,RH,TORS(.421DIA) (.421 Dia.) Opt.
7041462-067
$113.32
16
SPRING,LH,TORS(.406DIA) (Std.)
7041463-067
Unavailable
17
SLEEVE,TORSION SPRING
5431923
$6.39
18
NUT-5/16-18 NYLOK-Y
7542324
$1.49
19
WASHER(10)
7555716
$1.59
19
WASHER(10)
7555716
$1.59
20
STRAP-LIMITER,RR,SA
5411062
Unavailable
21
BOLT(10)
7515307
$3.99
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
24
Spacer
5333420
$11.99
25
ROD,SHOCK,(XTRA 10)133
1541021-067
Unavailable
26
BOLT(10)
7515472
$2.39
27
NUT FLEX-LOC(10)
7542303
$6.39
28
BUSHING
5430537
$3.99
29
BUSHING,R.SHOCK
5333030
Unavailable
30
BOLT(10)
7512329
$3.99
31
SHOCK,GAS,X10 RR TRK,ADJ Substituted by 7041441
7041567
Unavailable
