RAIL MOUNTING (SUSPENSION) XLT 0970756, XLT SKS 0970556, and XLT RMK 097095 (4937693769B013)

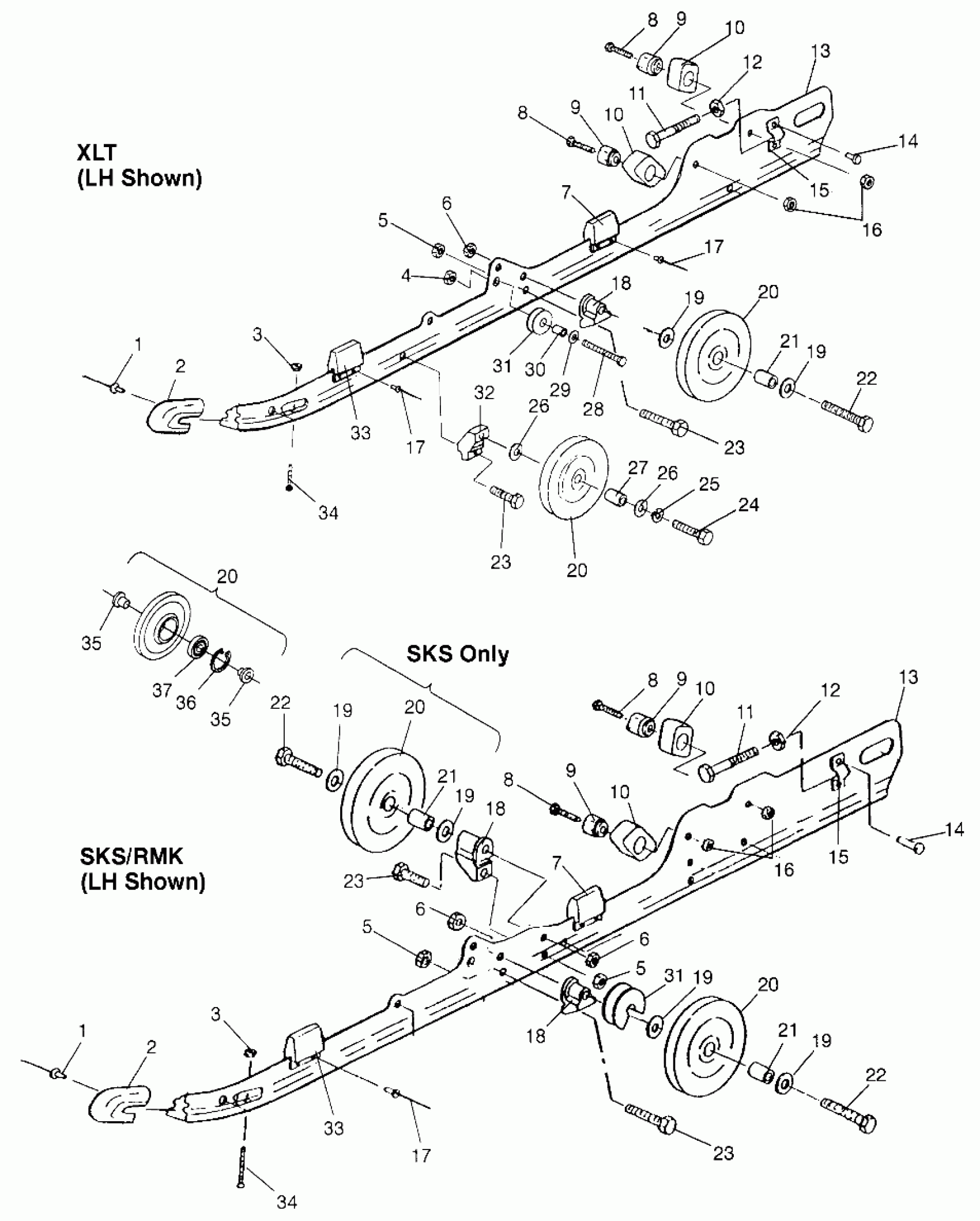

Polaris XLT - 0970756 RAIL MOUNTING (SUSPENSION) XLT 0970756, XLT SKS 0970556, and XLT RMK 097095 (4937693769B013) Diagram
#
1
RIVET(50)
7621435
$1.49
1
RIVET(50)
7621435
$1.49
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
3
NUT-LOCK(10)
7542122
$1.49
4
NUT LOCK(10) (XLT)
7542411
$3.19
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
6
NUT, NYLOCK(10) (XLT)
7542525
$4.79
6
NUT, NYLOCK(10) (SKS/RMK)
7542525
$4.79
6
NUT, NYLOCK(10) (XLT)
7542525
$4.79
6
NUT, NYLOCK(10) (SKS/RMK)
7542525
$4.79
6
NUT, NYLOCK(10) (XLT)
7542525
$4.79
6
NUT, NYLOCK(10) (SKS/RMK)
7542525
$4.79
7
REINF., BUMPER
5222629
$13.75
7
BUMPER, RAIL
5810554
$7.27
7
REINF., BUMPER
5222629
$13.75
7
BUMPER, RAIL
5810554
$7.27
8
BOLT(10)
7515537
$10.99
8
BOLT(10)
7515537
$10.99
8
BOLT(10)
7515537
$10.99
8
BOLT(10)
7515537
$10.99
9
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
9
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
9
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
9
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
10
BUMPER,F.PIVOT ARM
5410925
$12.94
10
BUMPER,F.PIVOT ARM
5410925
$12.94
10
BUMPER,F.PIVOT ARM
5410925
$12.94
10
BUMPER,F.PIVOT ARM
5410925
$12.94
11
BOLT, ADJUSTER(10)
7515455
$29.99
11
BOLT, ADJUSTER(10)
7515455
$29.99
12
NUT(10)
7542440
Unavailable
12
NUT(10)
7542440
Unavailable
13
RAIL ASM,RH,133" (SKS/RMK) (Incl. 2, 7, 15,3 3)
1540947
$339.99
13
RAIL ASM,LH,133" (SKS/RMK) (Incl. 2, 7, 15, 33)
1540946
$269.55
13
RAIL,LH,121,XTRA 10 (XLT) (Incl. 2, 7, 15, 33 )
1541146
$288.99
13
RAIL,RH,121,XTRA 10 (XLT) (Incl. 2, 7, 15, 33)
1541147
Unavailable
13
RAIL ASM,RH,133" (SKS/RMK) (Incl. 2, 7, 15,3 3)
1540947
$339.99
13
RAIL ASM,LH,133" (SKS/RMK) (Incl. 2, 7, 15, 33)
1540946
$269.55
13
RAIL,LH,121,XTRA 10 (XLT) (Incl. 2, 7, 15, 33 )
1541146
$288.99
13
RAIL,RH,121,XTRA 10 (XLT) (Incl. 2, 7, 15, 33)
1541147
Unavailable
14
RIVET,(50)
7621501
$2.39
14
RIVET,(50)
7621501
$2.39
15
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
15
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
16
NUT LOCK(10)
7542403
$3.99
16
NUT LOCK(10)
7542403
$3.99
17
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
17
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
17
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
18
SPACER (XLT)
5630399
$11.99
18
SPACER (XLT)
5630399
$11.99
18
SPACER (XLT)
5630399
$11.99
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
WHEEL, IDLER (Incl. 35-37) (XLT/SKS)
1543018
$56.65
20
WHEEL, IDLER (Incl. 35-37) (XLT/SKS)
1543018
$56.65
20
WHEEL, IDLER (Incl. 35-37) (XLT/SKS)
1543018
$56.65
20
WHEEL, IDLER (Incl. 35-37) (XLT/SKS)
1543018
$56.65
20
WHEEL, IDLER (Incl. 35-37) (XLT/SKS)
1543018
$56.65
21
SPACER, WHEEL
5333116
$7.99
21
SPACER, WHEEL
5333116
$7.99
21
SPACER, WHEEL
5333116
$7.99
22
BOLT(10) (XLT)
7512538
$6.39
22
BOLT(10) (XLT)
7512538
$6.39
22
BOLT(10) (XLT)
7512538
$6.39
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
24
BOLT(10) (XLT)
7512659
$7.99
25
LOCK WASHER(10) (XLT)
7553201
$3.99
26
WASHER(10) (XLT)
7555804
$3.99
26
WASHER(10) (XLT)
7555804
$3.99
27
SPACER
5332786
$7.99
28
BOLT Substituted by 7515491 (XLT)
7515433
$1.59
29
WASHER(10) (XLT)
7555743
Unavailable
30
SPACER (XLT)
5332787
Unavailable
31
ROLLER, SPRING (SKS/RMK)
5431366
$10.51
31
ROLLER,SPRING (XLT)
5432170
Unavailable
31
ROLLER, SPRING (SKS/RMK)
5431366
$10.51
31
ROLLER,SPRING (XLT)
5432170
Unavailable
32
BRACKET,BOGIE WHEEL (XLT)
5130570
$48.56
33
BUMPER,SUSPENSION
5811097
Unavailable
33
BUMPER,SUSPENSION
5811097
Unavailable
34
BOLT(10)
7515175
$3.99
34
BOLT(10)
7515175
$3.99
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
37
BEARING (1 per Wheel)
3514303
$11.99
