OIL TANK/AIR BOX XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C010)

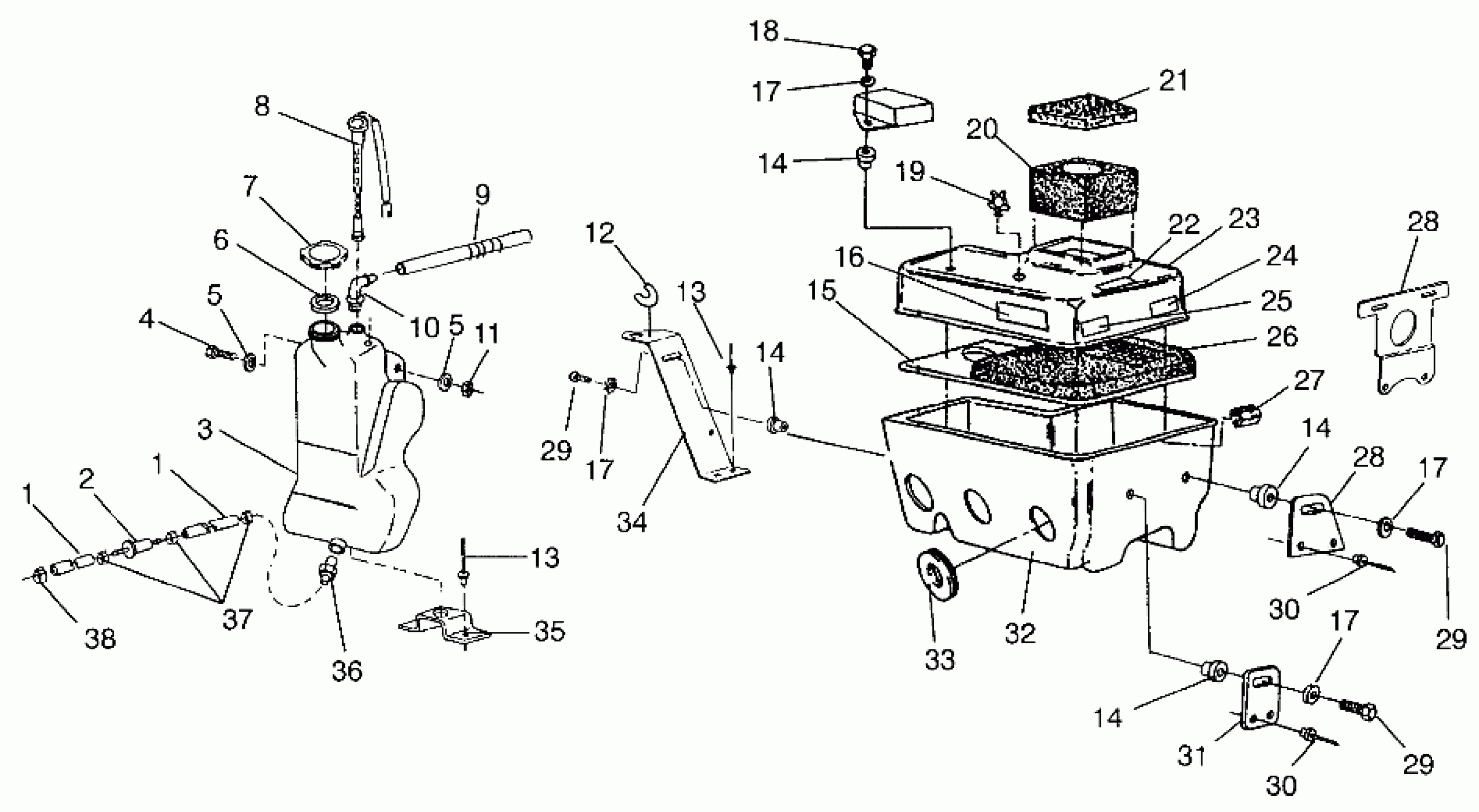

Polaris XLT - 0970756 OIL TANK/AIR BOX XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C010) Diagram
#
1
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
1
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
2
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
3
Tank, Oil
5431437
Unavailable
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
GASKET-OIL CAP
5810141
$2.39
7
CAP,OIL TANK
5430779
$14.56
8
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
10
FITTING,90 DEG,1/8,(10)
7052095
$4.79
11
NUT-LOCK(10)
7542122
$1.49
12
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
NUT-WELL(10)
7541923
$5.59
14
NUT-WELL(10)
7541923
$5.59
14
NUT-WELL(10)
7541923
$5.59
14
NUT-WELL(10)
7541923
$5.59
15
PLATE, AIR SILENCER
5850102
Unavailable
16
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
SCREW(10)
7512222
$2.39
19
CLAMP,WIRE ROUTING(10)
7080409
$2.39
20
FOAM, INTAKE
5810468
Unavailable
21
FOAM,INTAKE,TOP
5810457
Unavailable
22
DECAL,CAUTION,AIRBOX
7075351
Unavailable
23
COVER,SILENCER,DRILLED
5431958
Unavailable
24
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
25
DECAL, GREASING [No Longer Available]
7073426
$7.27
26
BAFFLE ASM.
1253110
Unavailable
26
BAFFLE ASM. (RMK)
1253136
Unavailable
27
CLIP, AIR BOX,(10)
7670055
$7.99
28
BRKT,AIR BOX (SKS, RMK)
5241080-067
Unavailable
28
DESC NOT_AVAILABLE (XLT)
5211274-067
Unavailable
28
BRKT,AIR BOX (SKS, RMK)
5241080-067
Unavailable
28
DESC NOT_AVAILABLE (XLT)
5211274-067
Unavailable
29
SCREW(10)
7512279
$1.49
29
SCREW(10)
7512279
$1.49
29
SCREW(10)
7512279
$1.49
30
RIVET,INTERLOCK,B(50)
7661638
$1.49
30
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
BRKT,FRT.SILENCER
5211296-067
$4.38
32
SILENCER,INTAKE,DRILLED (RMK)
5431918
Unavailable
32
SILENCER,INTAKE,DRILLED (XLT, SKS)
5432140
Unavailable
33
BOOT
5410403
$12.99
34
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
35
BRKT,OILTANK,COINED (Coined)
5241334
$9.70
36
FITTING, OUTLET
7052042
$8.99
37
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
38
CLAMP-HOSE,(10)
7080236
$1.59
