FRONT TORQUE ARM (SKS) XLT SKS 0970556 (4937693769C002)

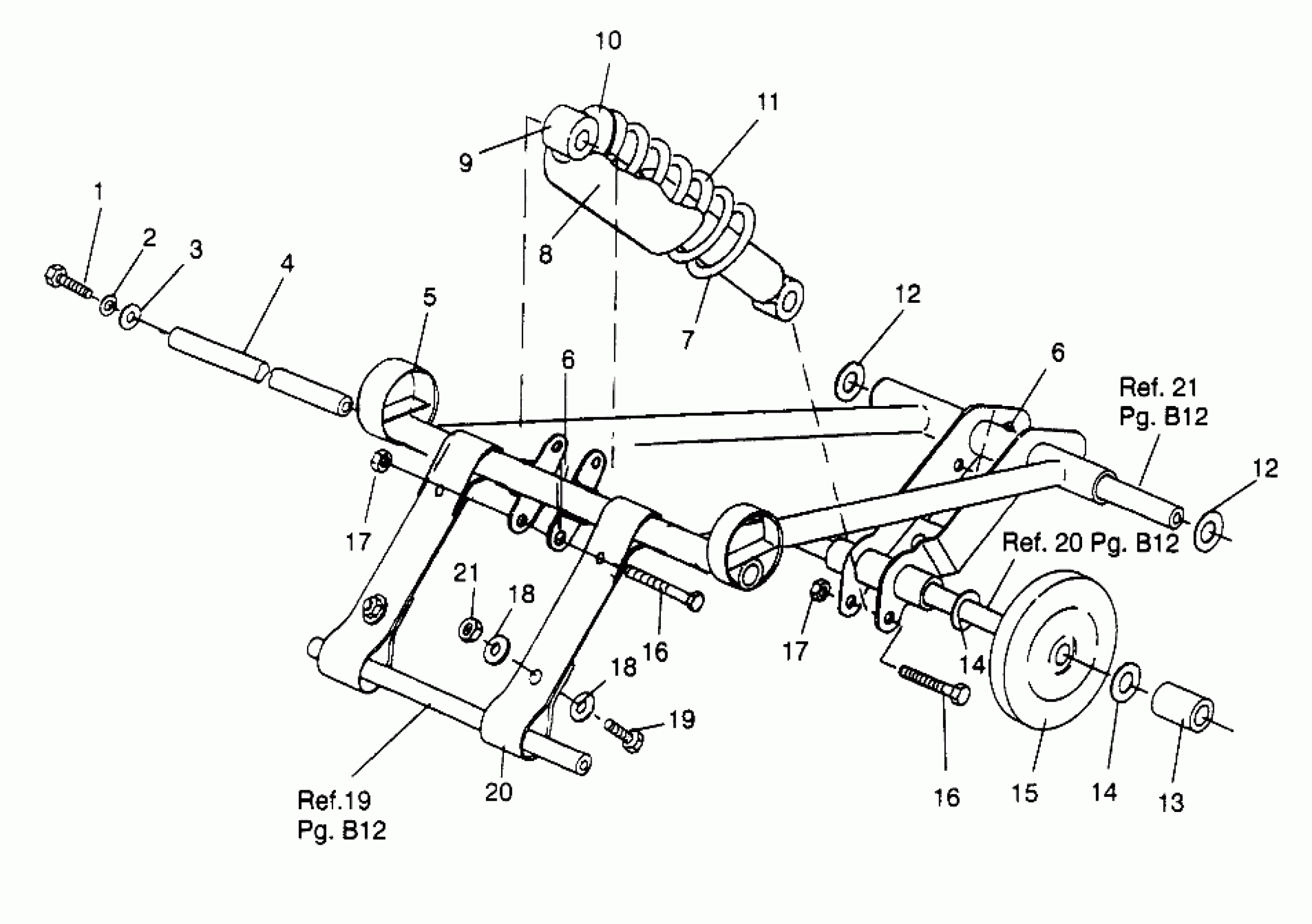

Polaris XLT - 0970756 FRONT TORQUE ARM (SKS) XLT SKS 0970556 (4937693769C002) Diagram
#
Description
Price
1
BOLT(10)
7515526
$1.19
1
BOLT(10)
7515526
$1.19
1
BOLT(10)
7515526
$1.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
Shaft
5131450
Unavailable
5
ARM,F.TORQ.,X-10,BLK Substituted by 1541204-067
1541139-067
Unavailable
6
ZERK,FITTING,THREADED(10)
7080433
$1.49
6
ZERK,FITTING,THREADED(10)
7080433
$1.49
6
ZERK,FITTING,THREADED(10)
7080433
$1.49
7
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
8
SHIELD-SPRING
5430671
$24.27
8
SHIELD-SPRING
5430671
$24.27
9
SHOCK,FR.TRACK Substituted by 7041743
7041430
Unavailable
10
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
11
SPRING,BLACK,COMP.
7041253-067
$95.22
12
WASHER(10)
7555893
$1.49
12
WASHER(10)
7555893
$1.49
13
SPACER, OUTER
5332784
Unavailable
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
Asm., Bogie Wheel (See Pg., Ref.)
-------
Unavailable
16
BOLT(10)
7515415
$1.49
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
WASHER(10)
7555716
$1.59
19
BOLT(10)
7515307
$3.99
20
STRAP,LIMITER,TRACK
5410992
Unavailable
21
NUT-5/16-18 NYLOK-Y
7542324
$1.49
