FRONT SUSPENSION and SKI XLT 0970756, XLT SKS 0970556 and XLT RMK 0970956 (4937693769B002)

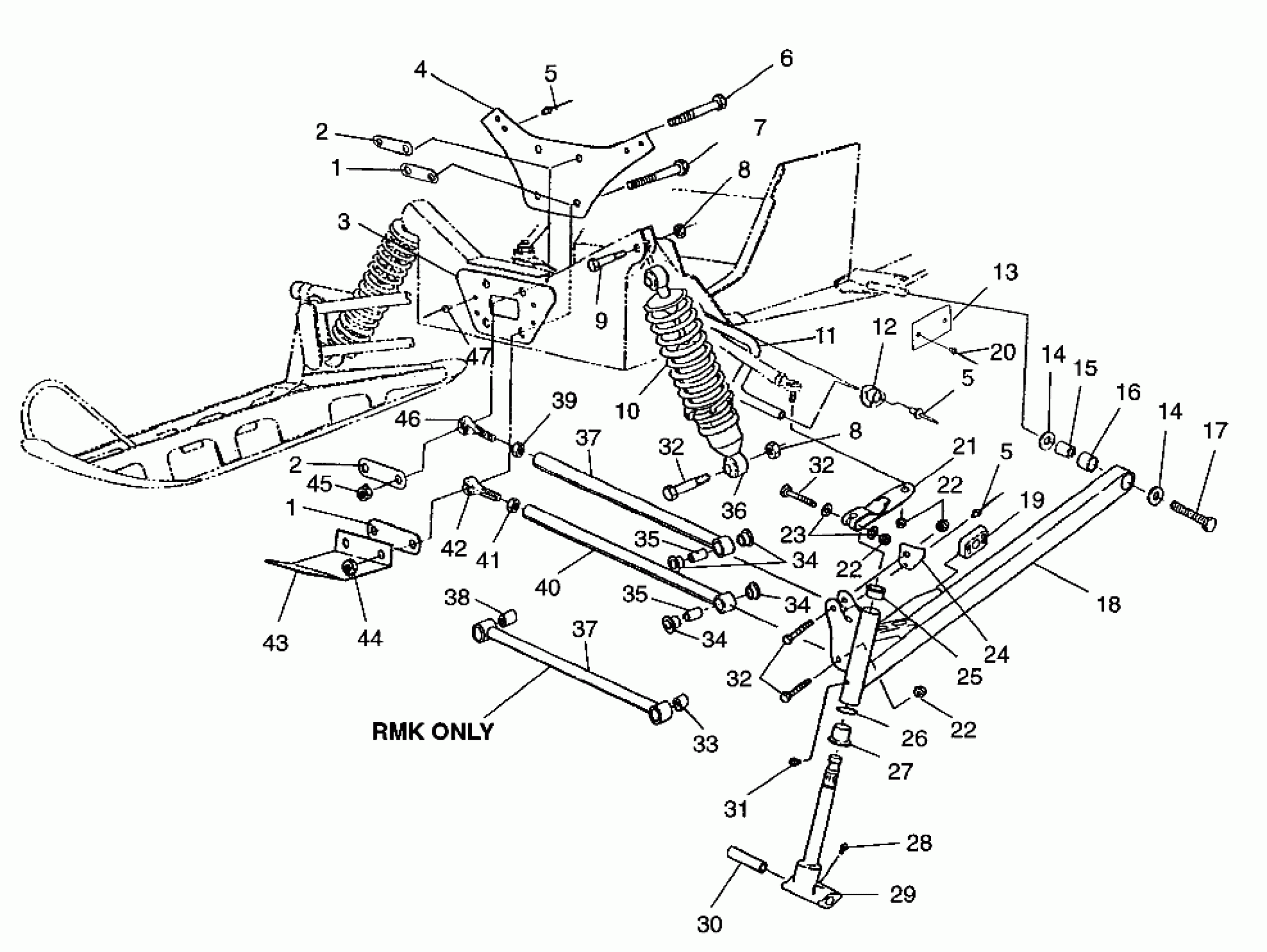

Polaris XLT - 0970756 FRONT SUSPENSION and SKI XLT 0970756, XLT SKS 0970556 and XLT RMK 0970956 (4937693769B002) Diagram
#
1
STRAP,SPACER BOTTOM (XLT, SKS)
5211345
$12.99
1
STRAP,SPACER BOTTOM (XLT, SKS)
5211345
$12.99
2
STRAP,SPACER TOP (XLT, SKS)
5211344
$7.27
2
STRAP,SPACER TOP (XLT, SKS)
5211344
$7.27
3
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
4
REINF,R.SHOCK MT.PLATE (RMK)
5241395-067
$3.46
5
RIVET(50) Substituted by 7661130 (XLT, SKS)
7661643
Unavailable
5
RIVET(50) Substituted by 7661130 (XLT, SKS)
7661643
Unavailable
5
RIVET(50) Substituted by 7661130 (XLT, SKS)
7661643
Unavailable
6
BOLT(10) (XLT)
7512551
Unavailable
6
BOLT(10) (RMK, SKS)
7512582
$8.79
7
BOLT(10) (RMK, SKS)
7512684
Unavailable
7
BOLT(10)
7512678
$19.99
8
NUT, NYLOC(10)
7542453
Unavailable
8
NUT, NYLOC(10)
7542453
Unavailable
9
BOLT(10) Substituted by 7515415
7515515
Unavailable
10
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
10
RING,SPRING PRELOAD ADJ.
5431734
$52.60
10
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
10
SPRING,COMP,IFS
7041552-067
$44.51
11
BAR,SWAY,9/16,X-10,BLK (XLT, SKS)
5224743-067
$70.39
12
BUSHING,SWAY BAR (XLT, SKS)
5432412
$15.99
13
PLATE,TORS.BAR,HOLE (RMK)
5211771
$4.78
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH Substituted by 2201319 (Incl. 15, 16)
1822366
$344.99
18
ARM,TRLG,RH Substituted by 2201320 (Incl. 15,16)
1822367
Unavailable
19
SLIDE,SWAYBAR,9/16
5432332
$32.37
20
RIVET(50)
7621433
$1.49
21
ARM,STRG,BLK
5241560-067
Unavailable
22
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
22
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
22
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
23
WASHER(10) Substituted by 7555832
7555851
Unavailable
24
STOP,LH,STRG,BLK.
5241569-067
$7.27
24
STOP,RH,STRG,BLK.
5241570-067
$7.27
25
BUSHING-FLANGE
3573909
$2.39
26
WASHER SPECIAL(10)
7556509
$1.59
27
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
28
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
29
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
30
BUSHING,PIVOT,(10) (XLT, SKS)
5010158
$19.99
31
ZERK,FITTING,THREADED(10)
7080433
$1.49
32
BOLT(10) Substituted by 7517583
7515491
Unavailable
32
BOLT(10) Substituted by 7517583
7515491
Unavailable
32
BOLT(10) Substituted by 7517583
7515491
Unavailable
33
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
34
BUSH,RAD.ROD PIVOT,OUT. (XLT, SKS)
5431486
$3.19
34
BUSH,RAD.ROD PIVOT,OUT. (XLT, SKS)
5431486
$3.19
34
BUSH,RAD.ROD PIVOT,OUT. (XLT, SKS)
5431486
$3.19
35
BUSHING-RADIUS ROD,(10) (XLT, SKS)
5010127
$7.99
35
BUSHING-RADIUS ROD,(10) (XLT, SKS)
5010127
$7.99
36
SHOCK,GAS,IFS (XLT, SKS)
7041538
Unavailable
36
SHOCK,GAS,IFS (RMK)
7041543
$179.99
37
ROD,RAD,UP.,FIXED (RMK)
1822420
$119.99
37
ROD,RAD,UPPER,BLK (XLT, SKS)
1822412-067
Unavailable
37
ROD,RAD,UP.,FIXED (RMK)
1822420
$119.99
37
ROD,RAD,UPPER,BLK (XLT, SKS)
1822412-067
Unavailable
38
BUSHING,PIVOT,7/16 (RMK)
5411095
Unavailable
39
NUT JAM(10) (XLT, SKS)
7542520
$2.39
40
ROD,RAD,LOWER,BLK (RMK)
1822444-067
$60.70
40
ROD,RAD,LOWER,BLK (XLT, SKS)
1822410-067
Unavailable
41
NUT-JAM(10)
7542711
$2.39
42
ROD END Substituted by 7061027
7060162
$48.56
43
BRACE, PAN
5223997-067
Unavailable
44
NUT FLEX,(10)
7542703
Unavailable
45
NUT, LOCK,(10)
7542503
$10.39
46
ROD END
7060163
Unavailable
47
RIVET-3/16-.090-.290
7661637
$1.49
