ENGINE MOUNTING XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C008)

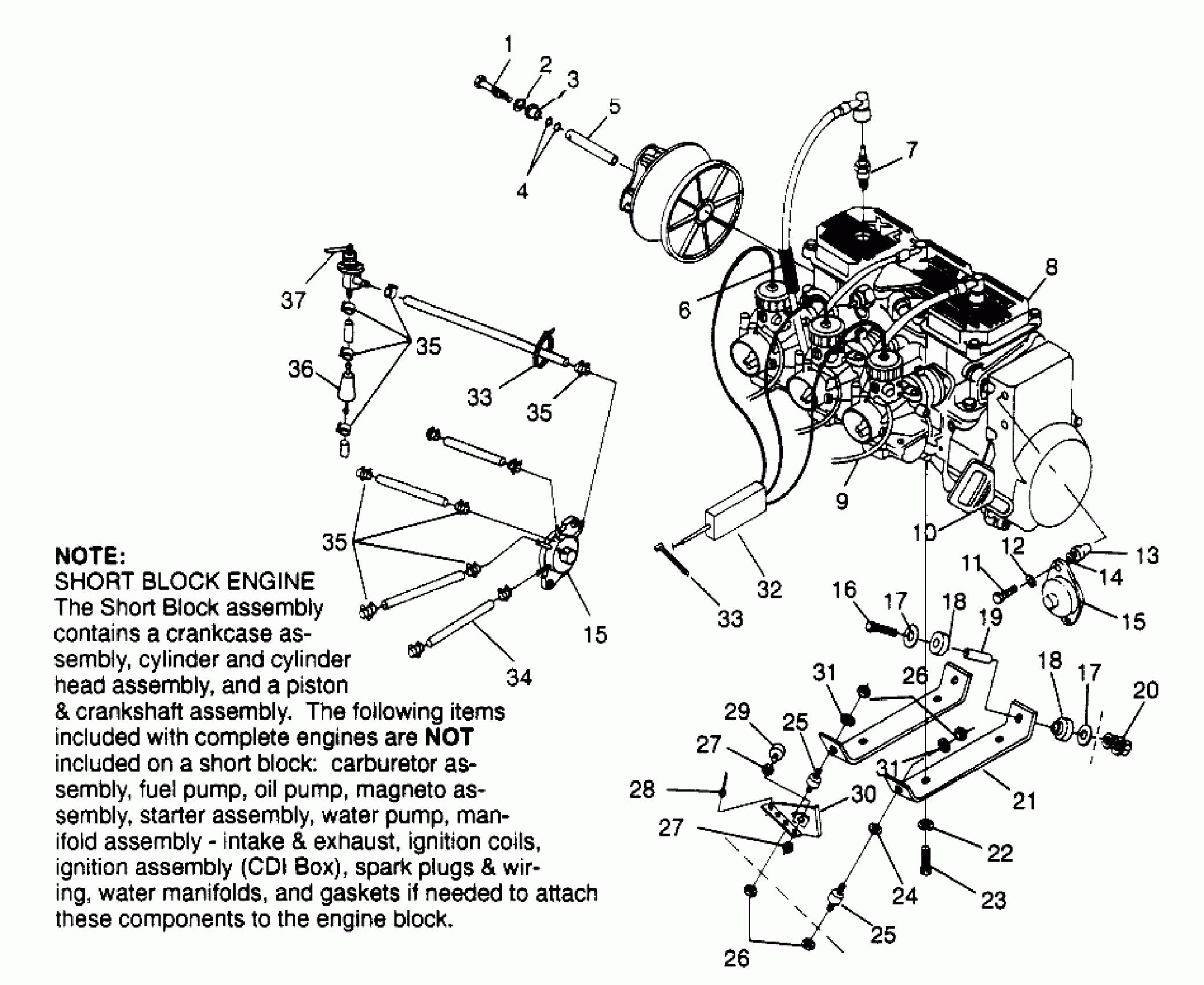

Polaris XLT - 0970756 ENGINE MOUNTING XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C008) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CONDUIT,CONVOL(15 CM) Substituted by 4010051-30
4010051-15
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
ENG.(S.B.)EC58PL-03 [Cannot Purchase as Assembly]
3084684
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
11
SCREW(10)
7512222
$2.39
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
NUT-WELL(10)
7541923
$5.59
14
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
15
Fuel Pump (See Pg., Ref.)
-------
Unavailable
15
Fuel Pump (See Pg., Ref.)
-------
Unavailable
16
SCREW(10)
7512530
$5.59
17
WASHER(10)
7555740
$1.59
17
WASHER(10)
7555740
$1.59
18
MOUNT, ENGINE
5410390
Unavailable
18
MOUNT, ENGINE
5410390
Unavailable
19
SPACER, (MTR.MT.)
5332778
Unavailable
20
NUT,FLANGE(10)
7542522
$5.59
21
PLATE,LH,MTR.MT. (RMK)
5240801
Unavailable
21
PLATE,RH,MTR.MT. (RMK)
5240802
$36.51
21
PLATE,MTR.MT,RH Substituted by 5242182 (XLT, SKS)
5240796
Unavailable
21
PLATE,MTR.MT,LH (XLT, SKS)
5240795
Unavailable
22
WASHER LOCK(10)
7553101
$3.99
23
BOLT(10)
7512575
Unavailable
24
WASHER,FLAT(10)
7555915
$3.19
25
MOUNT,ENG.
3110061
$84.99
25
MOUNT,ENG.
3110061
$84.99
26
NUT,FLEXLOCK,(10)
7547008
$6.39
26
NUT,FLEXLOCK,(10)
7547008
$6.39
27
NUT, JAM(10)
7542432
$3.99
27
NUT, JAM(10)
7542432
$3.99
28
RIVET-3/16-.090-.290
7661637
$1.49
29
STOP,TORQUE,COARSE
3110056
Unavailable
30
LIMITER
1011503-067
Unavailable
31
WASHER(10) Substituted by 7555806
7555720
$0.79
31
WASHER(10) Substituted by 7555806
7555720
$0.79
32
CABLE,THROTTLE,W/OIL (XLT, SKS)
7080458
$157.84
32
CABLE,THROTTLE,W/OIL (RMK)
7080543
$157.84
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
35
HOSE CLAMP, RED
7080003
$1.49
35
HOSE CLAMP, RED
7080003
$1.49
35
HOSE CLAMP, RED
7080003
$1.49
36
FILTER FUEL,(10)
2530008
$4.84
37
VALVE,FUEL SHUT-OFF
7052060
Unavailable
