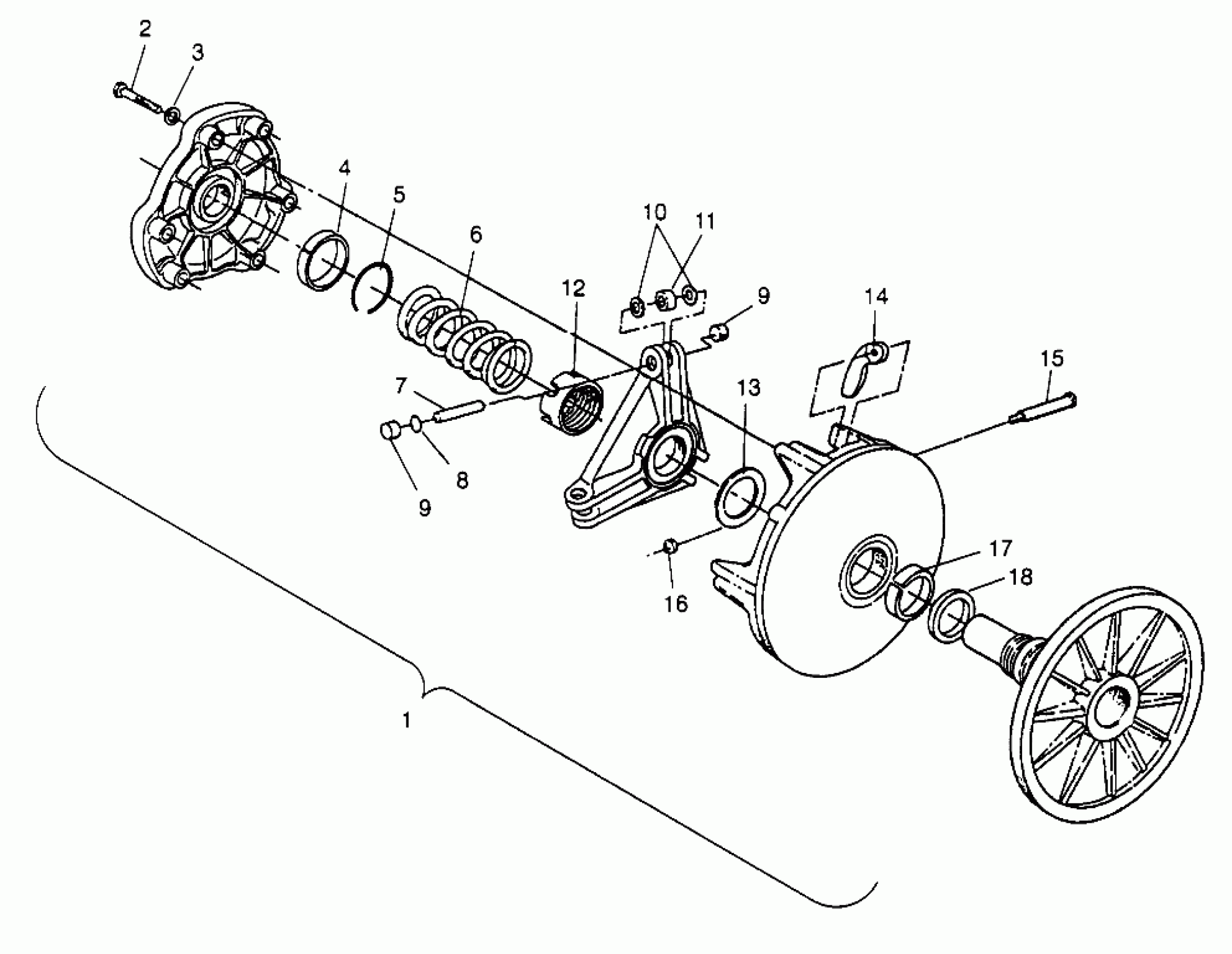

Polaris XLT - 0970756 DRIVE CLUTCH XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C006) Diagram

KIT,CLUTCH UPDATE (Incl. 7-11, 15)

2200386

$161.89

CLUTCH,BASIC#74(DRIVE) Substituted by 1321733 (Less 6, 14)

1321714

Unavailable

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

COVER,BEARING,GARMAX (Garmax)

3576516

$28.32

RING-RETAINING,COVER

7710417

$1.49

SPRING-CLUTCH(GOLD) (Gold) (XLT, SKS)

7041148

$56.65

SPRING-(BLUE) (Blue) (RMK)

7041080

$56.65

PIN-ROLLER

5020422

$2.39

Kit - Shim, Drive Clutch

2200387

$24.27

BUTTON, GUIDE,(10)

5430445

$6.39

BUTTON, GUIDE,(10)

5430445

$6.39

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321457

$40.46

NUT-JAM

5020425

$23.99

SPACER(10) (.050mm)

5210754

Unavailable

SPACER(10) (.020mm)

5210752

Unavailable

SPACER(10) (.032mm)

5210753

Unavailable

WT/BUSH.ASM,10M(3) (10M)(XLT, SKS)

1321528

$40.46

WT/BUSH.ASM,10 WHITE(6) (10M-W) (RMK)

1321527

Unavailable

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

NUT FLEX LOC(10)

7541906

$3.19

SLEEVE, BEARING

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99
