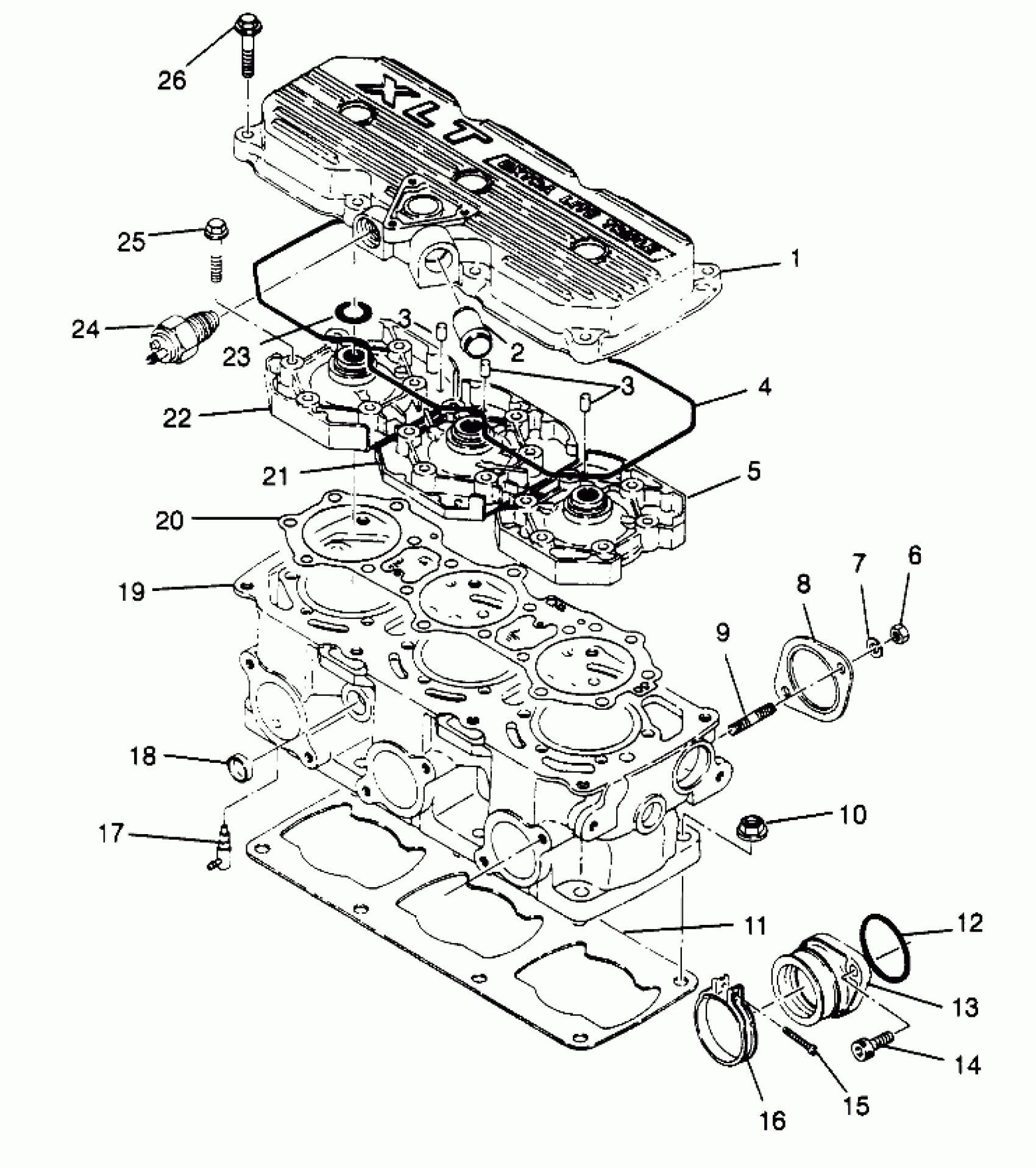

Polaris XLT - 0970756 CYLINDER XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C013) Diagram

#

Description
Price

1

COVER,HEAD,(3 CYL) (Incl. 2)

3085190

Unavailable

2

Pipe, Water

3083452

Unavailable

3

PIN, DOWEL

3084721

$4.79

3

PIN, DOWEL

3084721

$4.79

4

O-RING, (HEADCOVER) (Head Cover)

3084434

Unavailable

5

HEAD,CYL,#1,(MAG) (MAG)

3085423

Unavailable

6

NUT(10)

3080285

Unavailable

7

WASHER LOCK ,(10)

3080530

$3.19

8

GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos

3084439

Unavailable

9

STUD,(10)

3085326

Unavailable

10

NUT-FLANGE(10)

3082911

$1.99

11

GASKET, CYLINDER (Cylinder)

3084593

Unavailable

12

O-RING Substituted by 3085619

3084272

Unavailable

13

ADAPTER (Incl. 12)

3084438

Unavailable

14

Bolt, Allen

3081330

$3.99

15

SCREW,(10)

3081497

$2.39

16

BAND-CARB MTG. (Incl. 15)

3082257

Unavailable

17

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

18

PLUG

3084428

$3.51

19

CYLINDER (Incl. 9, 18)

3085017

$834.99

20

GASKET,HEAD

3085005

Unavailable

21

HEAD,CYL.#2,(CTR) (Cen)

3085424

Unavailable

22

HEAD,CYL.#3,(PTO) (PTO)

3085425

Unavailable

23

O RING

3085192

Unavailable

24

SWITCH,THERMAL,IOS

3084284

Unavailable

25

BOLT, FLANGE ,(10)

3084435

Unavailable

26

Bolt, Flange

3084437

Unavailable
