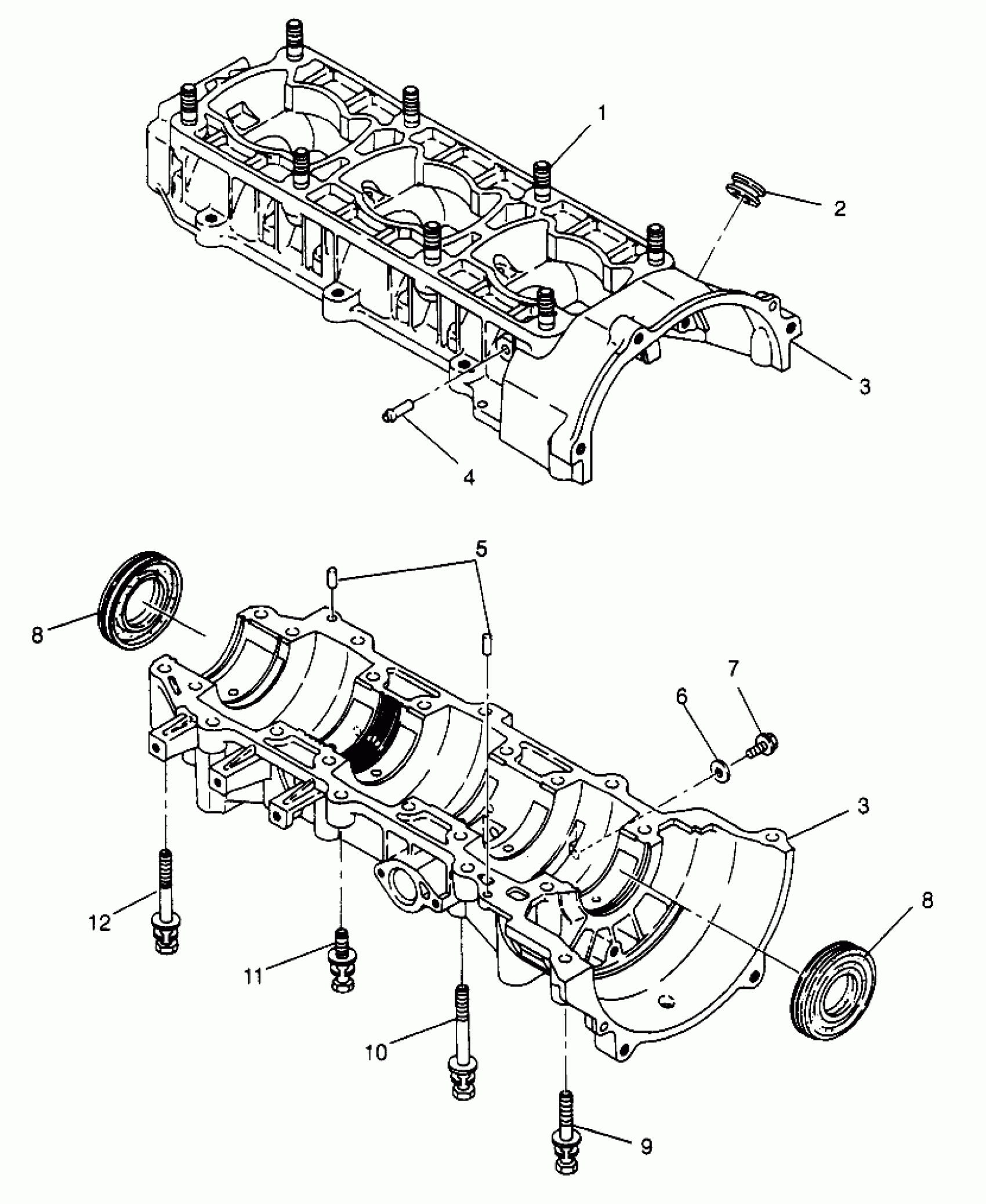

Polaris XLT - 0970756 CRANKCASE XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769C012) Diagram

STUD Substituted by 3084119

3080745

Unavailable

GROMMET

3082875

$7.99

CRANKCASE ASM. (Incl. 1, 4-5, 9-12)

3084669

$744.99

CRANKCASE ASM. (Incl. 1, 4-5, 9-12)

3084669

$744.99

PIPE, PULSE (Pulse) (RMK)

3083798

$9.52

PIPE, (PULSE) Substituted by 3083798 (Pulse) (XLT, SKS)

3083567

Unavailable

PIN, DOWEL Substituted by 3086838

3080103

$7.14

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

SEAL, OIL(10)

3083045

$36.41

SEAL, OIL(10)

3083045

$36.41

BOLT AND WASHER ASSY.

3082097

Unavailable

BOLT&WASHER ASM.

3084670

Unavailable

BOLT&WASHER

3083078

Unavailable

BOLT&WASHER ASM.

3084671

Unavailable
