COOLING SYSTEM XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769B007)

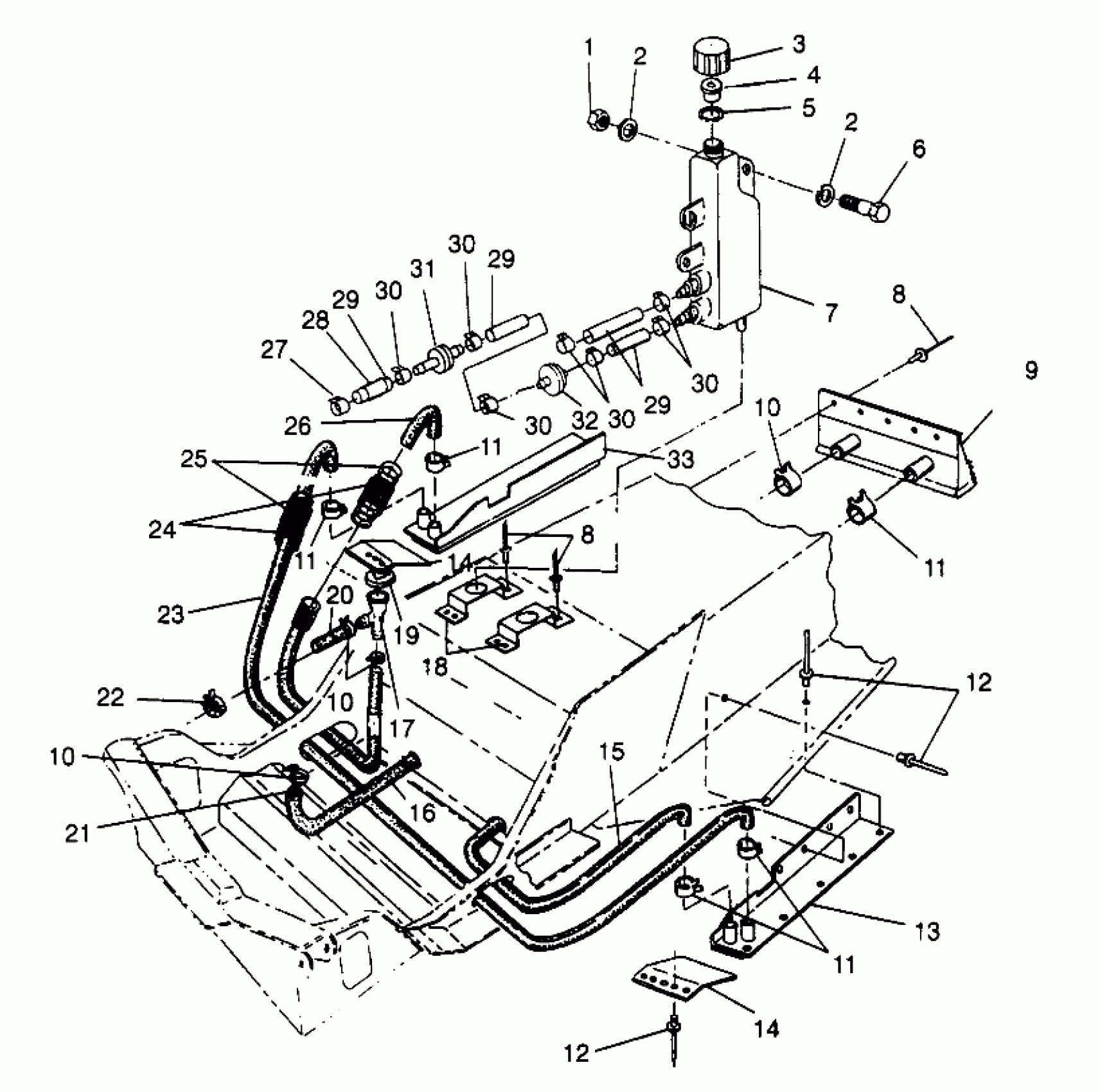

Polaris XLT - 0970756 COOLING SYSTEM XLT 0970756, XLT SKS 0970556, and XLT RMK 0970956 (4937693769B007) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE, CENTER
5410673
Unavailable
17
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
18
BRKT,OILTANK,COINED
5241334
$9.70
19
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
20
HOSE,ENG.OUT/FILLER
5411010
$24.27
21
SPRING,HOSE RETAINER
7042041
Unavailable
22
CLAMP,HOSE,(10)
7080614
$7.19
23
HOSE-CROSSOVER
5410324
Unavailable
24
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
25
SPRING,HOSE RETAINER
7041079
$4.95
26
HOSE,RH,FILLER OUT,EXTRUSION
5411011
Unavailable
27
CLAMP-HOSE(10)
7080134
Unavailable
28
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.) (Service)
8450003-1525
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.) (Service)
8450003-1525
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.) (Service)
8450003-1525
Unavailable
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
31
VALVE, CHECK
7052038
$10.51
32
FILTER,COOLANT,LGE.
2530024
Unavailable
33
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
