CARBURETOR (RMK) XLT RMK 0970956 (4937693769D003)

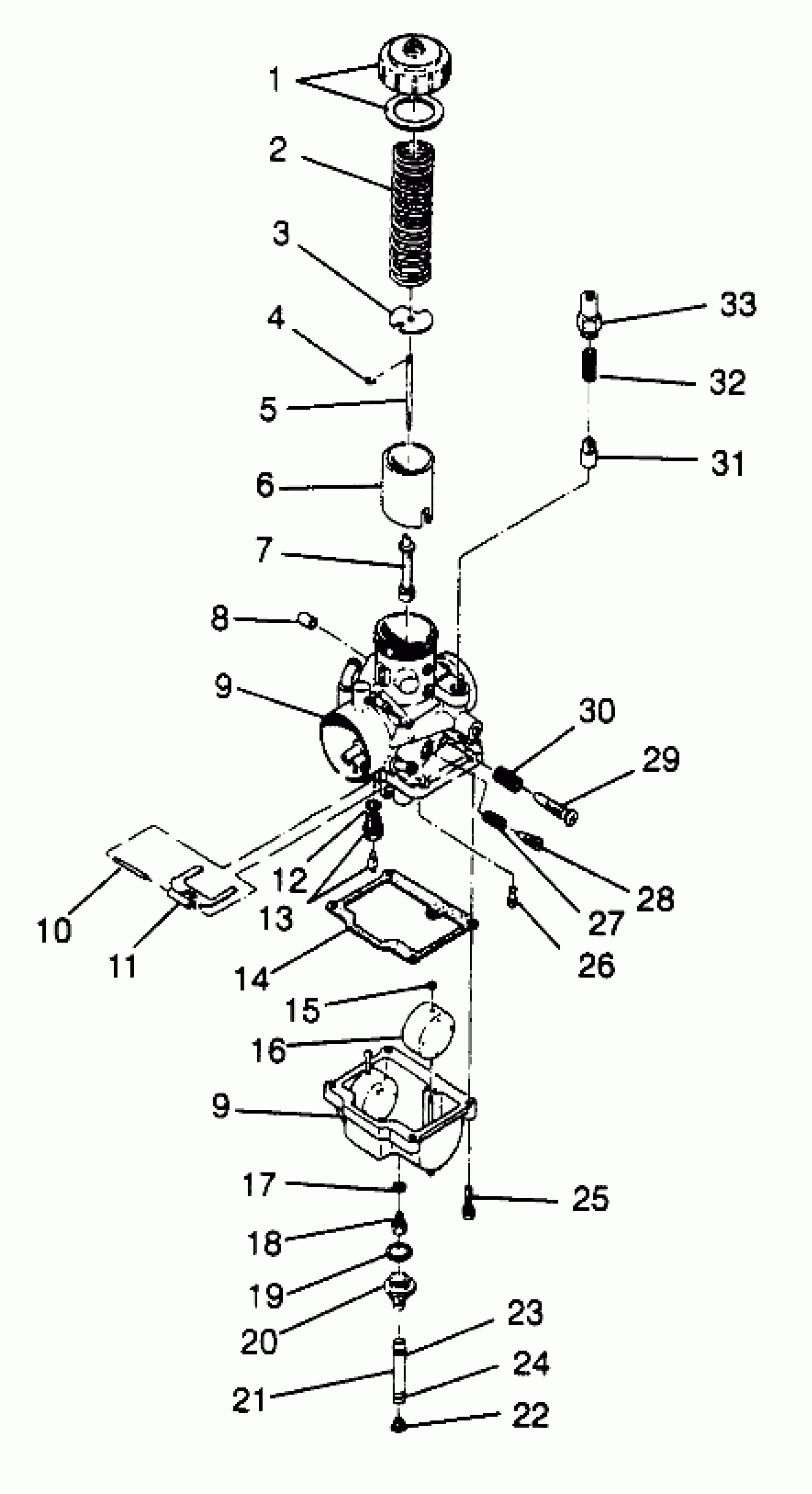

Polaris XLT - 0970756 CARBURETOR (RMK) XLT RMK 0970956 (4937693769D003) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING,THROTTLE
3130439
$13.59
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE,(6EJ3-2) (6EJ3-2)
3130680
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
7
JET,NEEDLE,(P-2) Substituted by 3130675 (480)
3130681
Unavailable
8
CAP
3130479
$14.56
9
CARBURETOR,#2 (Incl. 1-20, 25-33) (Center Side)
3130682
Unavailable
9
CARBURETOR,#1 (Incl. 1-20, 25-33) (PTO & Mag Side)
3130679
Unavailable
9
CARBURETOR,#2 (Incl. 1-20, 25-33) (Center Side)
3130682
Unavailable
9
CARBURETOR,#1 (Incl. 1-20, 25-33) (PTO & Mag Side)
3130679
Unavailable
10
PIN, FLOAT
3130361
$8.89
11
ARM,FLOAT
3130018
$24.27
12
PACKING(10)
3130017
$4.03
13
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM.
3130430
$43.56
17
WASHER (10)
3130014
$1.59
18
JET,MAIN,HX.HD#240(10) (#240)
3130127
$7.99
19
O RING
3130239
Unavailable
20
NIPPLE
3130573
$32.37
21
DESC NOT_AVAILABLE
8450045-600
Unavailable
22
PLUG,TRAP
5431893
$12.94
23
CLAMP,HOSE(10)
7080544
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
SCREW & WASHER(10)
3130025
$3.19
26
JET,PILOT,#50(10) (#50)
3130629
$7.27
27
SPRING,AIR ADJUST
3130012
$8.89
28
SCREW,AIR
3130011
$19.99
29
SCREW,THROTTLE STOP
3130009
$19.99
30
SPRING,THROTTLE ADJ.
3130010
$8.89
31
PLUNGER ASM, STARTER
3130328
$32.37
32
SPRING,PLUNGER
3130006
$8.89
33
HOLDER,GUIDE
3130199
$28.32
