TUNNEL ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XLT S (4928842884A006)

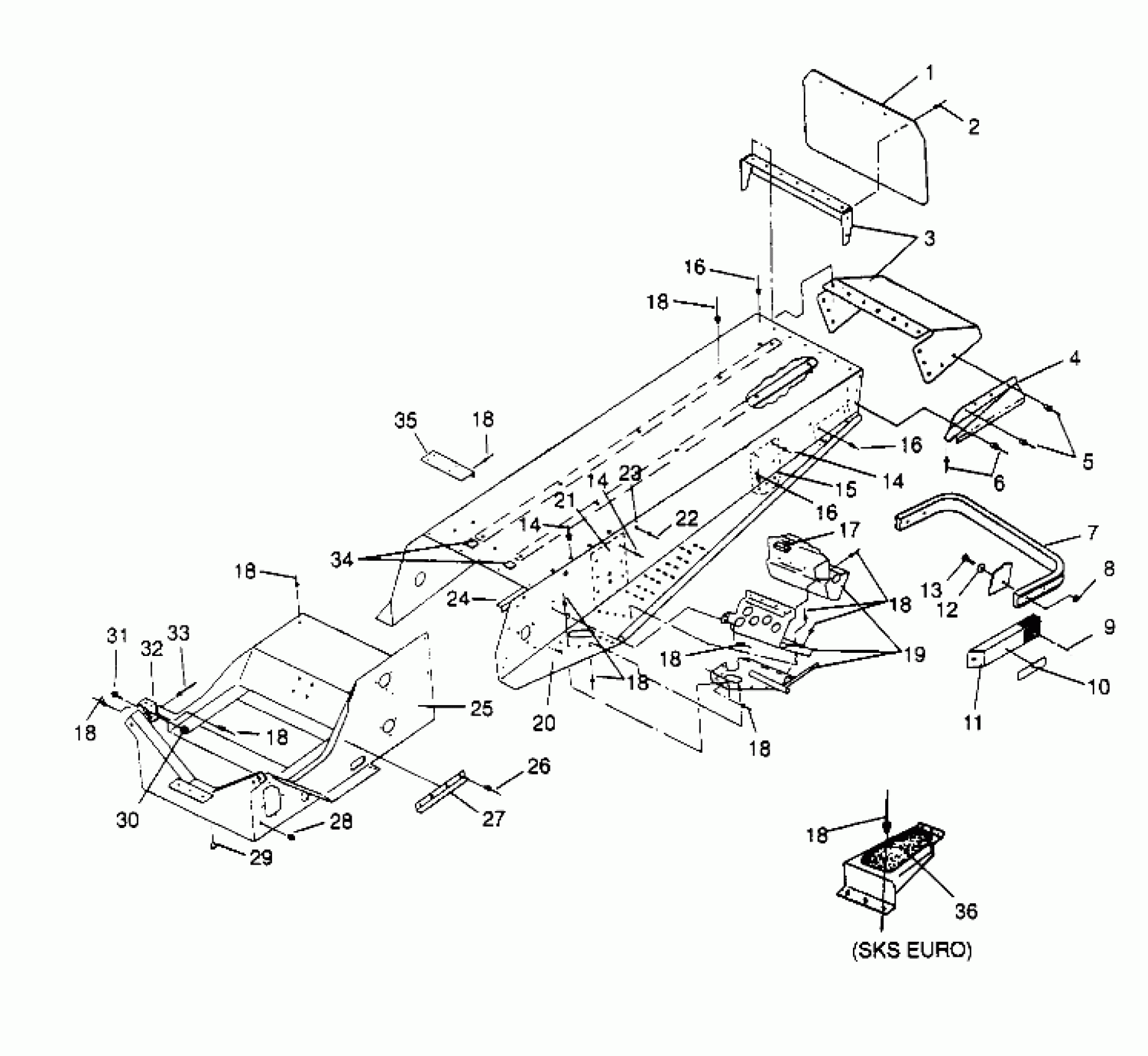

Polaris XLT - 0950756 TUNNEL ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XLT S (4928842884A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
1
FLAP,SNOW,15D Substituted by 5432149 (PT)
5431844
Unavailable
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL-BACK,BLK. (XLT)
5240599-067
Unavailable
3
CLOSE-OFF ASM,REAR,BLK. Substituted by 1012232-067 (SKS EURO)
1011694-067
Unavailable
3
CLOSE-OFF ASM,REAR,BLK. (SKS)
1012232-067
Unavailable
3
PANEL,CLOSE-OFF,REAR (PT)
1012299-067
$69.84
4
SKIRT,LH,SNO,LAV. (SKS)
5431627-171
$24.70
4
SKIRT,RH,SNO,LAV. (SKS)
5431645-171
Unavailable
5
RIVET,3/16X.402(50) (SKS)
7621432
$1.49
6
RIVET(50) (SKS)
7621472
$1.49
7
BUMPER,REAR,BLK. (XLT)
5224334-067
Unavailable
7
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
7
BUMPER,REAR,SCAND.,BLK. (SKS EURO)
5224421-067
$21.43
8
NUT-LOCK(10)
7542122
$1.49
9
SCREW(10)
7511863
$1.99
10
REFLECTOR RED
2670070
$9.91
11
CAP, BUMPER, BLK.
5430930-070
Unavailable
12
WASHER(10)
7558301
$1.49
13
BOLT(10)
7512240
$3.99
14
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
14
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
14
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
15
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
15
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
15
BRKT,RH,R.SUSP. (XLT)
1011858-067
Unavailable
15
BRKT,LH,R.SUSP (XLT)
1011857-067
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661841
$1.49
16
RIVET,SEMI-TUBE,(50)
7661841
$1.49
16
RIVET,SEMI-TUBE,(50)
7661841
$1.49
17
EXTRUSION,CLUTCHGUARD
5521238
$6.46
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50) (SKS EURO)
7661638
$1.49
19
FOOTREST ASM, LH
1011861
Unavailable
19
FOOTREST ASM,RH,BLK.
1011892
Unavailable
19
FOOTREST ASM,RH,BLK(EUROPE) (SKS EURO)
1011908
Unavailable
20
TUNNEL ASM,LIQ,SKS,BLK. (SKS & PT)
1012212
$432.13
20
TUNNEL ASM,BLK,LIQ. (XLT)
1012213
$366.65
20
DESC NOT_AVAILABLE (SKS EURO)
1012283
Unavailable
21
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
22
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
23
SNAP-MALE(10)
7080227
Unavailable
24
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
25
BULKHEAD, BLK.
1012256-067
Unavailable
26
RIVET-3/16-.090-.290
7661637
$1.49
27
GUARD
5223789
Unavailable
28
PLUG, HOLE(10)
7080416
$5.65
29
PLUG-HOLE
7080398
$4.84
30
NUT LOCK(10)
7542321
$1.49
31
SCREW(10)
7512307
$3.99
32
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
33
RIVET(50)
7621452
$1.49
34
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
35
BRKT, TOOL BOX
5220973
Unavailable
36
PAD,LH FOOT SAFETY (Euro)
5830007
$7.89
36
PAD,RH FOOT SAFETY (Euro)
5830008
$4.92
36
FOOTREST,LH R,BLK. (Euro)
5220893-067
Unavailable
36
FOOTREST,RH R,BLK. (Euro)
5220894-067
$32.15
