SUSPENSION ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & X (4928842884B013)

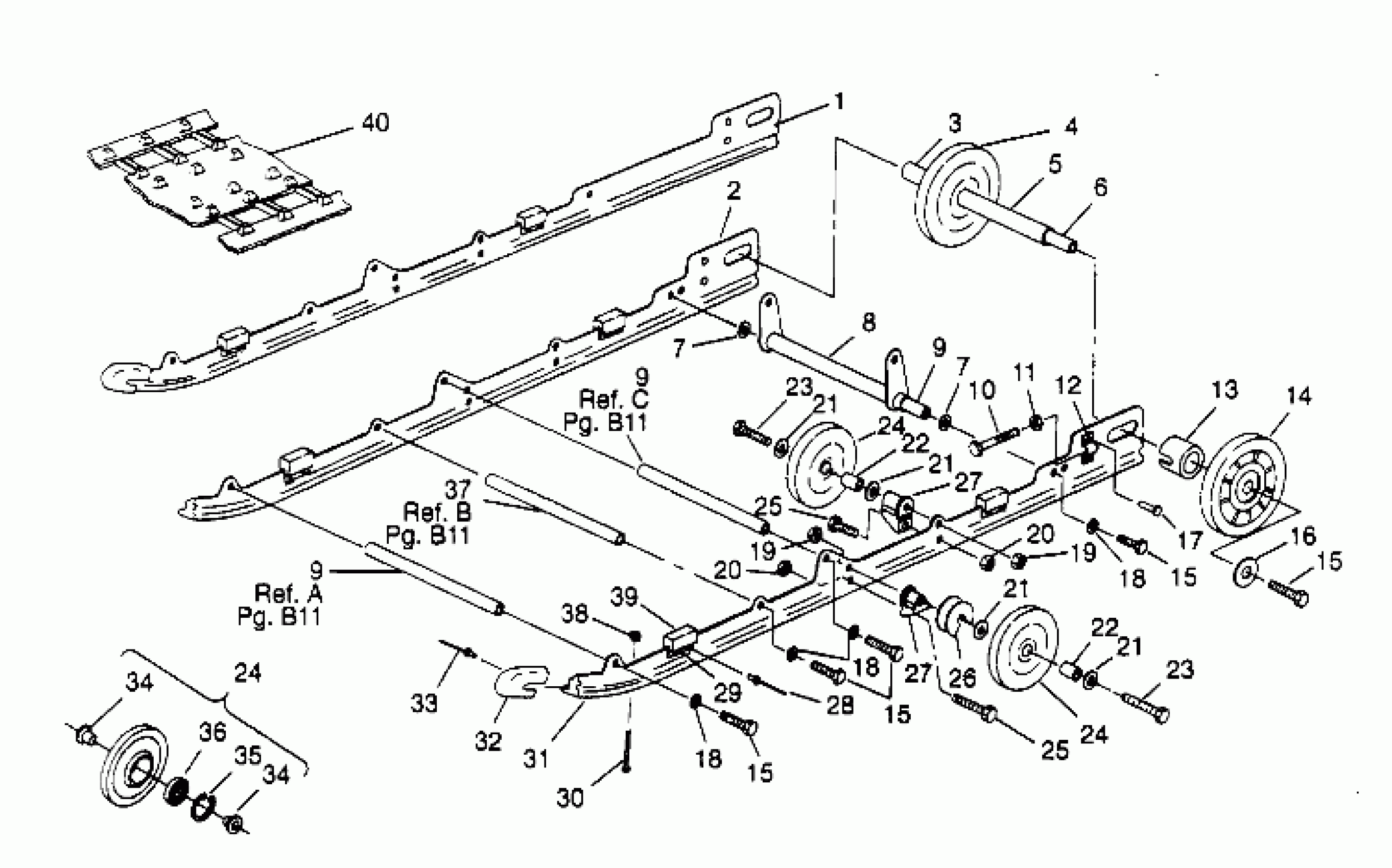

Polaris XLT - 0950756 SUSPENSION ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & X (4928842884B013) Diagram
#
1
RAIL ASM,LH,(SKS,XC-100) (SKS) (Incl. 12, 29, 32, 39)
1540802
Unavailable
1
RAIL ASM,RH,(SKS,XC-100) (SKS) (Incl. 12, 29, 32, 39)
1540803
$319.99
2
RAIL ASM, RH. (XLT) (Incl. 12, 29, 32, 39)
1540796
$263.99
2
RAIL ASM, LH. (XLT) (Incl. 12, 29, 32, 39)
1540795
Unavailable
3
SPACER INNER IDLER
5010169
Unavailable
4
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
5
SPACER,IDLER,R.INNER
5333086
Unavailable
6
SHAFT,IDLER
5020722
Unavailable
7
MACHINERY BUSHING(10)
7556301
$3.19
7
MACHINERY BUSHING(10)
7556301
$3.19
8
ARM, REAR PIVOT
1540677-067
Unavailable
9
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. A26)
5020723
$29.99
9
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. A26)
5020723
$29.99
9
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. A26)
5020723
$29.99
10
BOLT, ADJUSTER(10)
7515455
$29.99
11
NUT(10)
7542440
Unavailable
12
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
13
SPACER-IDLER-OUTER
5332641
Unavailable
14
WHEEL,IDLER,LAV.
1594049
Unavailable
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
16
WASHER FLAT(10)
7555732
Unavailable
17
RIVET,(50)
7621501
$2.39
18
WASHER(10)
7552603
$1.49
18
WASHER(10)
7552603
$1.49
18
WASHER(10)
7552603
$1.49
19
NUT, NYLOCK(10)
7542525
$4.79
19
NUT, NYLOCK(10)
7542525
$4.79
20
NUT LOCK(10)
7542403
$3.99
20
NUT LOCK(10)
7542403
$3.99
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
22
SPACER, WHEEL
5333116
$7.99
22
SPACER, WHEEL
5333116
$7.99
23
BOLT(10)
7512538
$6.39
23
BOLT(10)
7512538
$6.39
24
WHEEL, IDLER (Incl. 34-36)
1543018
$56.65
24
WHEEL, IDLER (Incl. 34-36)
1543018
$56.65
24
WHEEL, IDLER (Incl. 34-36)
1543018
$56.65
25
BOLT(10)
7512404
$3.99
25
BOLT(10)
7512404
$3.99
26
ROLLER, SPRING
5431366
$10.51
27
SPACER
5630399
$11.99
27
SPACER
5630399
$11.99
28
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
29
REINF., BUMPER
5222629
$13.75
30
SCREW(10)
7512227
$3.19
31
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
32
COVER-RAIL TIP
5430627
$32.37
33
RIVET(50)
7621435
$1.49
34
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
34
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
35
RET.RING-TRUARC (1 per)
7718407
$4.79
36
BEARING,CHAINCASE (1 Per)
3514305
$19.99
37
SHAFT,PIVOT ARM (Ref. C) (See Pg. A26)
5020724
$29.99
38
NUT-LOCK(10)
7542122
$1.49
39
BUMPER, RAIL
5810554
$7.27
40
TRACK,(STORM SKS) (XLT SKS)
5410744
Unavailable
40
TRACK Substituted by 5411379 (XLT)
5410747
$749.99
40
TRACK,133"X1.5 Substituted by 2871368 (XLT SKS PT)
5410921
Unavailable
