SEAT and GAS TANK ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950 (4928842884A008)

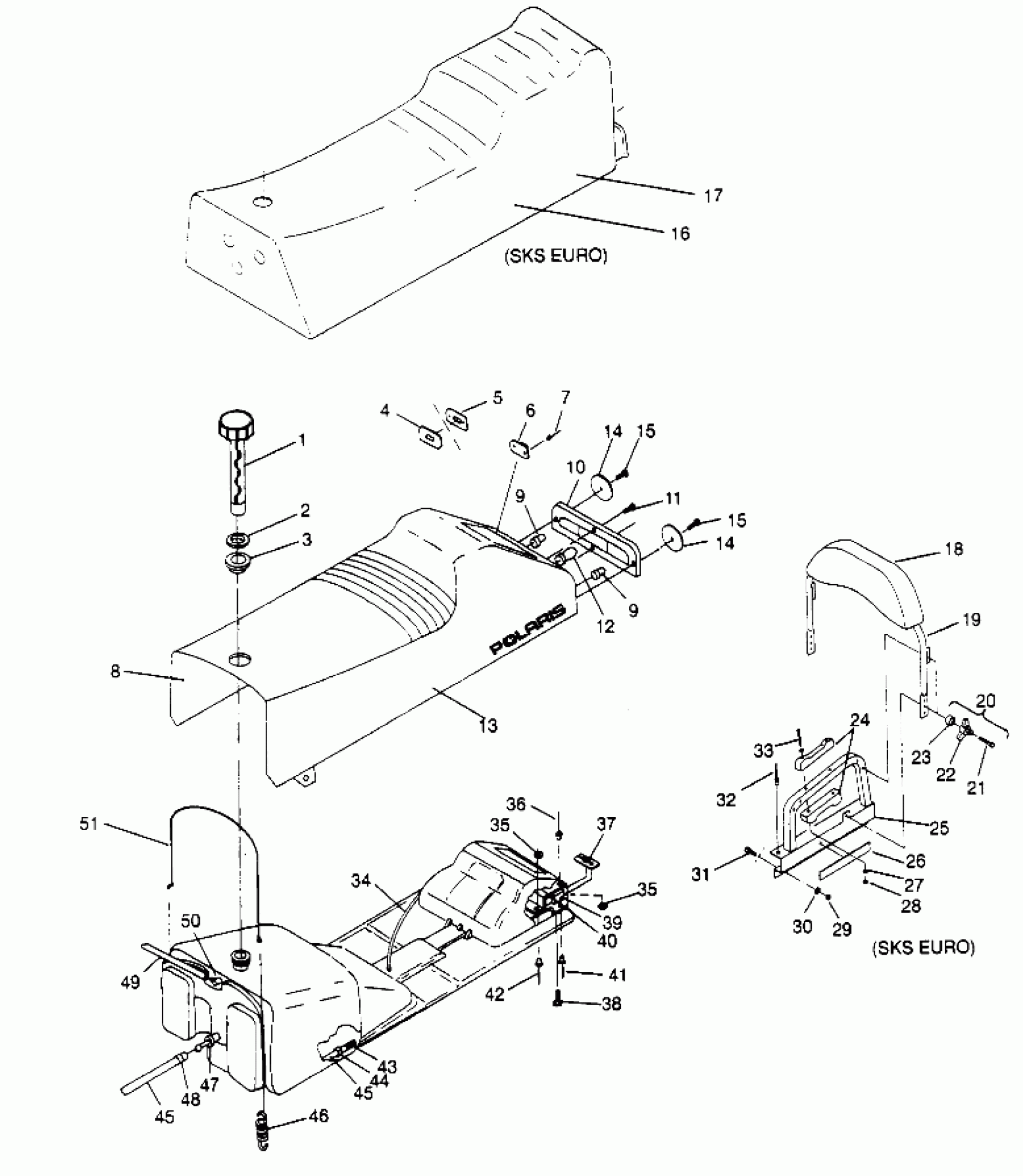

Polaris XLT - 0950756 SEAT and GAS TANK ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950 (4928842884A008) Diagram
#
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
7
RIVET(50)
7621339
$1.49
8
SEAT ASM. (SKS) (Incl. 9-34, 38, 39, 43-45, 47, 50, 51)
2681771
Unavailable
8
SEAT ASM,(XLT) (XLT) (Incl. 9-34, 38, 39, 43-45, 47, 50, 51)
2681773
$399.99
9
BULB,TAILLIGHT(10)
4030024
$4.84
9
BULB,TAILLIGHT(10)
4030024
$4.84
10
LENS,TAILLIGHT
5430423
Unavailable
11
SCREW(10)
7511840
Unavailable
12
Bulb, Brakelight
4030045
Unavailable
13
COVER,SEAT,(XLT/SKS) (SKS)
2681772
Unavailable
13
COVER,SEAT,STD. (XLT)
2681774
Unavailable
14
REFLECTOR (EURO Only)
5430781
Unavailable
14
REFLECTOR (EURO Only)
5430781
Unavailable
15
SCREW(10) (EURO Only)
7511856
Unavailable
15
SCREW(10) (EURO Only)
7511856
Unavailable
16
SEAT ASM,2-UP(SPORT TRG.) (EURO Only)
2681787
Unavailable
17
COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (EURO Only)
2681788
Unavailable
18
COVER ASM,BACKREST (EURO Only)
2681642
$119.05
19
BACKREST ASM,BLK.SAPH. (EURO Only)
2681641
$115.99
20
KNOB ASM,BACKREST (EURO Only)
2670130
Unavailable
21
SCREW(10) (EURO Only)
7515352
Unavailable
22
KNOB, BACKREST (EURO Only)
5630386-067
$20.22
23
SPACER (EURO Only)
5431285
Unavailable
24
GRIP, HAND Substituted by 5433383 (EURO Only)
5431015
$19.68
25
BAR,GRAB,LH,BLK. (EURO Only)
1011729-067
Unavailable
25
BAR,GRAB,RH,BLK. (EURO Only)
1011730-067
Unavailable
26
REFLECTOR RED (EURO Only)
2670070
$9.91
27
WASHER(10) (EURO Only)
7555783
$3.99
28
NUT, LOCK(10) Substituted by 7541925 (EURO Only)
7541929
Unavailable
29
NUT, NYLOK(10) (EURO Only)
7542327
$4.79
30
WSHR-FL-.312X.734X.065-Y (EURO Only)
7555843
$1.59
31
BOLT(10) Substituted by 7512325 (EURO Only)
7515363
Unavailable
32
RIVET,INTERLOCK,B(50) (EURO Only)
7661638
$1.49
33
SCREW(10) (EURO Only)
7510504
$6.76
34
HARNESS,TAILLIGHT
2460398
Unavailable
35
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
35
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
36
RIVET, BLIND(50)
7621467
$1.49
37
NUT,RETAINER-WELD.(10)
7542147
$17.59
38
SCREW(10)
7512242
$2.39
39
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
40
COVER,T/L PROTECTOR
5431436
$21.43
41
RIVET(50)
7621301
$3.99
42
RIVET(50)
7621460
$1.49
43
FUELPICKUP,W/STRAINER
7052037
$12.94
44
RING, COMPRESSION(10)
7080402
$1.60
45
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
45
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
46
SPRING-EXHAUST(10)
7042029
$4.84
47
FITTING - OUTLET(10)
7052023
$24.99
48
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
49
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
50
FITTING,90 DEG,1/8,(10)
7052095
$4.79
51
CABLE,TANK RETENTION
7080473
Unavailable
