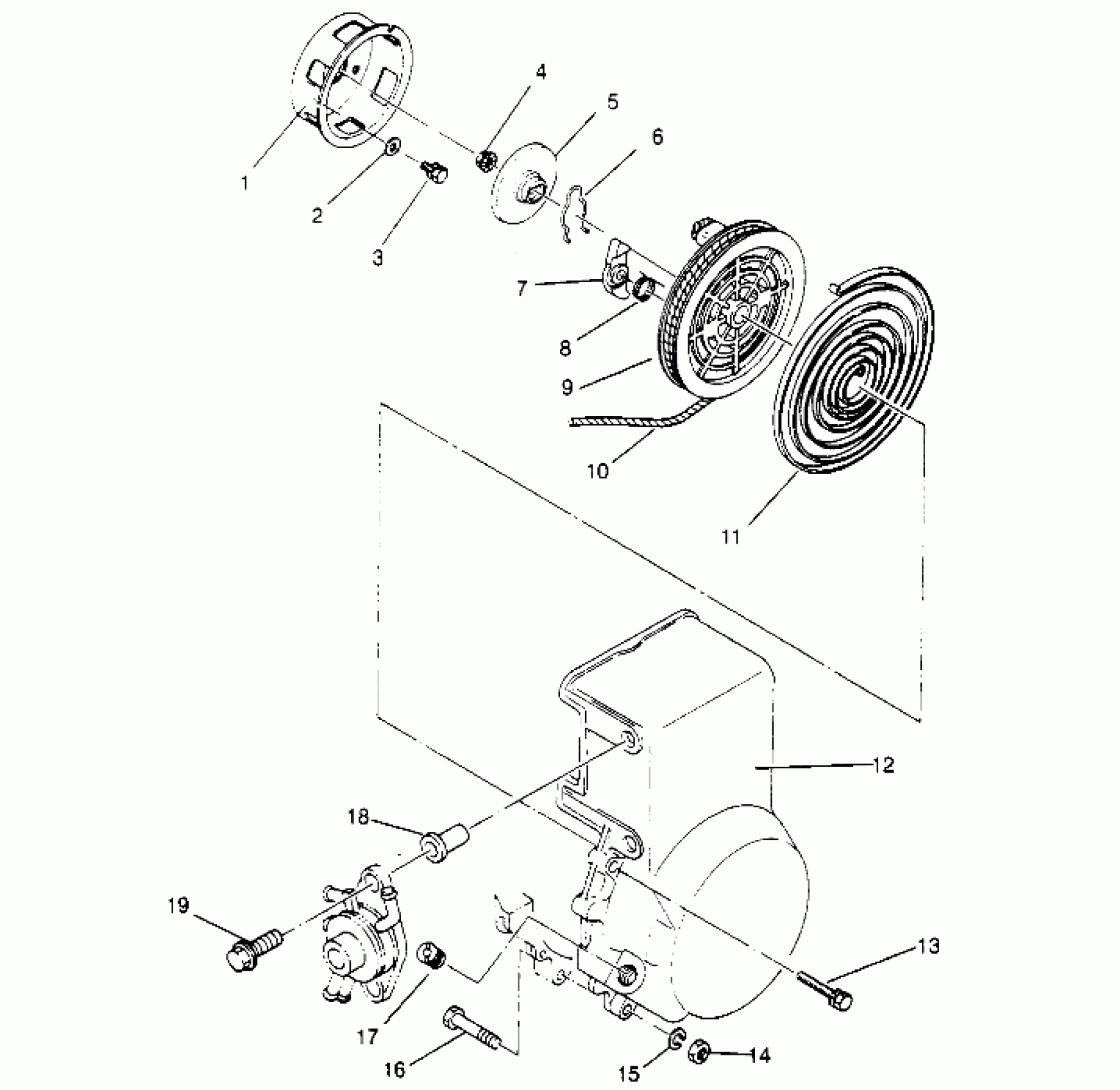

Polaris XLT - 0950756 RECOIL STARTER ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 (4928842884D003) Diagram

#

Description
Price

1

Pulley, Starting

3083312

$36.41

2

WASHER

3082520

$1.49

3

BOLT&WASHER ASM.

3084224

Unavailable

4

NUT, FLANGE ,(10)

3083381

$2.99

5

Plate, Friction

3083464

$28.32

6

Spring, Friction

3083379

$24.27

7

Ratchet

3083378

$20.22

8

Spring, Return

3083463

$4.03

9

REEL, REWIND

3083377

$56.65

10

ROPE,100 FT,NYL.STARTER

2870621

$34.99

11

Spring, Spiral

3083376

$179.11

12

STARTER, RECOIL, CPL. (Incl. 4-12, 17)

3084470

Unavailable

12

CASE, STARTER

3084471

$205.99

13

BOLT&WASHER

3083078

Unavailable

14

NUT(10)

3080119

$2.39

15

WASHER LOCK ,(10)

3080530

$3.19

16

BOLT(10)

3084773

$1.49

17

GUIDE-ROPE

3083107

Unavailable

18

NUT-RUBBER

3083240

Unavailable

19

SCREW&WASHER,(10)

3083784

$2.39
