FRONT SUSPENSION and SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004)

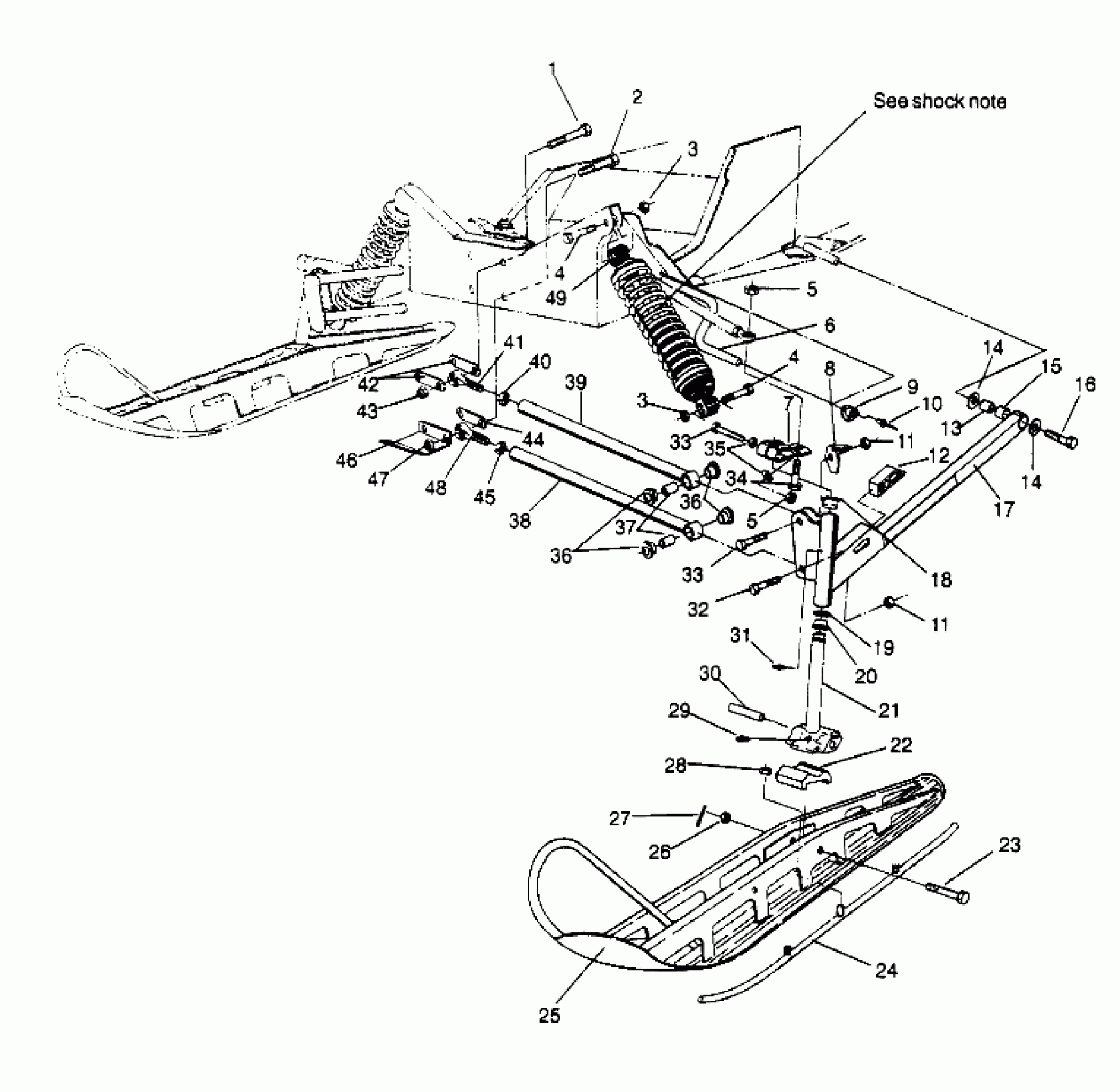

Polaris XLT - 0950756 FRONT SUSPENSION and SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
6
BAR,SWAY,9/16,BLK. (XLT)
5224476-067
Unavailable
7
Arm, Steering
5220326-067
Unavailable
8
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
8
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
9
BUSHING-SWAYBAR (XLT, SKS)
5410383
Unavailable
10
RIVET(50)
7621433
$1.49
11
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
11
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
12
SLIDE-SWAYBAR (XLT, SKS)
5410384
Unavailable
13
PIVOT-TRAILING ARM
5410382
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
BOLT(10)
7512557
$7.60
17
ARM,TRLG,LH,BLK. Substituted by 1822427
1822053-067
Unavailable
17
ARM,TRLG,RH,BLK. Substituted by 1822428
1822052-067
Unavailable
18
BUSHING-FLANGE
3573909
$2.39
19
WASHER SPECIAL(10)
7556509
$1.59
20
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
21
SPINDLE, BLK. (XLT, SKS)
6230073-067
Unavailable
22
STOP, RUBBER
5521276
Unavailable
23
BOLT(10)
7515462
$8.79
24
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
24
60 DEG,4"CARBIDE(STEEL SKI) (PT) (Pair)
2871288
$79.99
25
SKI WELD, BLK
1820332-067
Unavailable
26
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
27
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
30
BUSHING,PIVOT,(10)
5010158
$19.99
31
ZERK,FITTING,THREADED(10)
7080433
$1.49
32
BOLT(10) Substituted by 7515540
7515492
$4.62
33
BOLT(10) Substituted by 7517583
7515491
Unavailable
33
BOLT(10) Substituted by 7517583
7515491
Unavailable
34
BOLT(10)
7512404
$3.99
35
WASHER(10) Substituted by 7555832
7555851
Unavailable
36
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
36
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
37
BUSHING-RADIUS ROD,(10)
5010127
$7.99
38
ROD,RAD.LOW. (SKS)
1822123-067
Unavailable
38
ROD,RAD.LOW.(STORM) (XLT)
1822102-067
Unavailable
39
ROD,RAD.UP. (SKS)
1822121-067
Unavailable
39
ROD,RAD.UPPER(STORM) (XLT)
1822099-067
$40.32
40
NUT JAM(10)
7542520
$2.39
41
ROD END, RH Substituted by 7061010
7060155
Unavailable
42
STRAP,SPACER TOP
5211344
$7.27
43
NUT, LOCK,(10)
7542503
$10.39
44
STRAP,SPACER BOTTOM
5211345
$12.99
45
NUT-JAM(10)
7542711
$2.39
46
BRACE, PAN
5223997-067
Unavailable
47
NUT FLEX,(10)
7542703
Unavailable
48
ROD END,RH Substituted by 7061011 NOTE: When ordering shocks and parts, please check machine for type of shock installed.
7060156
Unavailable
49
RETAINER-TOP
5220225
$10.39
49
SPACER,SHOCK RETAINER(10)
5210953
$6.39
49
SPRING,COMP.,BLK.
7041261-067
$164.99
49
SHOCK,FR.SUSP.
7041285
Unavailable
